Brother MFC-L8850CDW Service Manual

3-172
Confidential
9.64 MP Paper Empty/Registration Front Sensor PCB ASSY

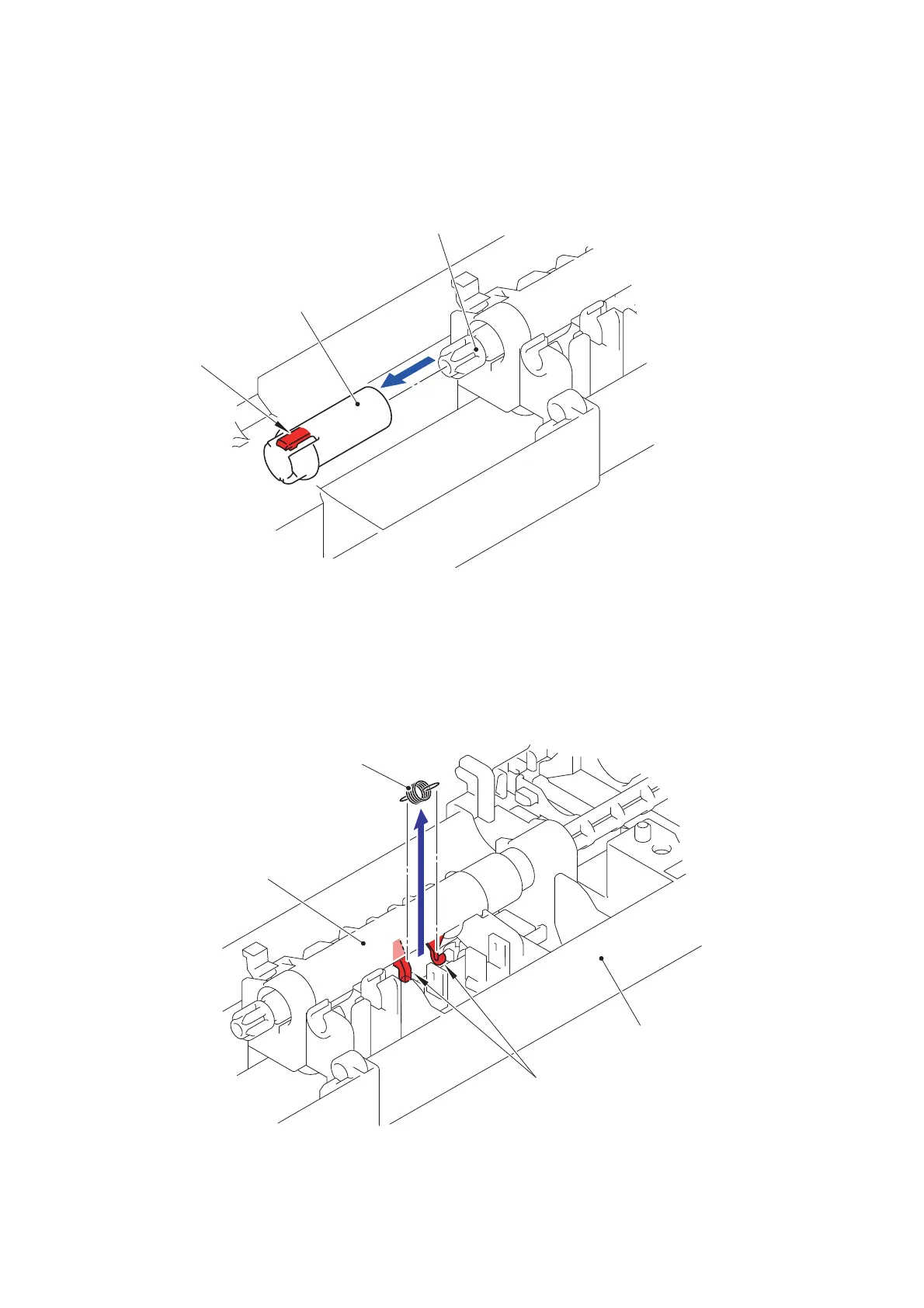

(1) Release the Hook and remove the MP separation roller bushing from the MP drive shaft.
Fig. 3-246
(2) Release the two Hooks and remove the MP registration front actuator spring from the MP
registration front actuator.
Fig. 3-247
Hook
MP separation roller bushing
MP drive shaft
MP registration front actuator spring
Hook
MP registration front actuator
MP upper cover ASSY
