3-60

Confidential

9.16 Back Cover Upper (Legal Model Only)

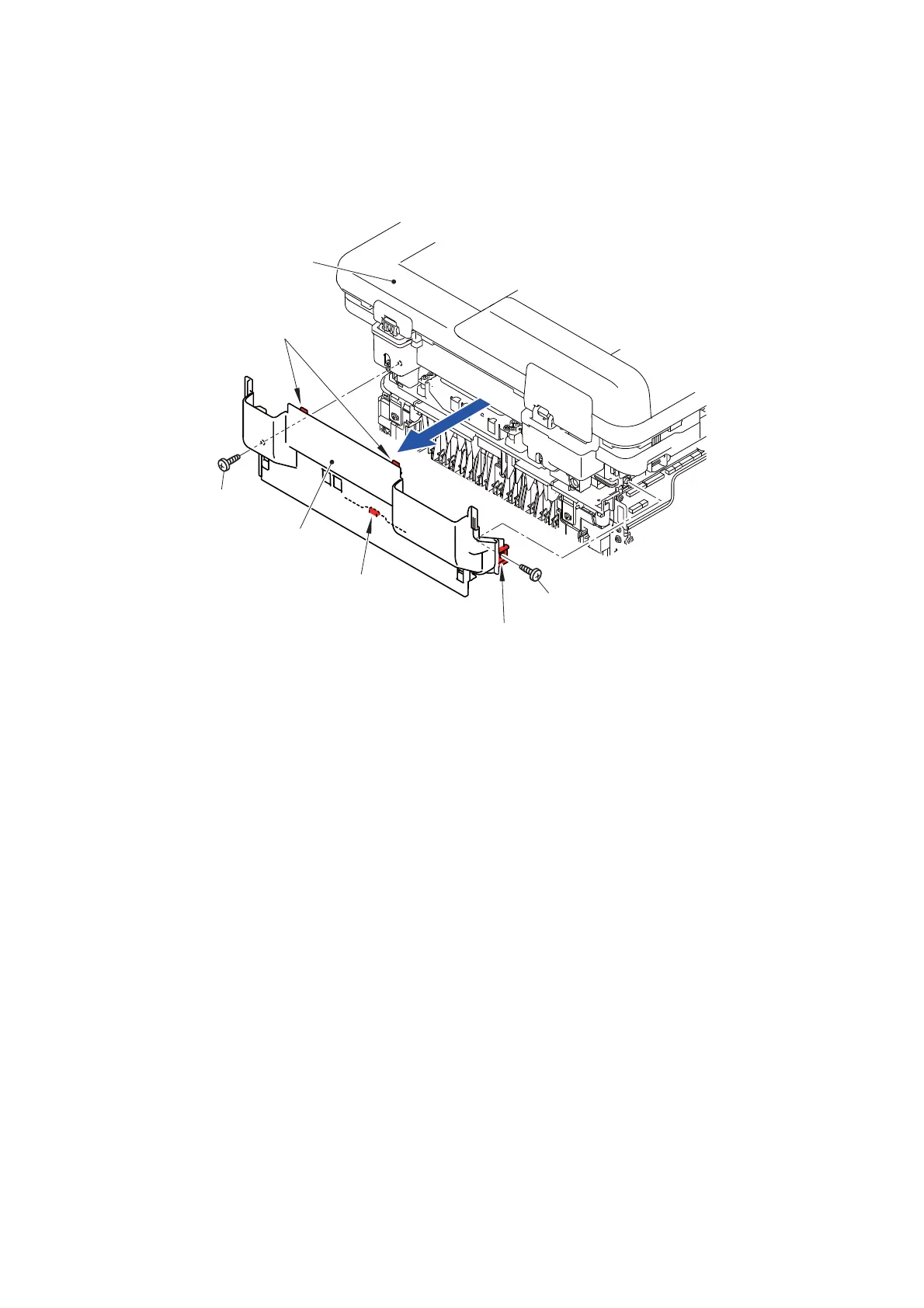

(1) Remove the two Taptite bind B M4x12 screws from the Back cover upper.

(2) Release the four Hooks and remove the Back cover upper from the Main body.

Fig. 3-53

Taptite bind B M4x12

Back cover upper

Hook

Hook

Hook

Taptite bind B M4x12

Main body
