Brother MFC-L8850CDW Service Manual

3-54
Confidential
9.12 Front Cover
(1) Remove the Front cover damper spring from the Spring hook of the Main frame R ASSY.
(2) Remove the Taptite B 3x6 screw and remove the Front cover damper spring from the
Front cover.

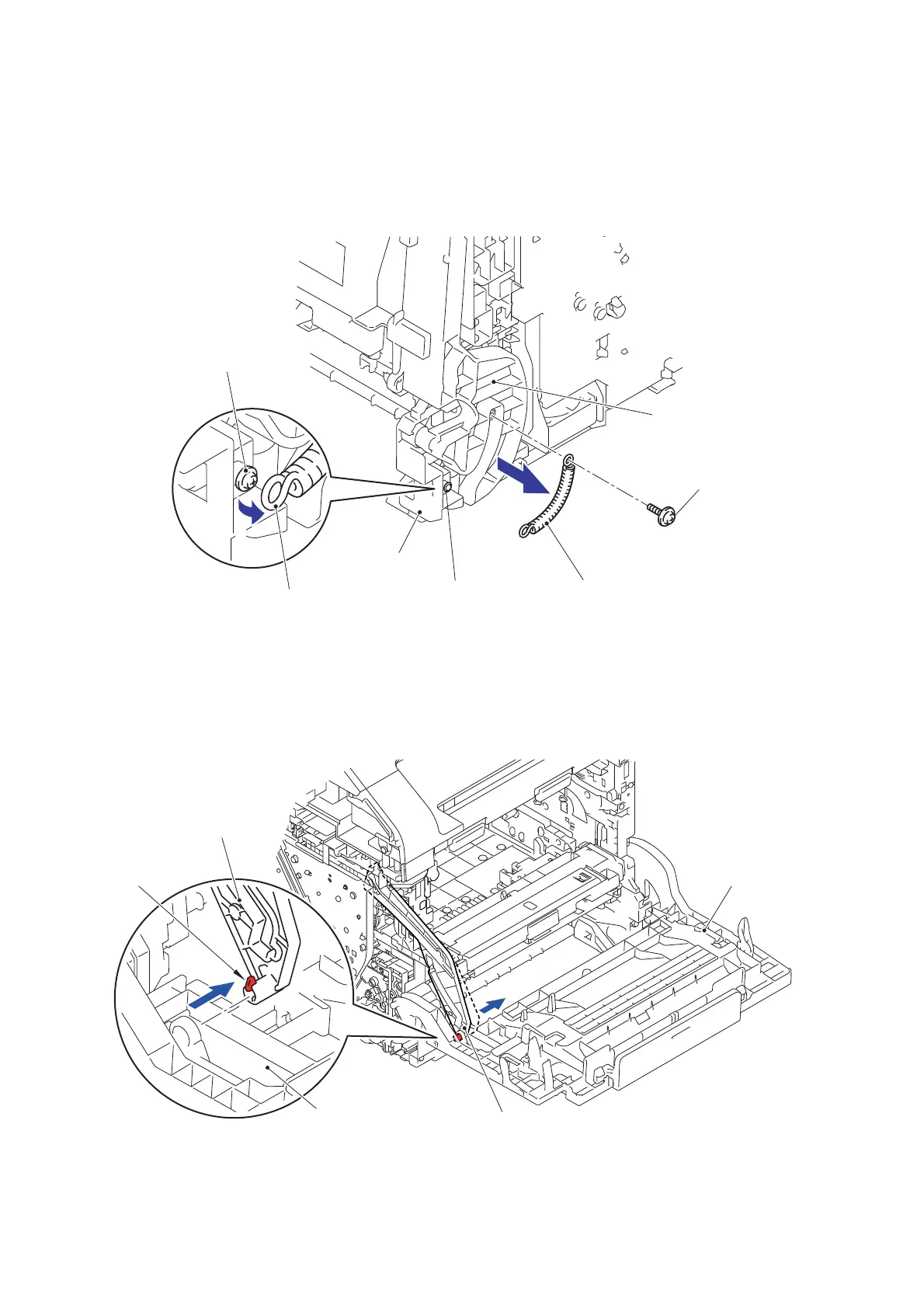

Fig. 3-42
(3) Open the Front cover.
(4) Release the Hook and remove the Forced develop release link from the Front cover.
Fig. 3-43
Front cover
<Front side>
1
2
Front cover damper spring
Taptite B 3x6
Spring hook
Spring hook
Front cover damper spring
Main frame R ASSY
Front cover
Hook
Forced develop release link
Forced develop release link
Front cover
