9.43 Back Cover Upper (A4 Model Only)
(1) Remove the four Taptite bind B M4x12 screws from the Back cover upper.
(2) Release the two Hooks and remove the Back cover upper from the Main body.

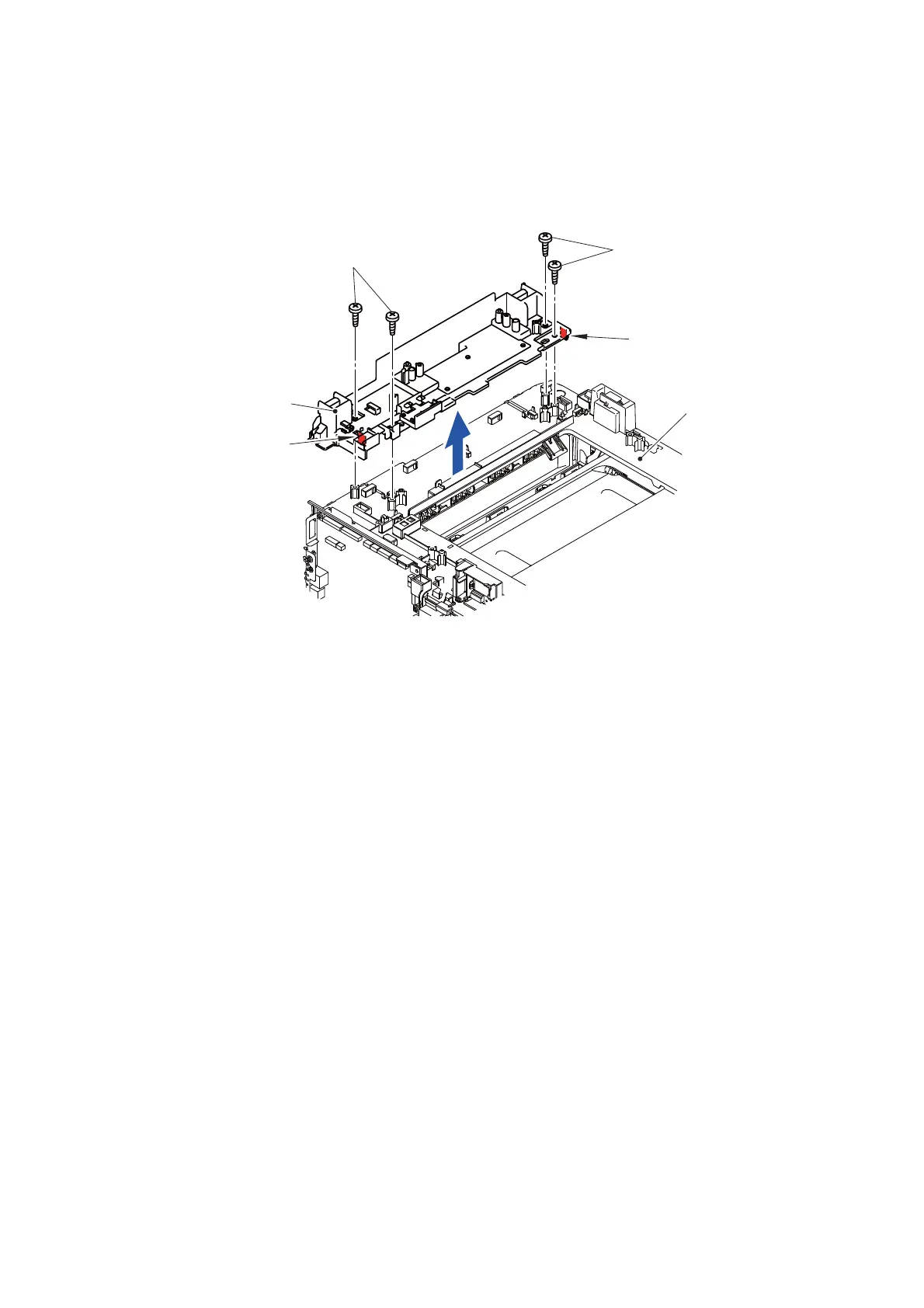

Fig. 3-181
Taptite bind B M4x12
Taptite bind B M4x12
Back cover upper
Hook
Hook
Main body
<Front side>
