Brother MFC-L8850CDW Service Manual

3-33
Confidential
9.3 Fuser Cover ASSY

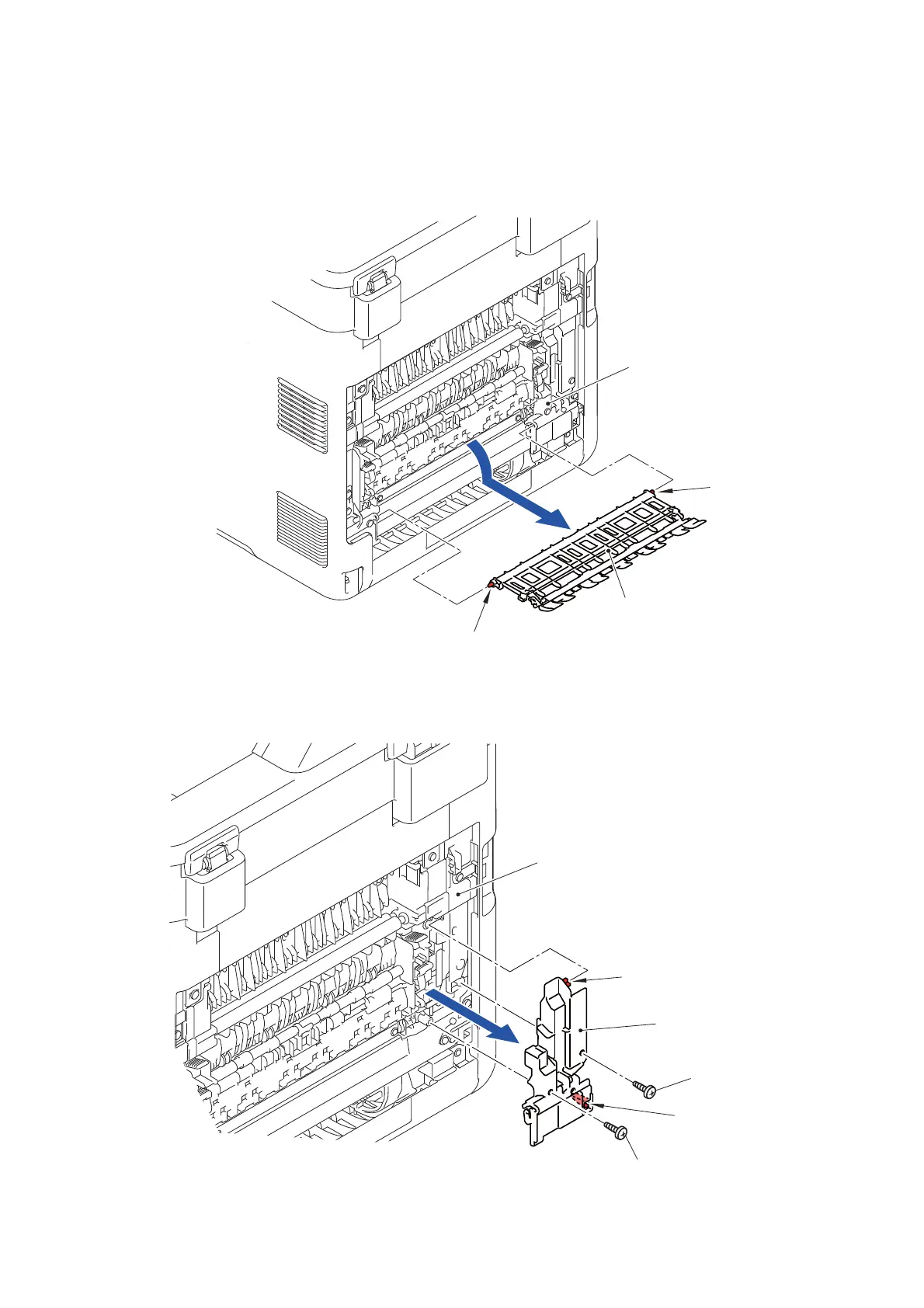

(1) Open the Back flapper holder.
Release the two Pins and remove the Back flapper holder from the Main body.
Fig. 3-8
(2) Remove the two Taptite bind B M4x12 screws from the Fuser cover L.
(3) Release the one Hook and one Pin and remove the Fuser cover L from the Main body.
Fig. 3-9
Back flapper holder
Pin
Main body
Pin
<Back side>
Taptite bind B
Fuser cover L
Hook
Pin
Main body
M4x12
Taptite bind B M4x12
<Back side>
