9.10 MP Cover ASSY/MP Paper Guide ASSY
(1) Close the Front cover.
(2) Open the MP cover ASSY.

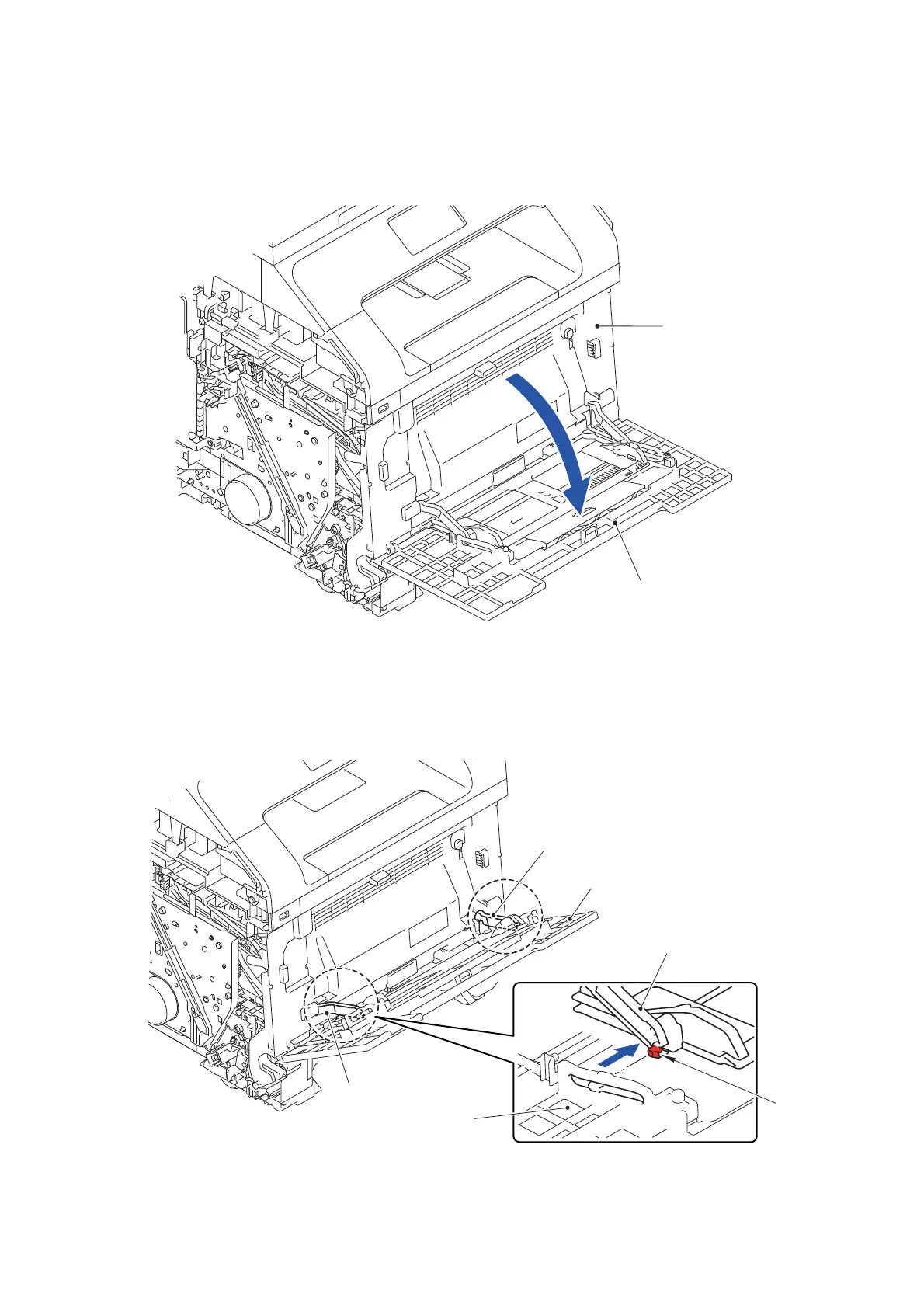

Fig. 3-36
(3) Release the Pin of the MP link L from the MP cover ASSY.
(4) Release the Pin of the MP link R from the MP cover ASSY.
Fig. 3-37
MP cover ASSY
Front cover
Pin
MP cover ASSY
MP link R
MP link L
MP link L/MP link R
MP cover ASSY
