3-53

Confidential

9.11 MP Link L/MP Link R

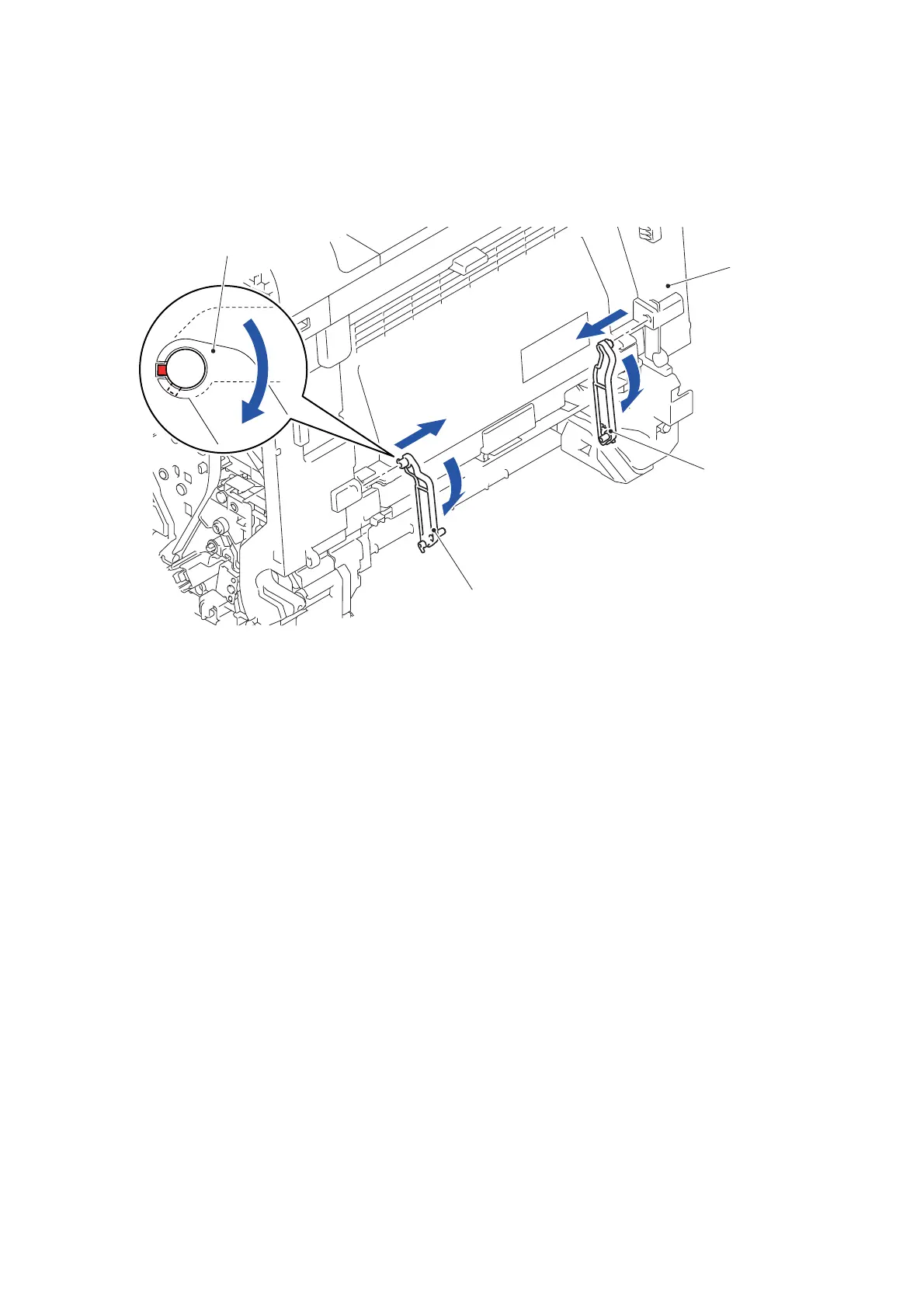

(1) Remove the MP link L from the Front cover.

(2) Remove the MP link R from the Front cover.

Fig. 3-41

MP link L

MP link R

MP link L

1b

1a

2b

2a

Front cover
