Brother MFC-L8850CDW Service Manual

3-115
Confidential

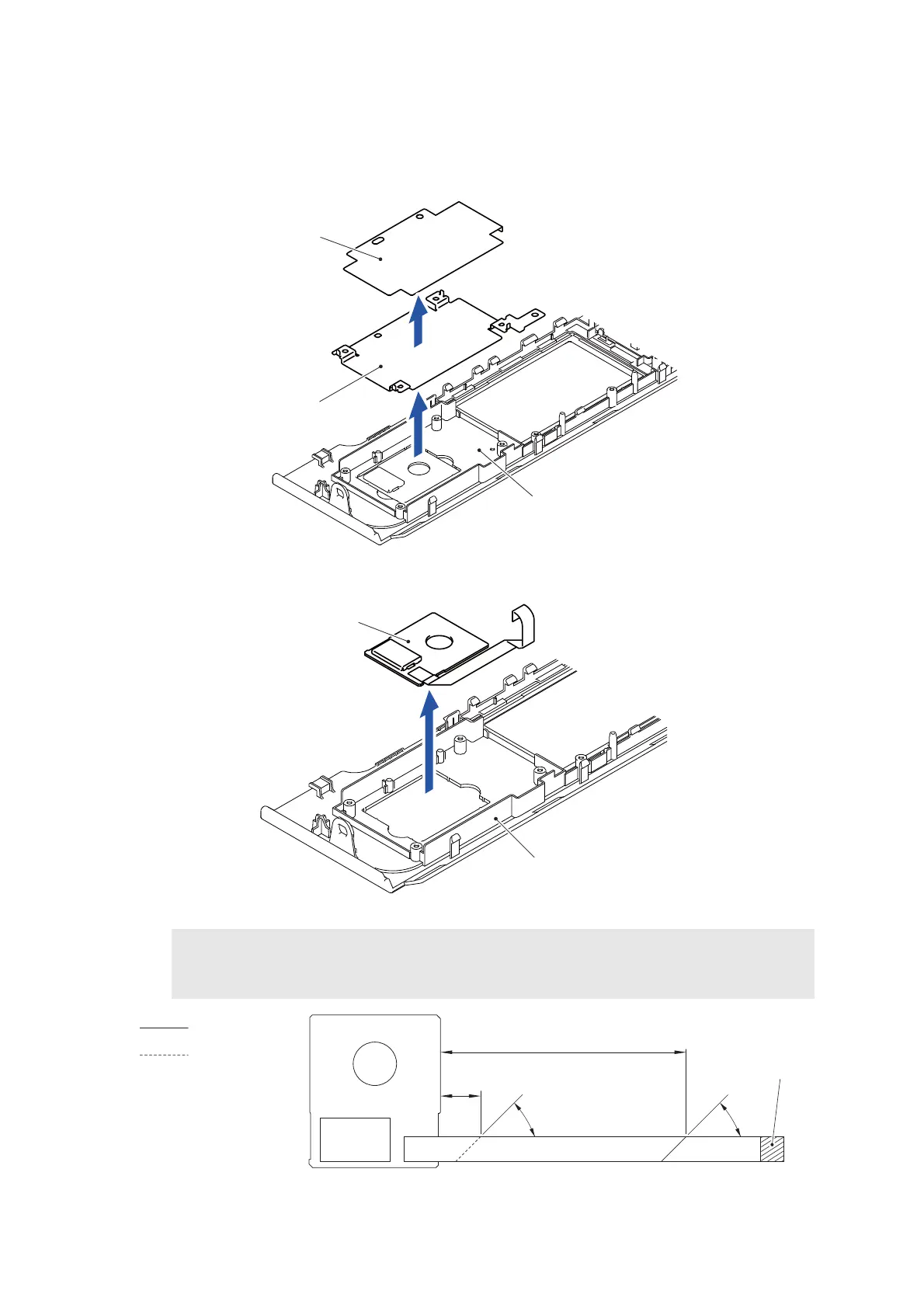

9.37 NFC PCB ASSY (Model with NFC only)/Panel Cover ASSY
(1) Remove the PCB insulation sheet from the Shield plate base.
(2) Remove the Shield plate base from the Panel cover ASSY.
Fig. 3-148
(3) Remove the NFC PCB ASSY from the Panel cover ASSY.
Fig. 3-149
Fig. 3-150
Assembling Note:
When the NFC PCB ASSY are replaced, be sure to fold and assemble the NFC PCB ASSY
flat cable as shown in the figure.
PCB insulation sheet
1
2
Panel cover ASSY
Shield plate base
NFC PCB ASSY
Panel cover ASSY
Fold down FFC
Fold up FFC
Supporting plate
45°
13±2 mm
45°
73±2 mm
along with the
dotted line
along with the
solid line
