3-116
Confidential
9.38 First Side CIS Unit/First Side CIS Flat Cable
(1) Remove the six Taptite bind B M4x12 screws to remove the Document scanner top cover
ASSY from the Document scanner unit.

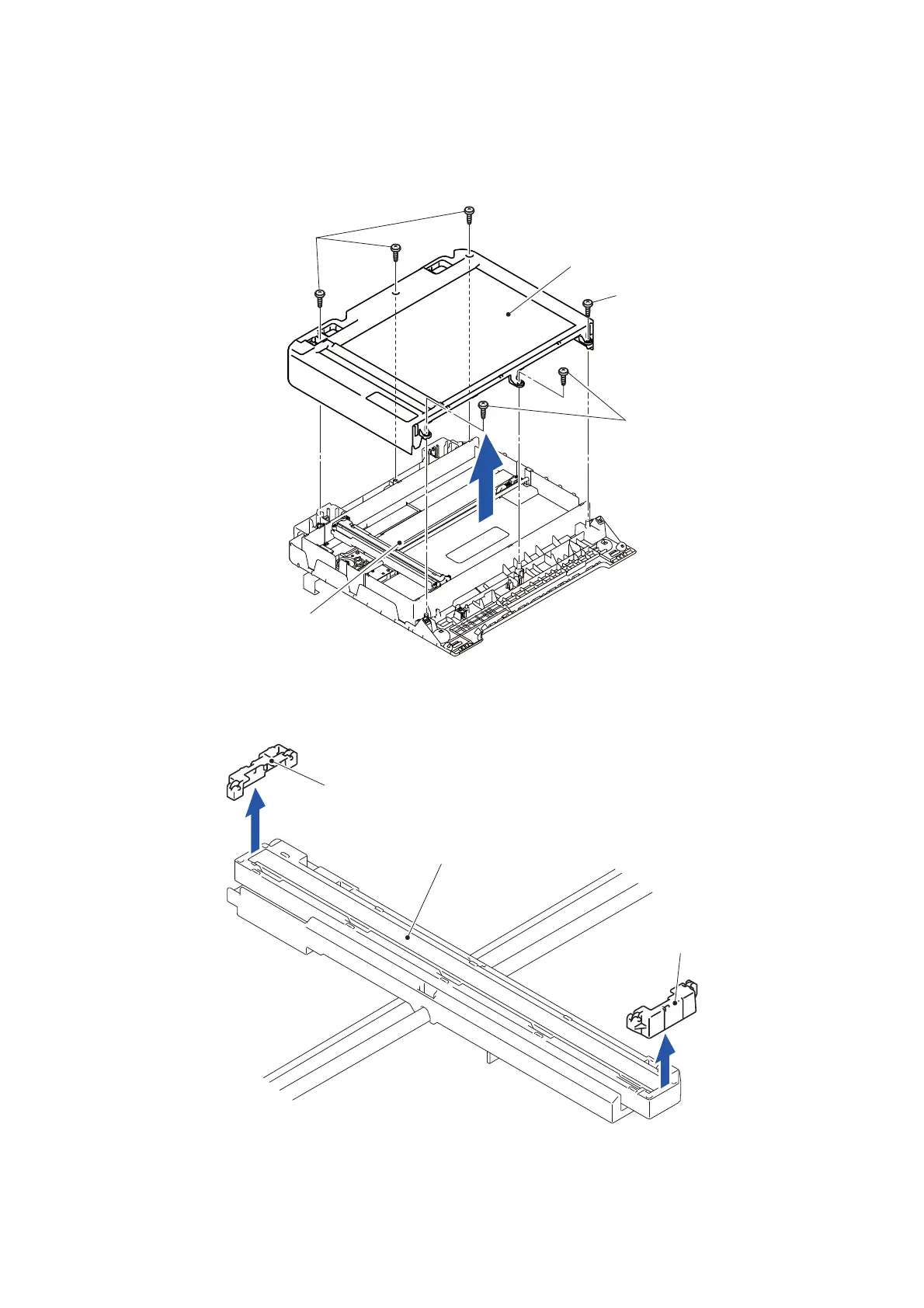

Fig. 3-151
(2) Remove the CIS guide L and CIS guide R from the First side CIS unit.
Fig. 3-152
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
Document scanner unit
Document scanner top cover ASSY
First side CIS unit
CIS guide R
CIS guide L
