Brother MFC-L8850CDW Service Manual

3-161
Confidential
9.60 Registration Mark Sensor Unit
(1) Release the wiring of the Registration mark sensor unit.
(2) Remove the two Taptite bind B M3x10 screws from the Registration mark sensor unit.
Release the two Bosses and remove the Registration mark sensor unit from the Main body.

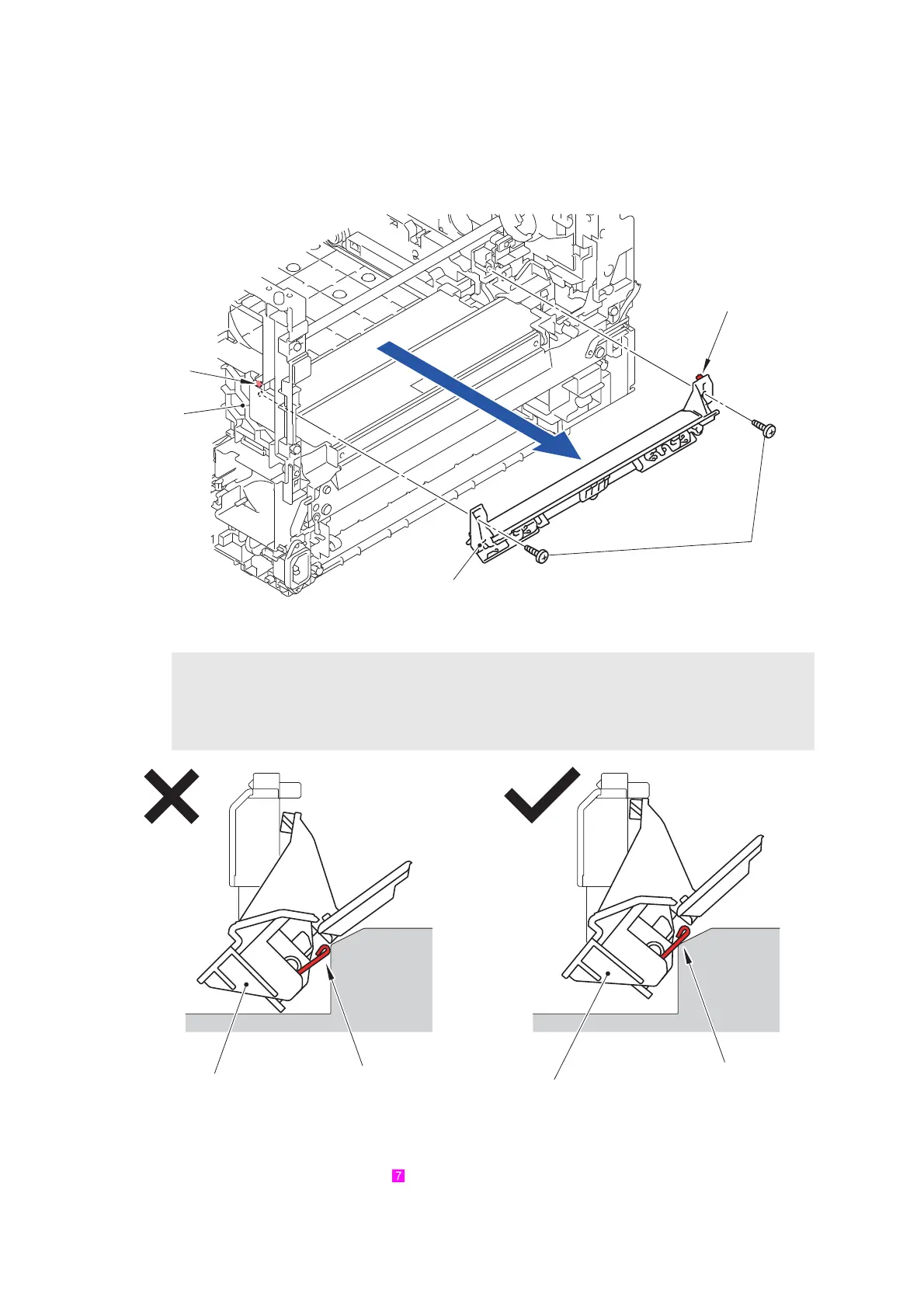

Fig. 3-225
Fig. 3-226
Harness routing: Refer to “ Registration Mark Sensor Unit”
Assembling Note:
- When attaching the Registration mark sensor unit, make sure that the Registration
ground spring is placed as shown in the figure.
- After assembling the Registration mark sensor unit, make sure that the Front chute
flapper moves.
Taptite bind
Boss
Main body
B M3x10
Boss
<Back side>
Registration mark sensor unit
Front chute flapper
Front chute flapper
If the Registration ground spring is
dropped from the step, the Registration
mark sensor unit cannot be assembled.
Assemble the Registration mark
sensor unit as keeping the state
in which the Registration ground
spring gets upon on the step.

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
