Brother MFC-L8850CDW Service Manual

3-14
Confidential
Harness colors may be changed for any reason.

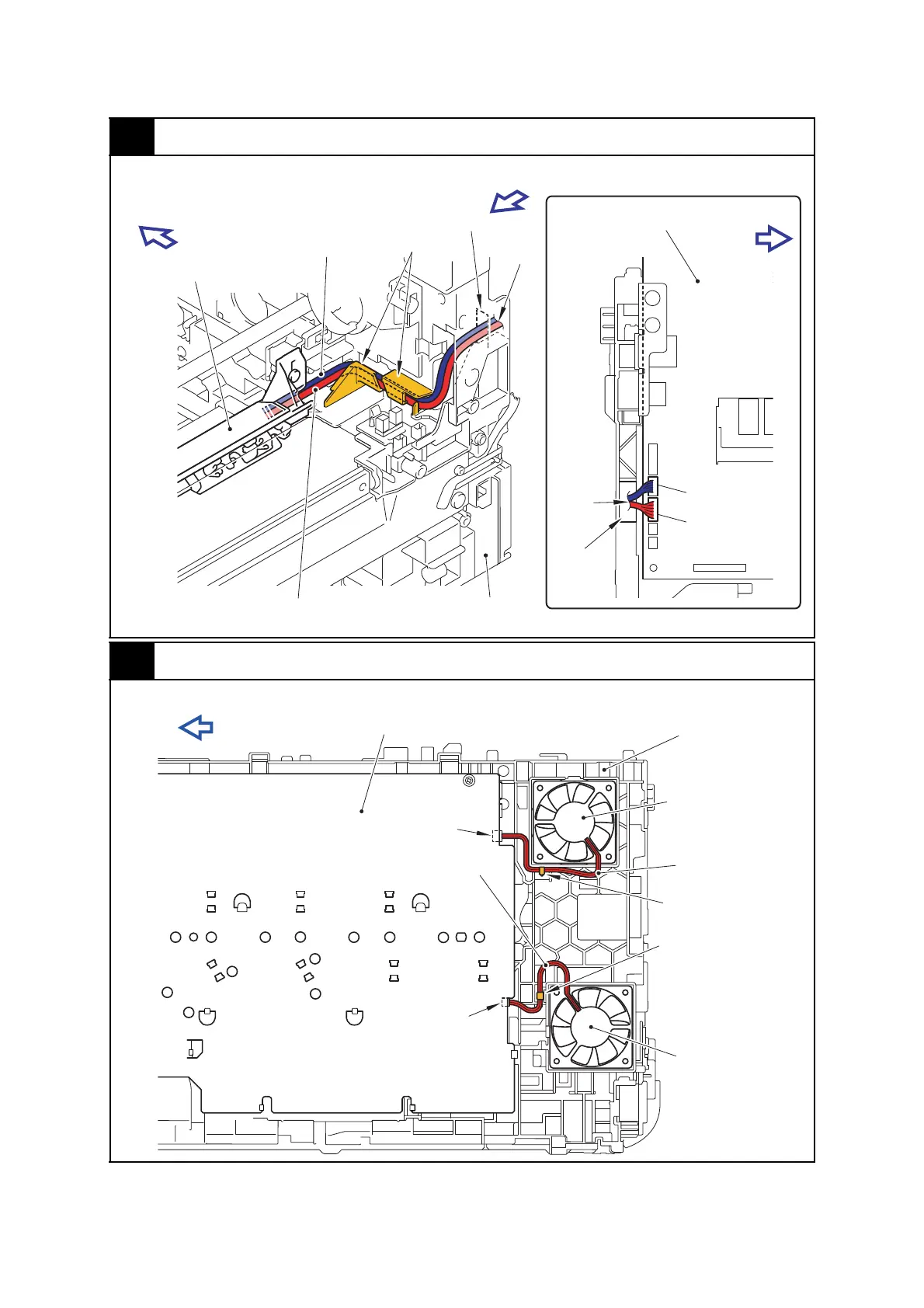

7 Registration Mark Sensor Unit
8 Fuser Fan, Power Fan
Front
Front
A view
<A view>
“A”
CN43
CN44
“A”
Main PCB ASSY
Hook
Hole
Hole
Main frame L ASSY
Registration mark sensor unit
Registration mark sensor L PCB harness
Registration mark sensor
R PCB harness
(RD, WH, BL)
(GY)
Front
Hook
CN5
CN4
High-voltage power supply PCB ASSY
Main frame R ASSY
Fuser fan
Power fan
Hook
Fuser fan harness
(RD, WH, BK)
Power fan harness
(RD, BK)

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
