Brother MFC-L8850CDW Service Manual

3-15
Confidential
Harness colors may be changed for any reason.

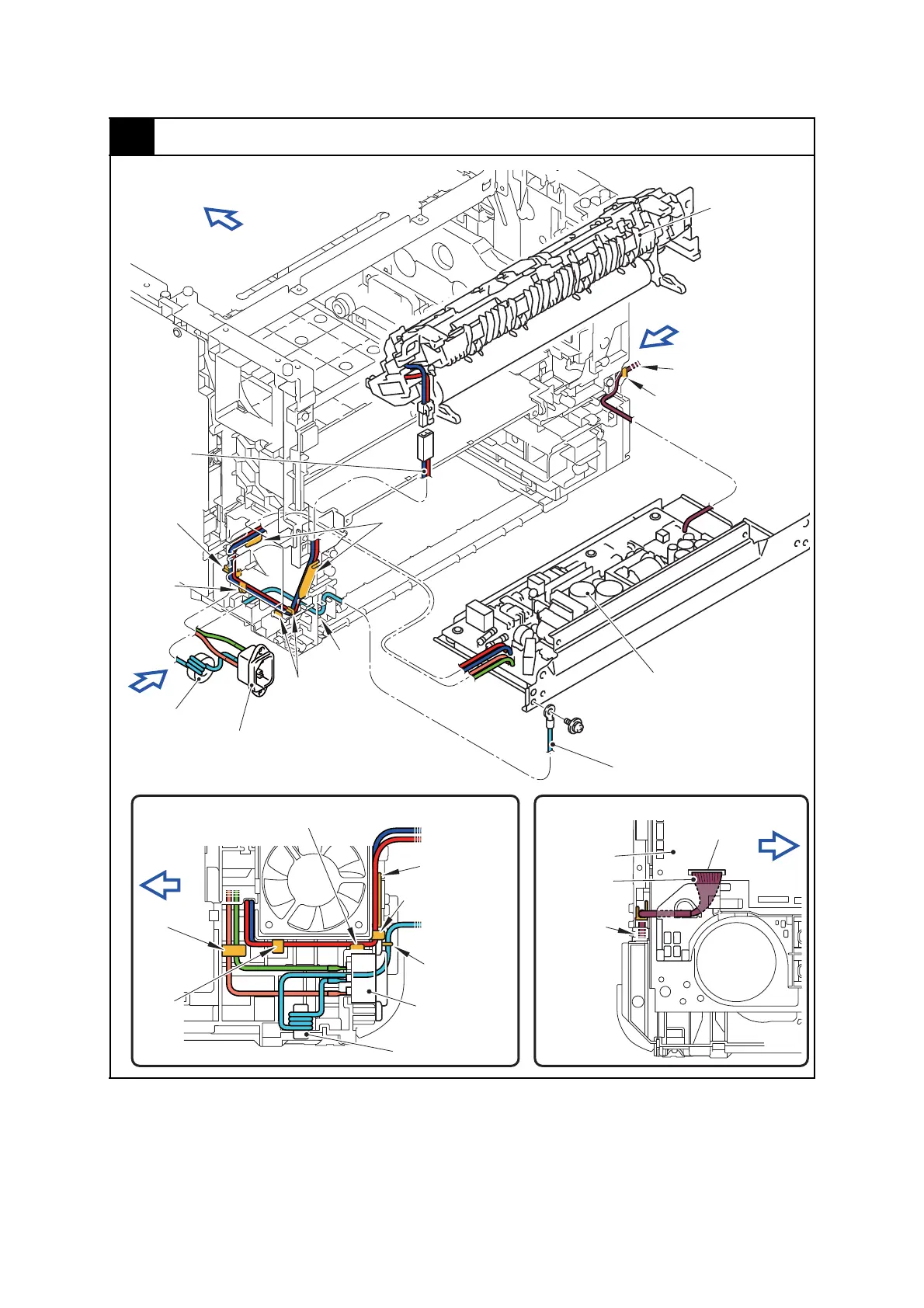

9 Low-voltage Power Supply PCB Unit
Front
A view
B view
<A view> <B view>
Front
Front
CN40
“A”
“A”
Hook
Hook
Hook
Hook
Hole
Hook
Hook
Hook
Hook
Main
Core
Fuser unit
Guide
Guide
LVPS-main
harness ASSY
FG harness of the
Inlet harness ASSY
Inlet harness ASSY
Inlet harness
ASSY
Low-voltage power
supply PCB unit
PCB ASSY
Core
LVPS-heater
harness ASSY
Hook

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
