Brother MFC-L8850CDW Service Manual

3-16
Confidential
Harness colors may be changed for any reason.

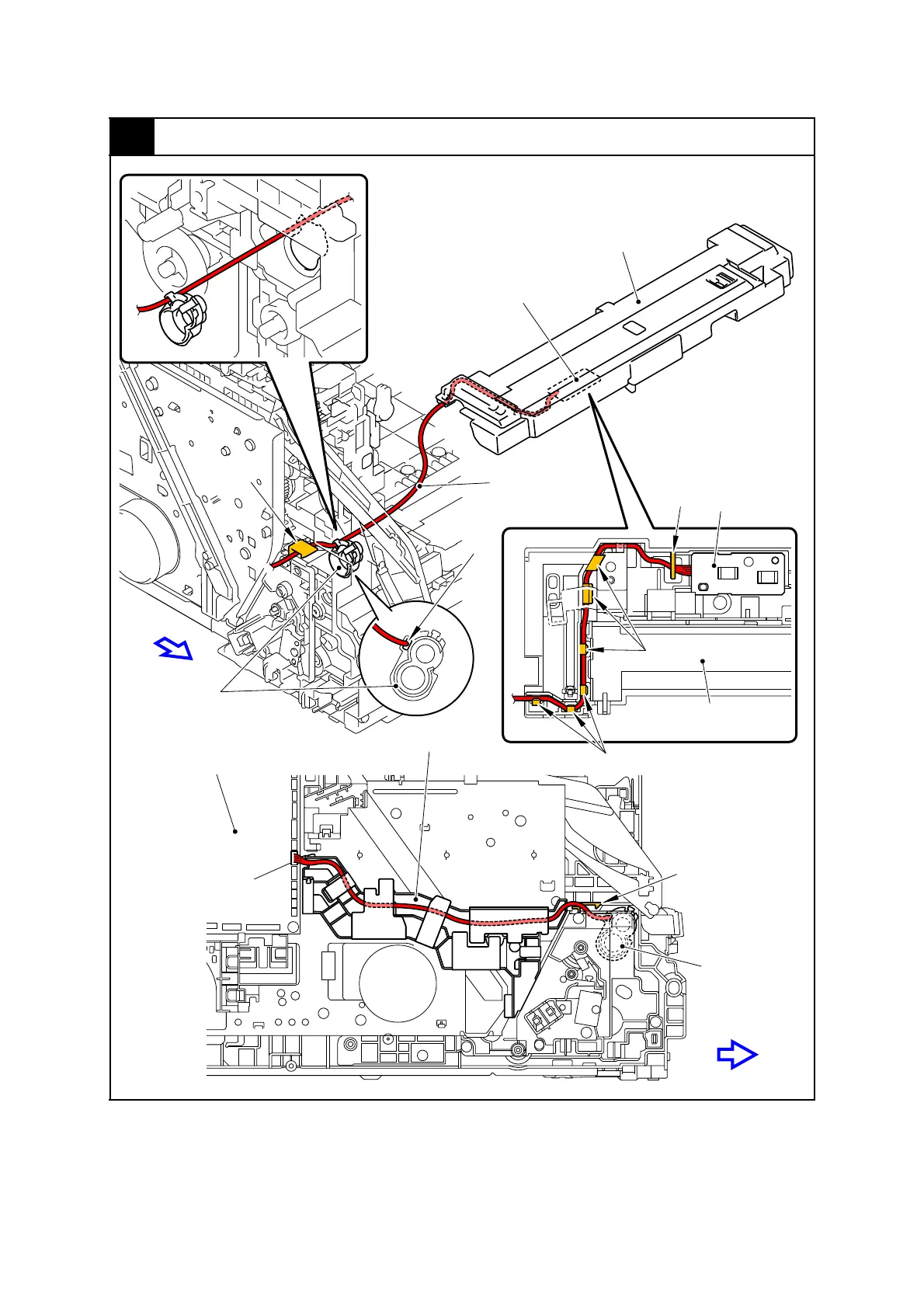

10 MP Paper Empty/Registration Front Sensor PCB ASSY
Front
Front
Hook
Hook
Hook
MP upper cover ASSY
MP upper cover ASSY
MP paper empty/
registration front
MP paper empty/
registration front sensor PCB ASSY
PF cable rack
Registration/pinch
roller gear bushing
Registration/pinch
roller gear bushing
Main PCB ASSY
CN14
MP sensor harness
ASSY
(RD, WH, BL, YL)
Hole
Hook
sensor PCB ASSY
Hook
