Brother MFC-L8850CDW Service Manual

3-17
Confidential
Harness colors may be changed for any reason.
11 Paper Feed Unit
Front
Front
Hook
Hook
Hook
Hook
Hole
“A”
“C”“B”
“A”
“B”
“C”
CN13
CN15
CN17

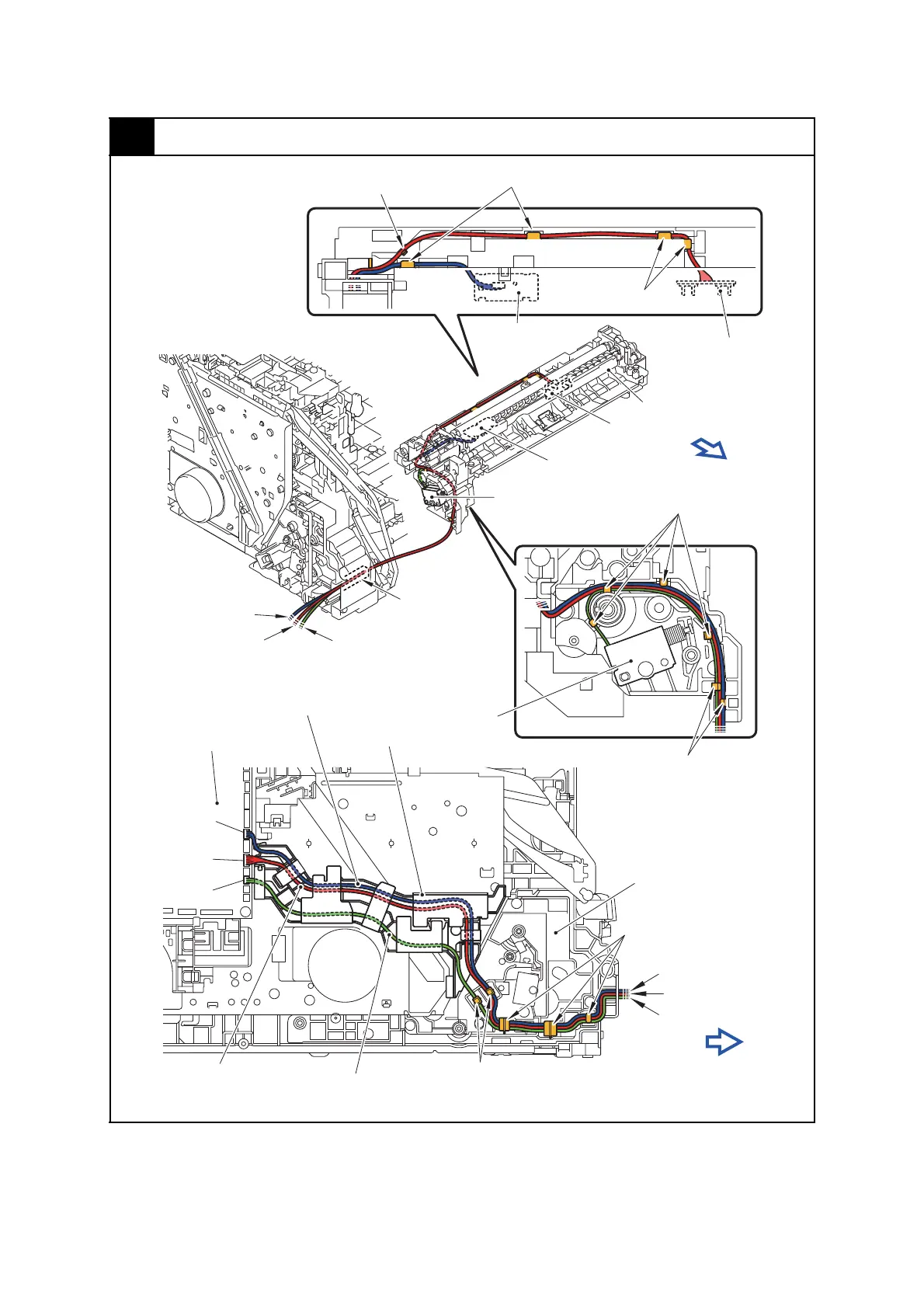

Paper feed unit
Main drive unit
Main PCB ASSY
T1 paper feed
sensor PCB ASSY
T1 paper feed
sensor PCB ASSY
Registration front/
rear sensor PCB ASSY
Registration front/
rear sensor
PCB ASSY
MP solenoid
MP solenoid
Hook
PF cable rack
T1 paper feed sensor
harness ASSY (WH)
Registration front/rear
sensor harness ASSY
MP solenoid
(RD, WH, BL, YL)
harness (BK)
Hook
Hook
