Brother MFC-L8850CDW Service Manual

3-100
Confidential
9.29 Document Feed Roller ASSY 2
(1) Remove the three Taptite cup B M3x10 screws from the Lower ADF chute.
(2) Release all the wiring from the Document cover.
(3) Release the Hook and remove the Lower ADF chute from the Document cover.

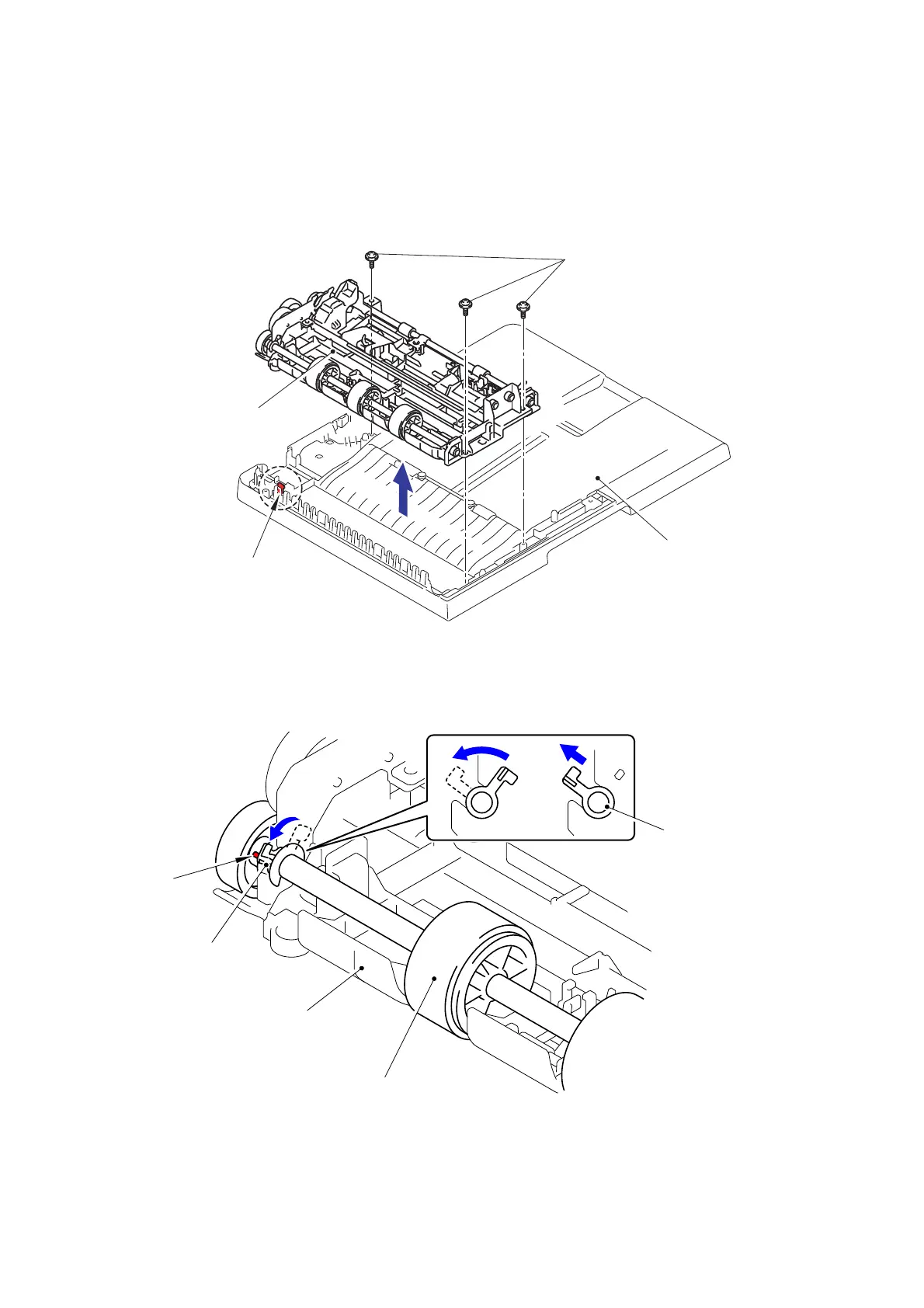

Fig. 3-120
(4) Release the Pin of the Conductive bushing and rotate it to the position shown in the figure.
Fig. 3-121
Taptite cup B M3x10
Lower ADF chute
Hook
Document cover
Pin
Conductive bushing
Conductive bushing
4a
4b
Document feed roller ASSY 2
Lower ADF chute
