Brother MFC-L8850CDW - ADF Unit;Hinge ASSY L;Hinge R;Hinge R Support

3-61
Confidential
9.17 ADF Unit/Hinge ASSY L/Hinge R/Hinge R Support
■
A4 model
(1) Remove the Screw bind M3x8 screw and remove the Panel FG harness from the Main
shield cover plate ASSY.
(2) Remove the three Screw bind M3x8 screws and remove the Main shield cover plate
ASSY from the Main body.

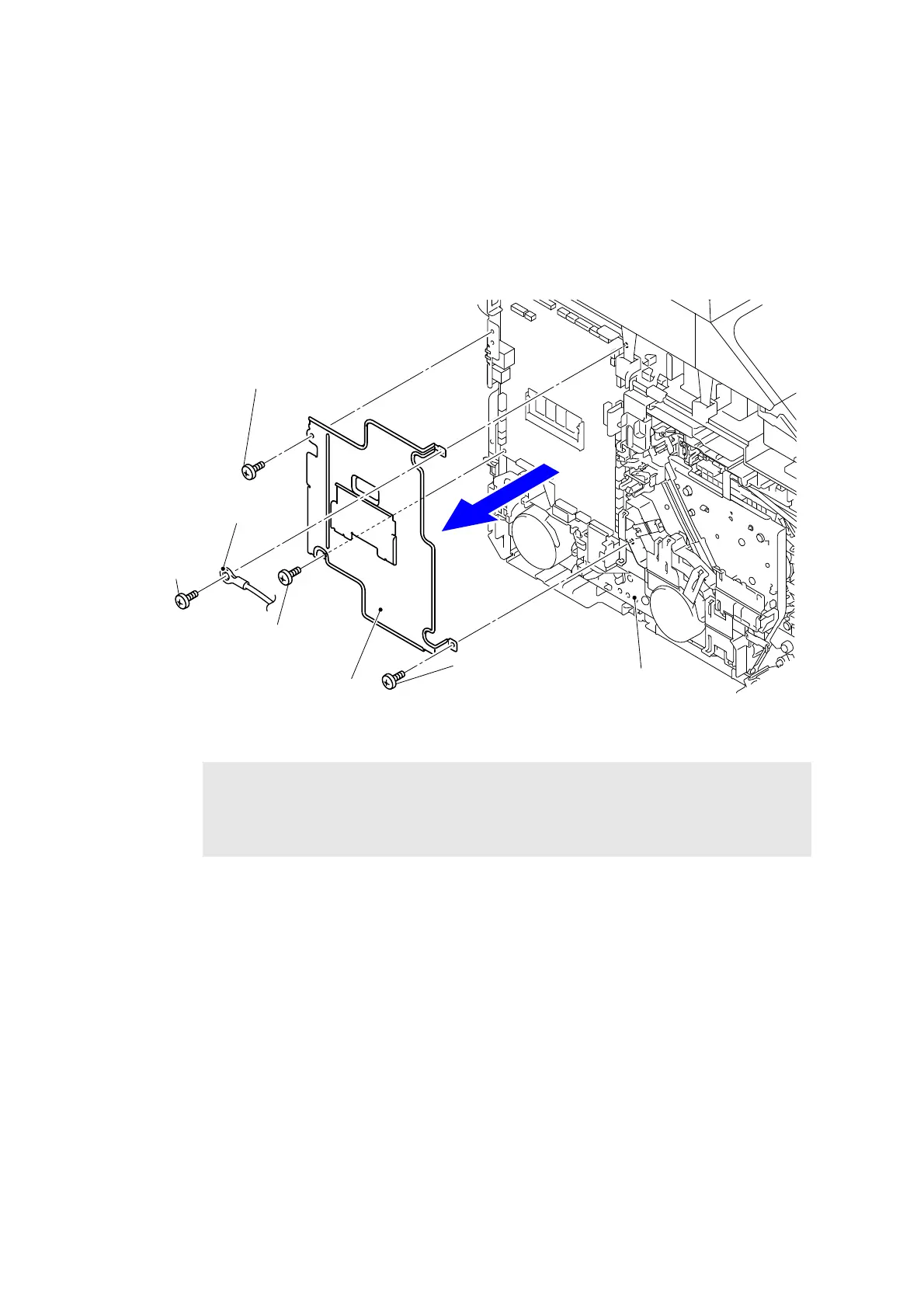

Fig. 3-54
Note:
Note that the tightening torque is different between the upper side and lower side of
the Screw bind M3x8.
Upper side: 0.5±0.05 N
·m
Lower side: 0.8±0.1 N
·m
Main body
Main shield cover plate ASSY
Panel FG harness
<Left side>
(Upper side)
(Lower side)
(Lower side)
Screw bind M3x8
Screw bind M3x8
Screw bind M3x8
Screw bind M3x8
