Brother MFC-L8850CDW Service Manual

3-13
Confidential
Harness colors may be changed for any reason.
* Center thermistor has a black and blue connectors (230V models only). The black connector may be
connected to the blue insertion port and vice versa.

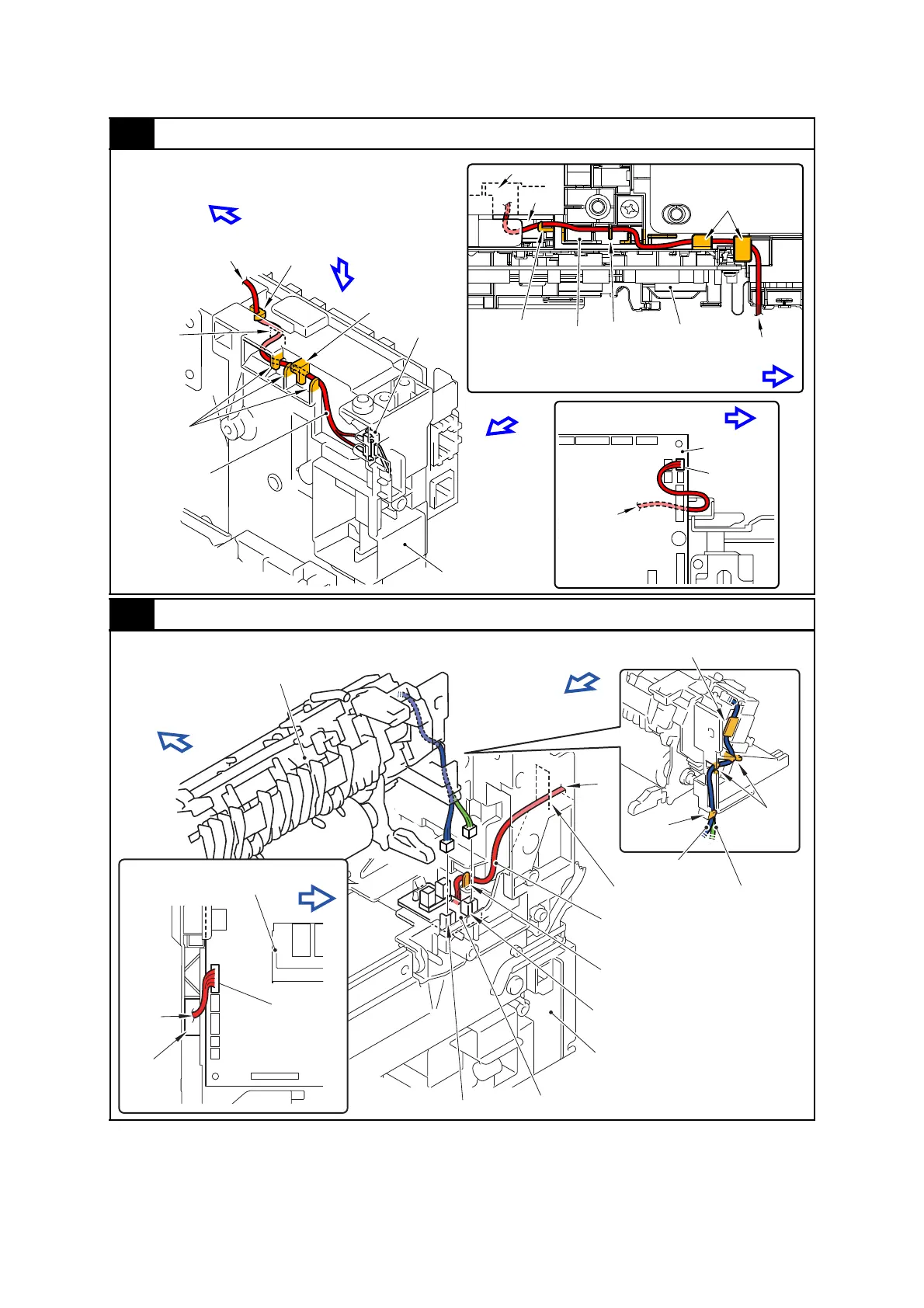

5 Back Cover Sensor ASSY
6 Eject Sensor PCB ASSY, Fuser Unit
Front
Front
“A”
“B”
Hook
Hole
Hook
CN3
A view
<A view>
Main frame L ASSY
Back cover
sensor harness
Back cover
sensor ASSY
Main PCB
(BL)
Hole C
ASSY
<B view>
B view
Front
“A”
“B”
Hook D
Hook
Hook
Paper
eject
ASSY
Joint cover
base ASSY
Hole C
Hook D
Hook
Front
A view
<A view>
Main PCB ASSY
Eject sensor PCB ASSY
*
Main frame L ASSY
Eject sensor harness ASSY
(RD, WH, BL)
“A”
Hole
Front
“A”
Hole
Fuser unit
CN1
CN2
Hook
Guide
Side thermistor
harness
Cutout
harness
*
CN42
Center thermistor

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
