3-140
Confidential

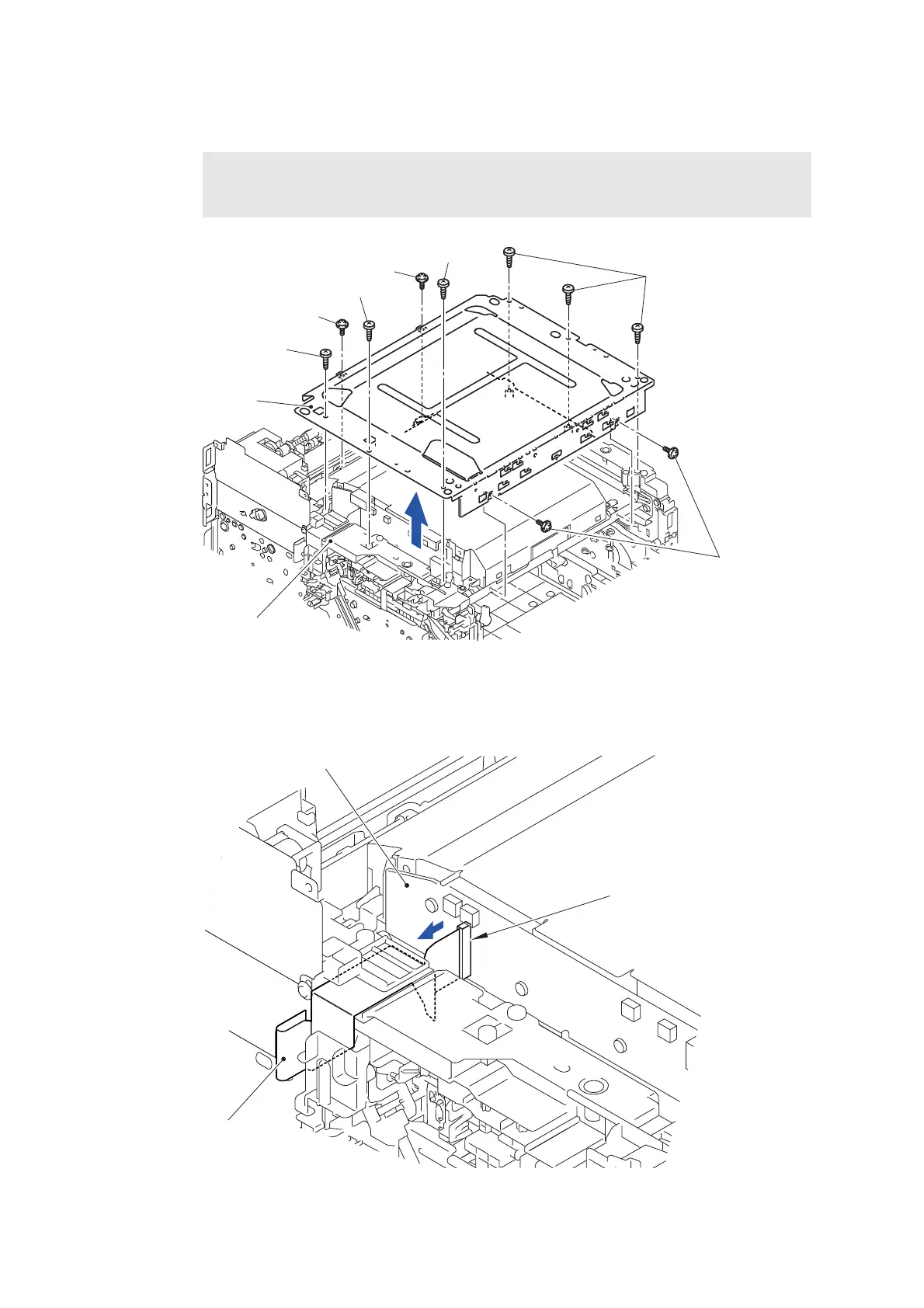

(4) Remove the six Taptite bind B M4x12 screws and four Taptite cup S M3x6 SR screws,
and remove the Scanner cover plate from the Main body.
Fig. 3-191
(5) Disconnect the Laser unit flat cable from the Laser unit and release the wiring.
Fig. 3-192
Assembling Note:
When assembling the six screws of the Taptite bind B M4x12, be sure to assemble
them in the order shown in the figure.
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
1
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
Taptite cup
S M3x6 SR
Main body
2
3
6
5
4
Scanner cover plate
Taptite bind B M4x12
<Front side>
Laser unit flat cable
Laser unit
CN1
<Front side>
