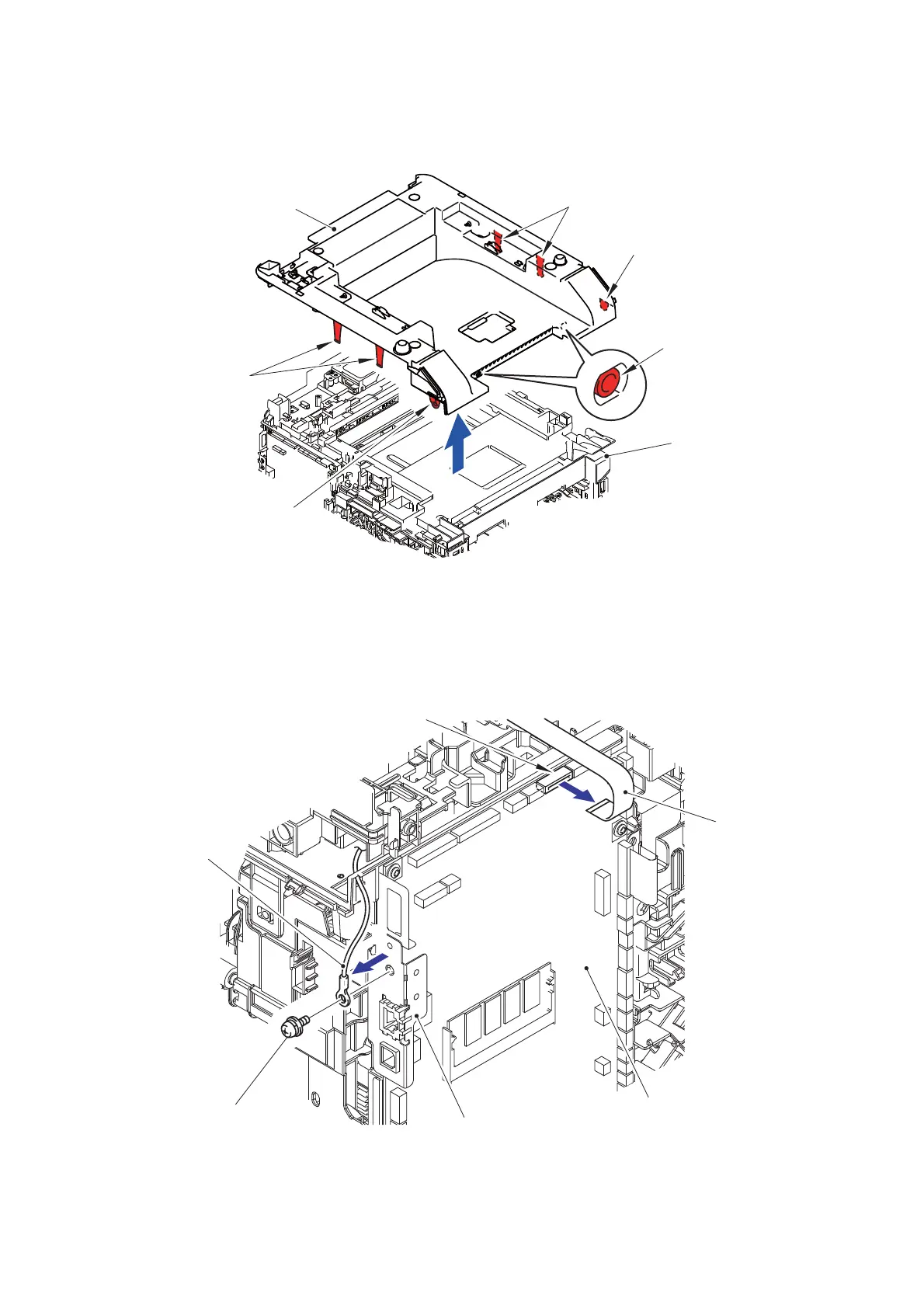

(3) Release the eight Hooks and remove the Joint cover top from the Main body.
Fig. 3-165
■ Legal model
(1) Remove the Screw pan (S/P washer) M3.5x6 screw and remove the Modem FG harness
from the Main PCB plate.
(2) Disconnect the Modem flat cable (CN28) from the Main PCB ASSY.
Fig. 3-166
Hook
Hook
Hook
Hook
Hook
Joint cover top
Main body
Screw pan (S/P washer) M3.5x6
Modem FG harness
CN28
Main PCB ASSY
1
2
Modem
<Back side>
flat cable
Main PCB plate
