3-72
Confidential

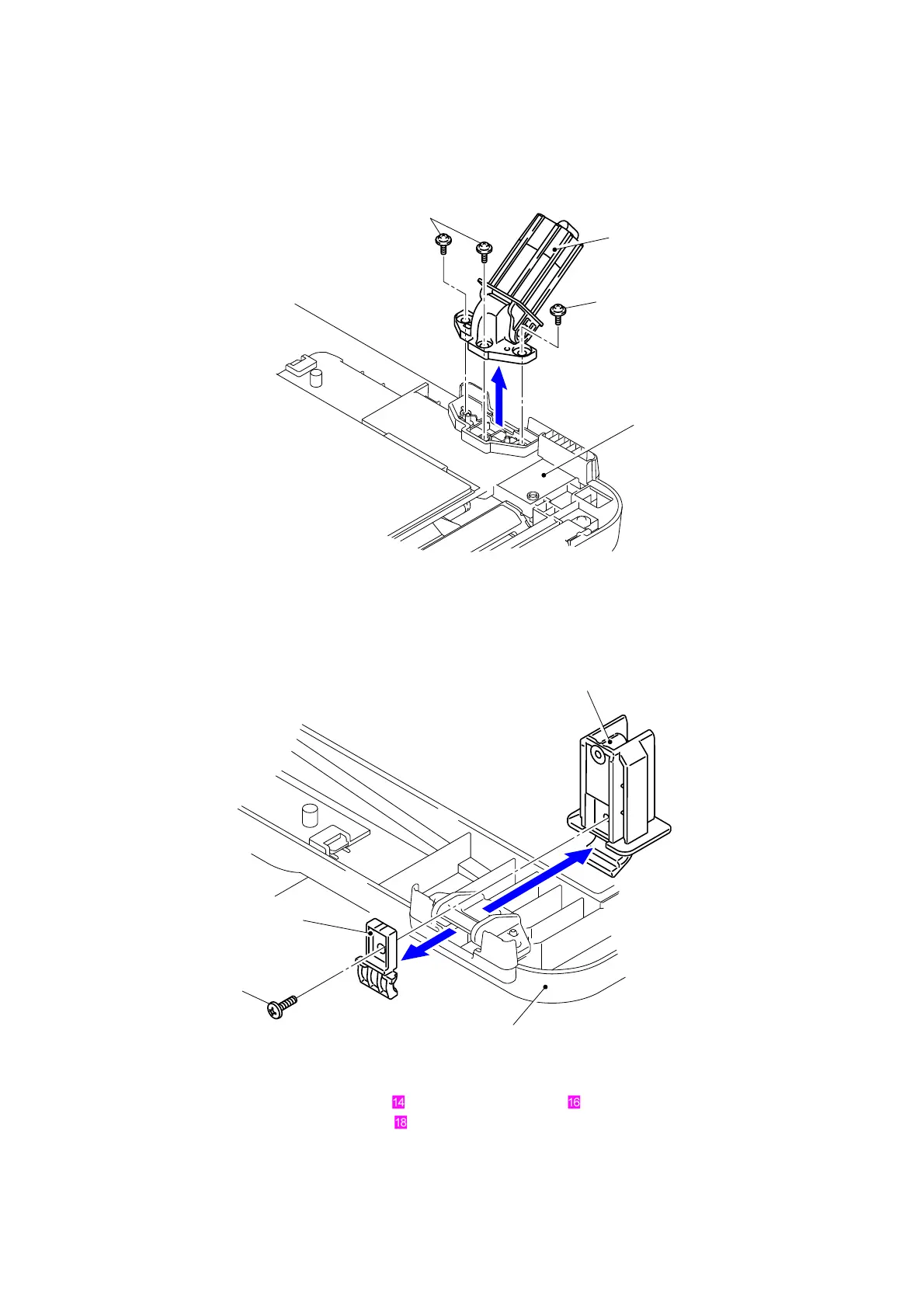

(19) Turn the ADF unit upside down.
(20) Remove the three Taptite cup S M3x12 screws and remove the Hinge ASSY L from the
ADF unit.
Fig. 3-73
(21) Remove the Taptite cup B M3x10 screw and remove the Hinge R and Hinge R support
from the ADF unit.
Fig. 3-74
Harness routing: Refer to “ ADF (Legal model)”, “ Document Scanner Unit (Legal
model)”, “ Control Panel ASSY (Legal model)”
Taptite cup S M3x12
Taptite cup S M3x12
Hinge ASSY L
ADF unit
Taptite cup B M3x10
Hinge R
Hinge R support
ADF unit
To Next Page
