3-65
Confidential

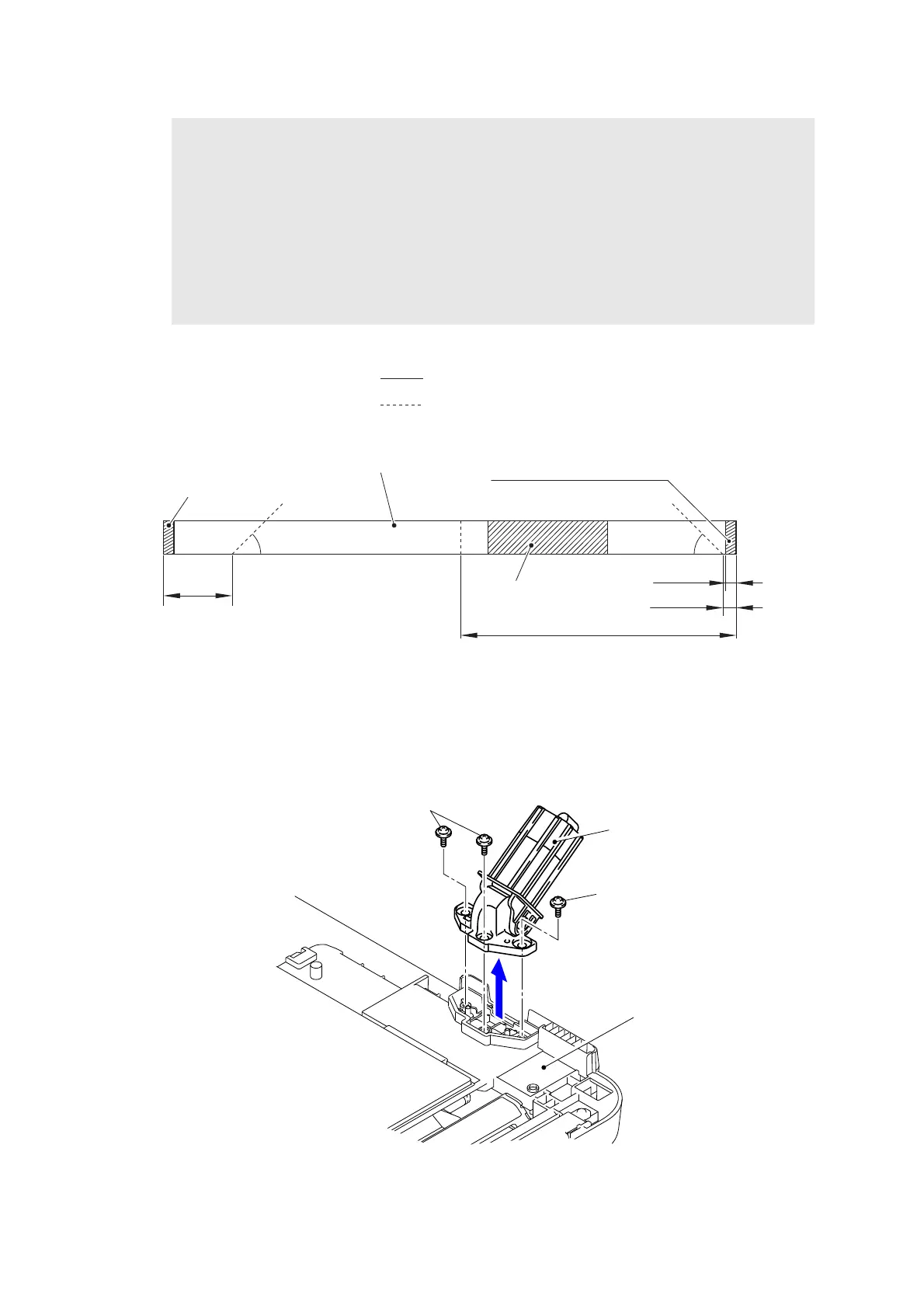

<How to fold the Second side CIS flat cable>
Fig. 3-61
(14) Turn the ADF unit upside down.
(15) Remove the three Taptite cup S M3x12 screws and remove the Hinge ASSY L from the
ADF unit.
Fig. 3-62
Assembling Note:
- When assembling the Flat cable holder, take care not to accidentally damage the Hooks,
which are easily get broken.
- When the ADF unit is replaced, be sure to fold and assemble the Second side CIS flat
cable as shown in the figure.
- After disconnecting Flat cables, check that each cable is not damaged at its end or
short-circuited.
- When connecting Flat cables, do not insert them at an angle. After insertion, check that
the cables are not at an angle.
45°
80±1 mm
200±2 mm
9±1 mm
45°
(8 mm)
<To be connected to Main PCB>
<To be connected to
Supporting tape
Fold the flat cable at the edge
Surface of the Supporting plate
Surface of the Supporting plate
(Back side: Terminal surface)
(Back side: Terminal surface)
Fold down
Fold back
of the Supporting plate.
Second side
CIS flat cable
Second side CIS unit>
45°
80±1 mm
9±1 mm
45°
(8 mm)
<To be connected to Main PCB>
Supporting tape
Fold the flat cable at the edge
Surface of the Supporting plate
Surface of the Supporting plate
(Back side: Terminal surface)
(Back side: Terminal surface)
Fold down
Fold back
of the Supporting plate.
Second side
CIS flat cable
Taptite cup S M3x12
Taptite cup S M3x12
Hinge ASSY L
ADF unit
To Next Page
