Brother MFC-L8850CDW Service Manual

3-69
Confidential

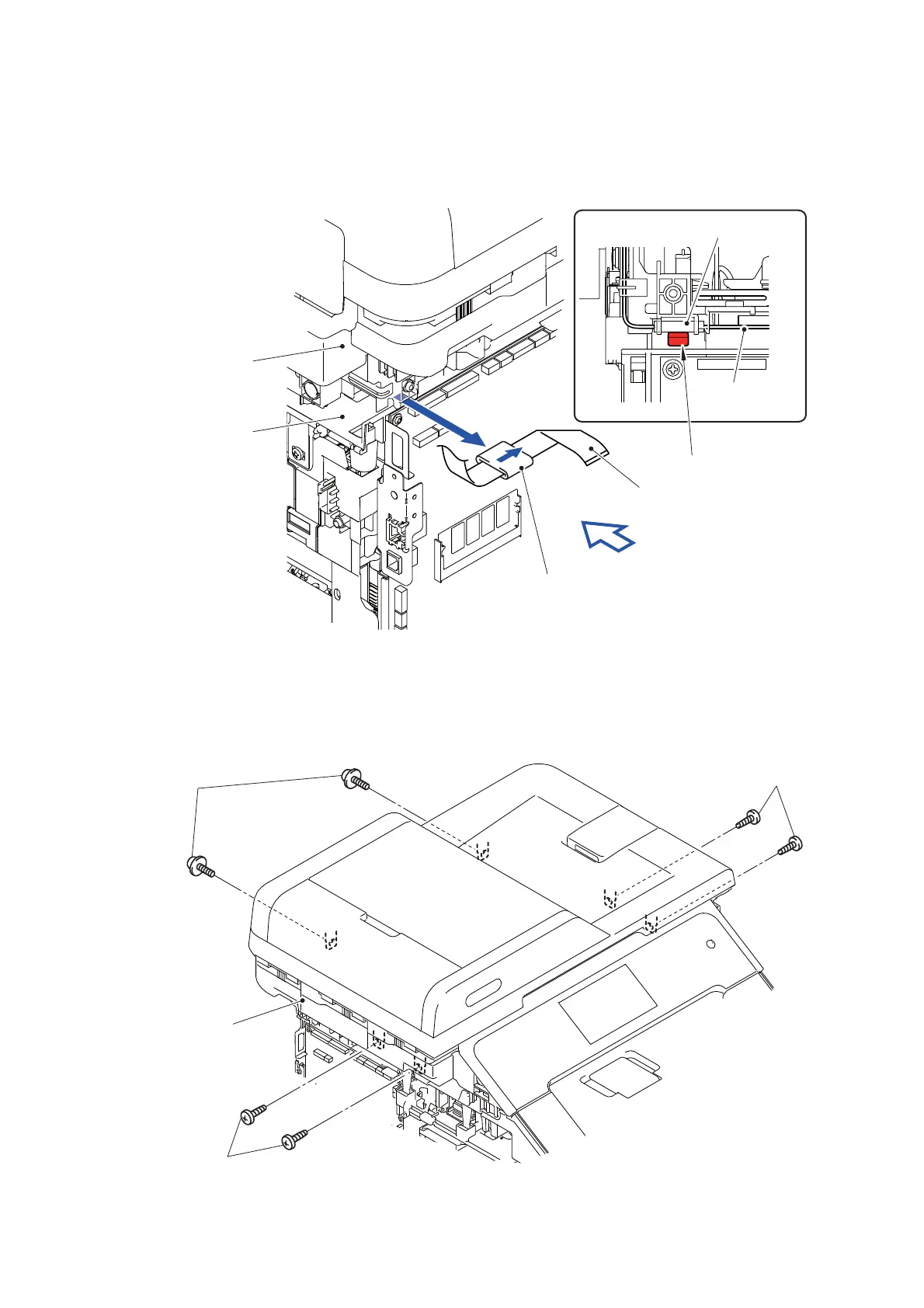

(6) Release all the wiring from the Document scanner unit.
(7) Release the Hook and remove the Flat core from the Joint cover top.
(8) Pull out the Second side CIS flat cable from the Flat core.
Fig. 3-67
(9) Remove the two Taptite bind B M4x12 screws from the right side of the Main body.
(10) Remove the two Taptite bind B M4x12 screws from the left side of the Main body.
(11) Remove the two Taptite cup B M4x12 screws from the back side of the Main body.
Fig. 3-68
Hook
Flat core
Flat core
Joint cover top
A view
<A view>
Document scanner unit
Second side CIS flat cable
Joint cover top
Main body
Taptite bind B M4x12
Taptite bind B
M4x12
Taptite cup B M4x12

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
