3-103

Confidential

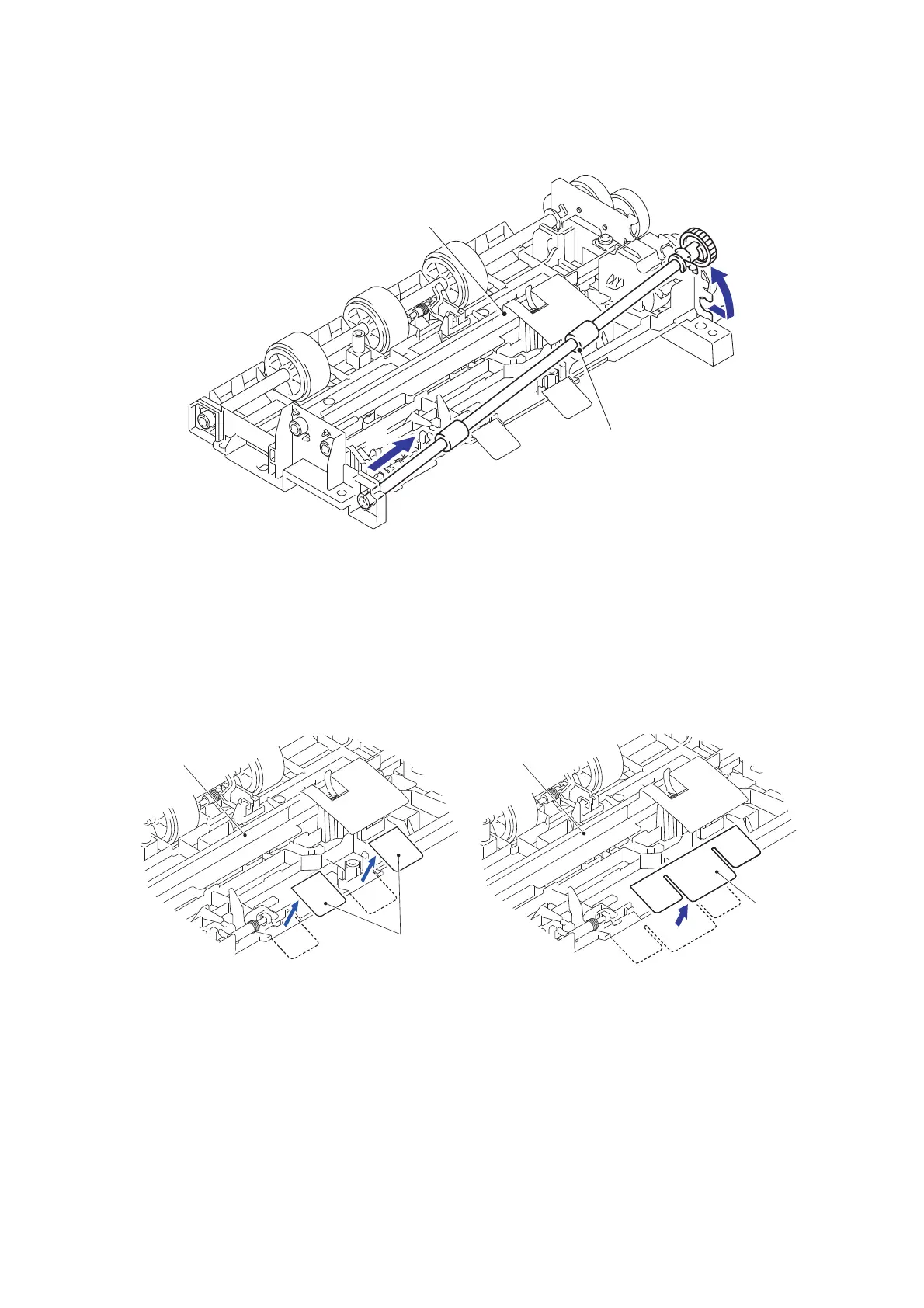

(3) Remove the Document ejection roller from the Lower ADF chute.

Fig. 3-125

(4) Peel off the double-sided adhesive tape and remove the Eject film from the Lower ADF

chute.

■ A4 model ■ Legal model

Fig. 3-126 Fig. 3-127

3a

3b

Document ejection roller

Lower ADF chute

Eject film

Lower ADF chute

Lower ADF chute

Eject film
