3-105

Confidential

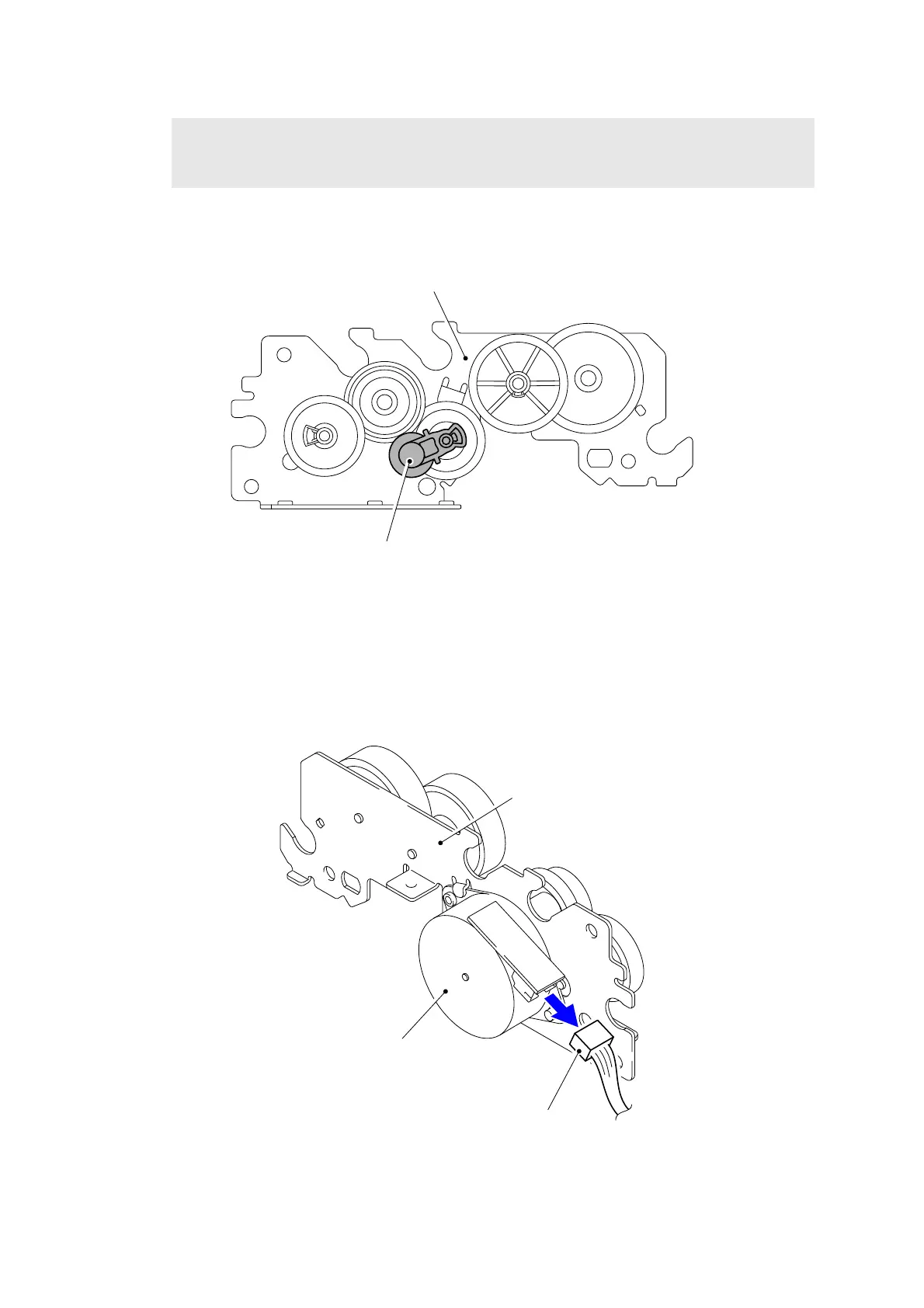

Fig. 3-130

(3) Disconnect the Connector from the ADF motor.

Fig. 3-131

Assembling Note:

When assembling the Drive frame ASSY, ensure that the Arm ASSY L2 are placed in the

positions as shown in the figure below.

Drive frame ASSY

Arm ASSY L2

Connector

ADF motor

Drive frame ASSY
