Brother MFC-L8850CDW Service Manual

3-111
Confidential
■ Legal model
(2) Remove the three Taptite cup B M3x10 screws from the LCD hold plate.
(3) Release the six Hooks and remove the LCD hold plate from the Control panel ASSY.

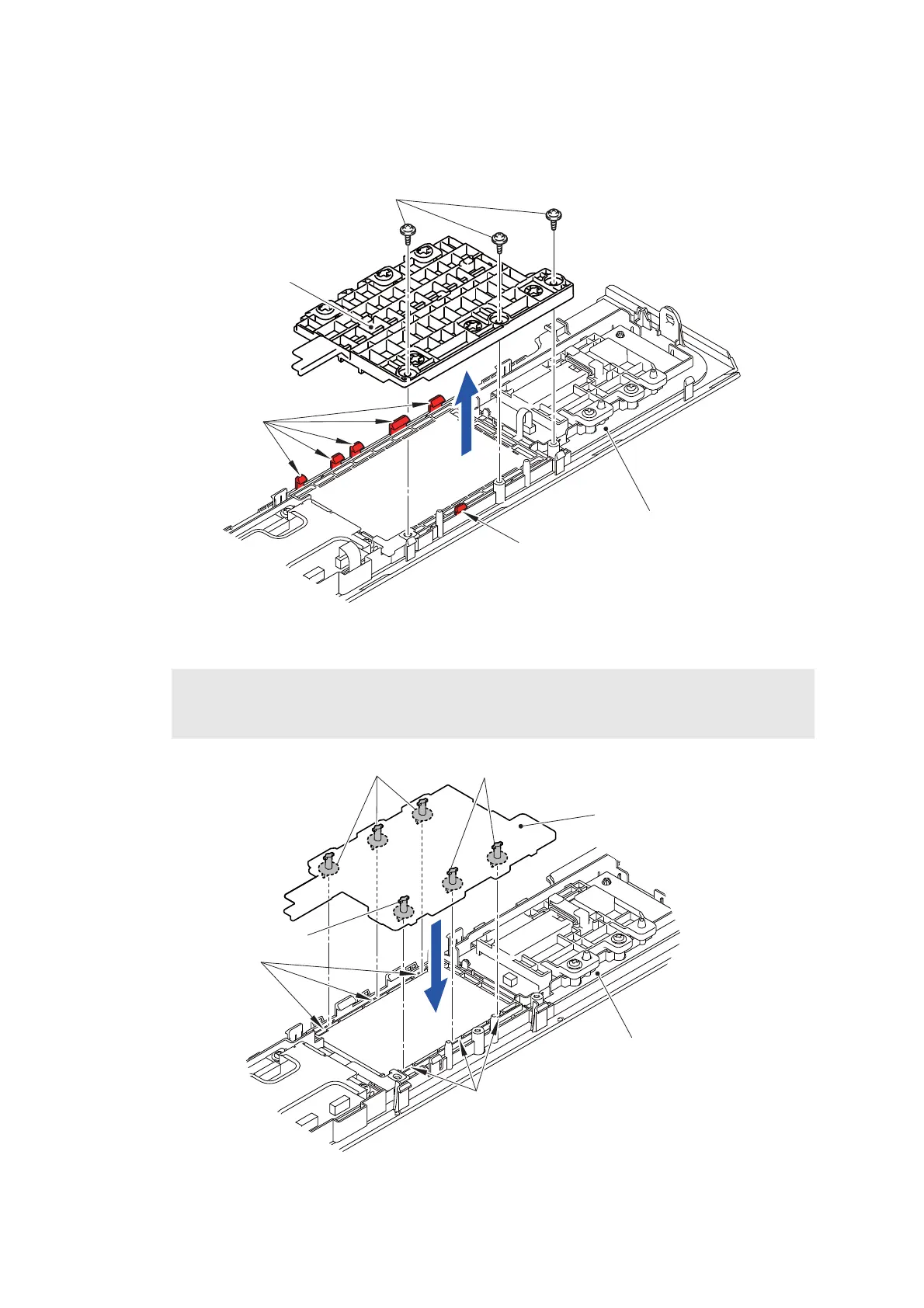

Fig. 3-141
■ A4 model/Legal model
Fig. 3-142
Assembling Note:
When assembling the LCD hold plate to the Control panel ASSY, be sure to assemble it in a
way that LCD hold tab fits in the groove of the LCD.
Taptite cup B M3x10
Hook
Hook
LCD hold plate
Control panel ASSY
LCD hold plate
Control panel ASSY
LCD hold tab
LCD hold tab
LCD hold tab
Groove
Groove
