Brother MFC-L8850CDW Service Manual

3-131
Confidential

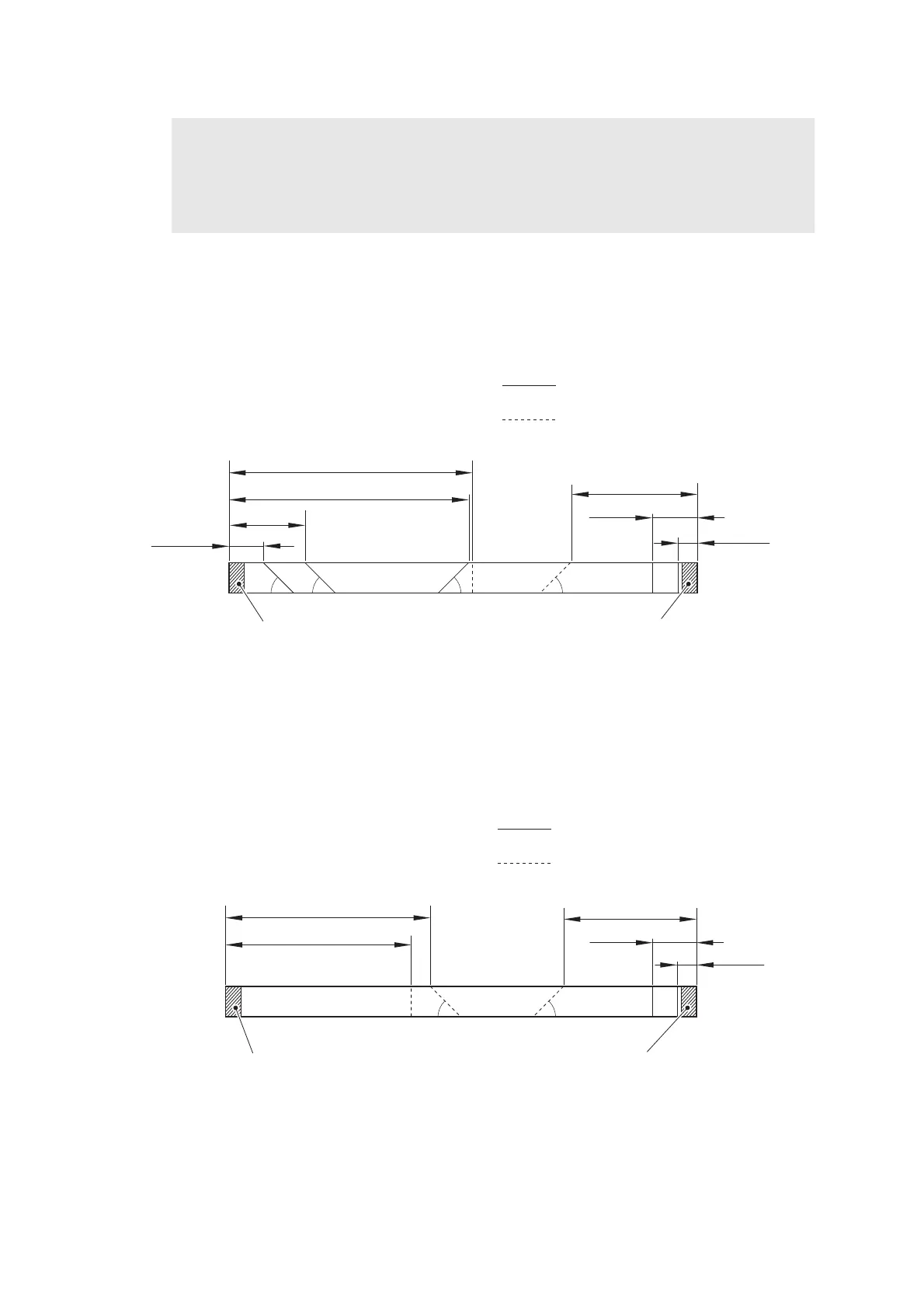

<How to fold the Modem flat cable>
■ A4 model
Fig. 3-177
■ Legal model
Fig. 3-178
Note:
- After disconnecting flat cables, check that each cable is not damaged at its end or
short-circuited.
- When connecting flat cables, do not insert them at an angle. After insertion, check that
the cables are not at an angle.
<To be connected
45°
18±1 mm
45°
45°
45°
40±1 mm
155±2 mm
157±2 mm
76±1 mm
20±1 mm
11±1 mm
Fold down
Fold back
Supporting plate Supporting plate
to Main PCB>
<To be connected
to Modem PCB>
Fold down
Fold back
45°
45°
10±1 mm
20±1 mm
82±1 mm
128±2 mm
138±2 mm
Supporting plate
Supporting plate
<To be connected
to Modem PCB>
<To be connected
to Main PCB>

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
