Brother MFC-L8850CDW Service Manual

3-145
Confidential
(5) Remove the two Screw bind M3x8 screws from the Main PCB plate.
Release the two Hooks and remove the Main PCB plate from the Main body.

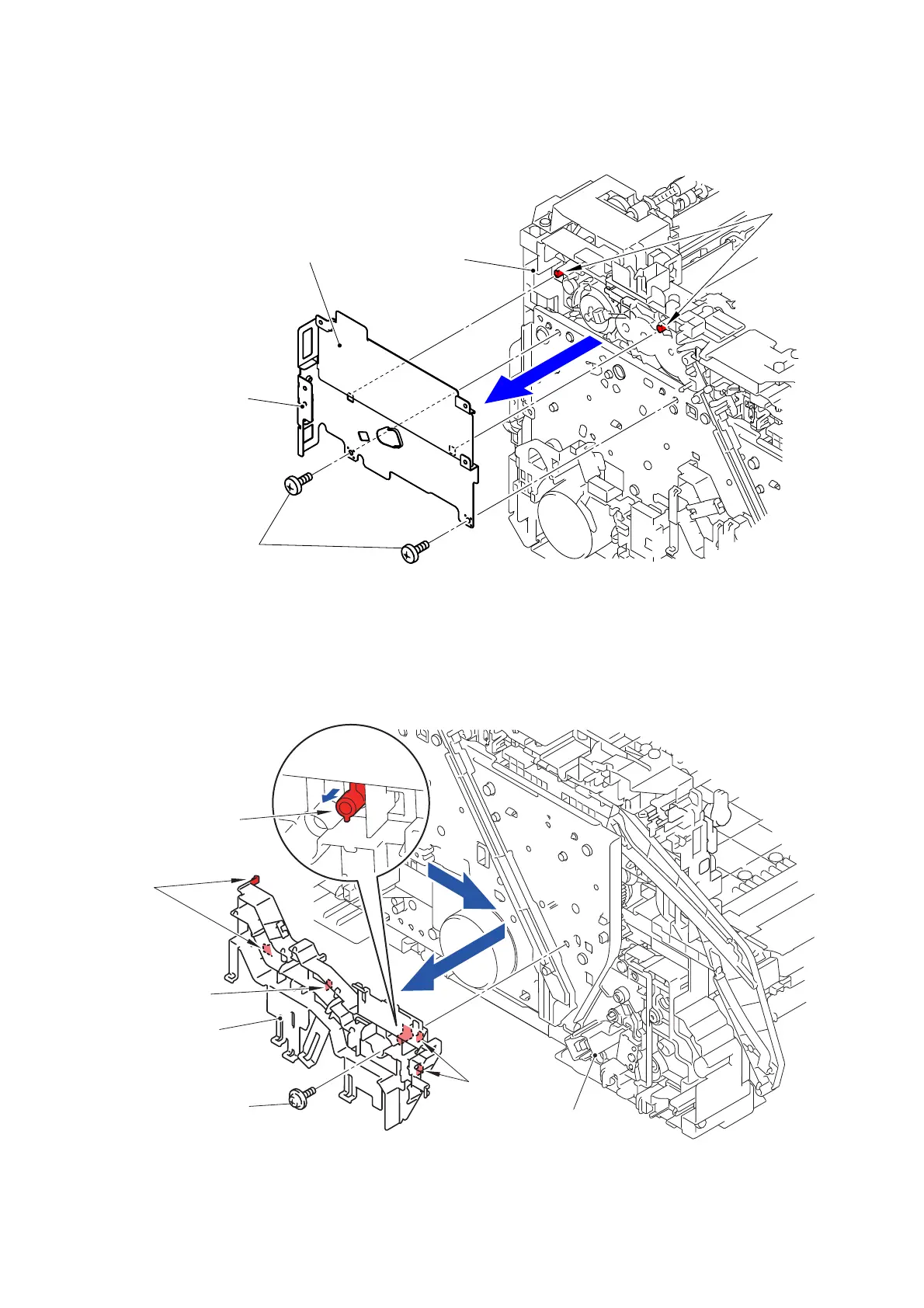

Fig. 3-200
(6) Release all the wiring from the PF cable rack.
(7) Remove the Taptite cup S M3x8 SR screw from the PF cable rack. Release the six Hooks
and slide the PF cable rack in the direction of the arrow and remove it from the Main body.
Fig. 3-201
Hook
Main PCB plate
Main body
<Left side>
Main PCB insulation sheet
Screw bind M3x8
PF cable rack
Taptite cup S M3x8 SR
Hook
Main body
Hook
Hook
Hook
7a
7b
<Left side>
