3-167
Confidential

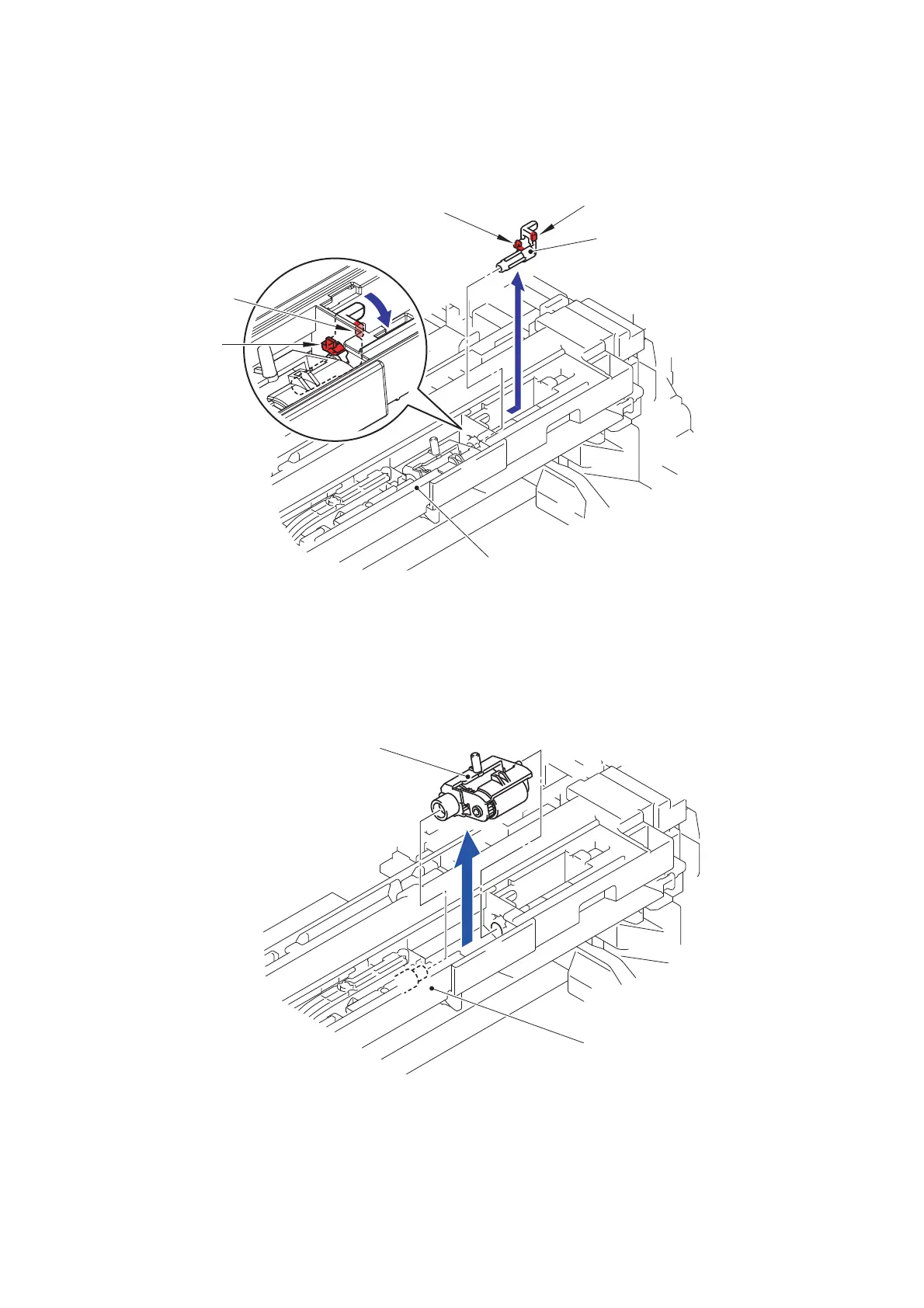

(3) Release the Hook 1 and rotate the MP holder bushing in the direction of the arrow.
(4) Release the Hook 2 and remove the MP holder bushing from the MP upper cover ASSY.
Fig. 3-236
(5) Remove the MP roller holder ASSY from the MP upper cover ASSY.
Fig. 3-237
Hook 2
MP upper cover ASSY
MP holder bushing
3
4
<Front side>
Hook 1
Hook 1
Hook 2
MP upper cover ASSY
MP roller holder ASSY
<Front side>
