■ Printing of misregistration correction chart
<Operating procedure>
(1) Press the 6 key twice in the initial state of the maintenance mode. “REGISTRATION” is
displayed on the LCD.
(2) Press the or key to display “PRINT CHART” on the LCD.
(3) Press the SET key. “PRINTING” is displayed on the LCD, and misregistration correction
chart (see the figure below) is printed. When printing is finished, “PRINT CHART” is
displayed on the LCD.
(4) Press the X key to return the machine to the initial state of the maintenance mode.

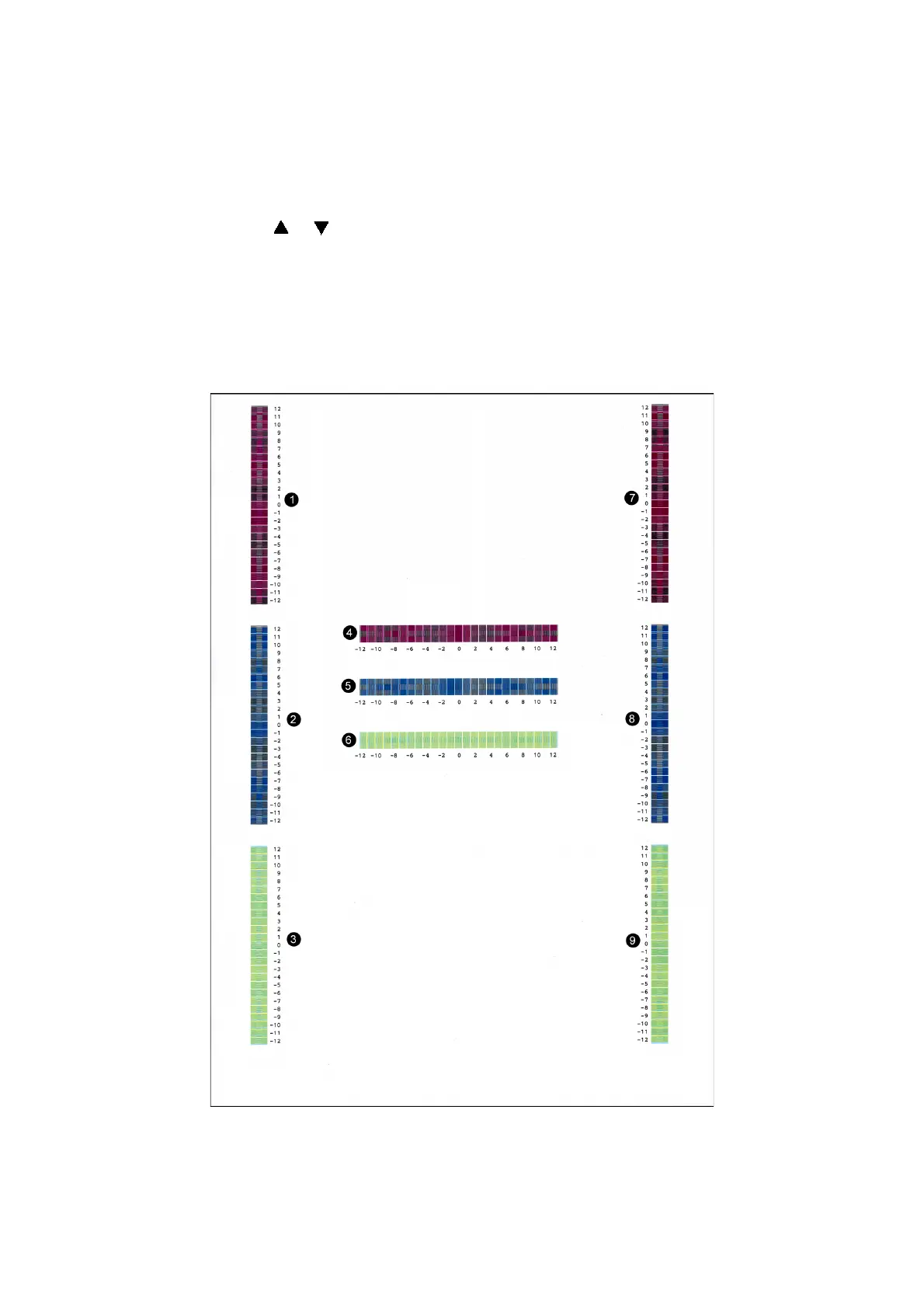

■ Misregistration correction chart
Fig. 5-14
