1.3.25 Frame pattern print (One-sided) (Function code 69)
<Function>
This function is used to print one page of the frame pattern of the external circumference in
one-sided printing and check if there is any deviation or omission of print.
<Operating procedure>
(1) Load the paper whose size matches the default paper setting (A4 or Letter) into the paper tray.
(2) Press the 6 and 9 keys in this order in the initial state of the maintenance mode.
“PRINTING” is displayed on the LCD, and the frame pattern (see the figure below) is printed on
a single side of the paper.
(3) When print is completed, “WAKU SX” is displayed on the LCD.
(4) Press the X key and finish this operation to return the machine to the initial state of the
maintenance mode.

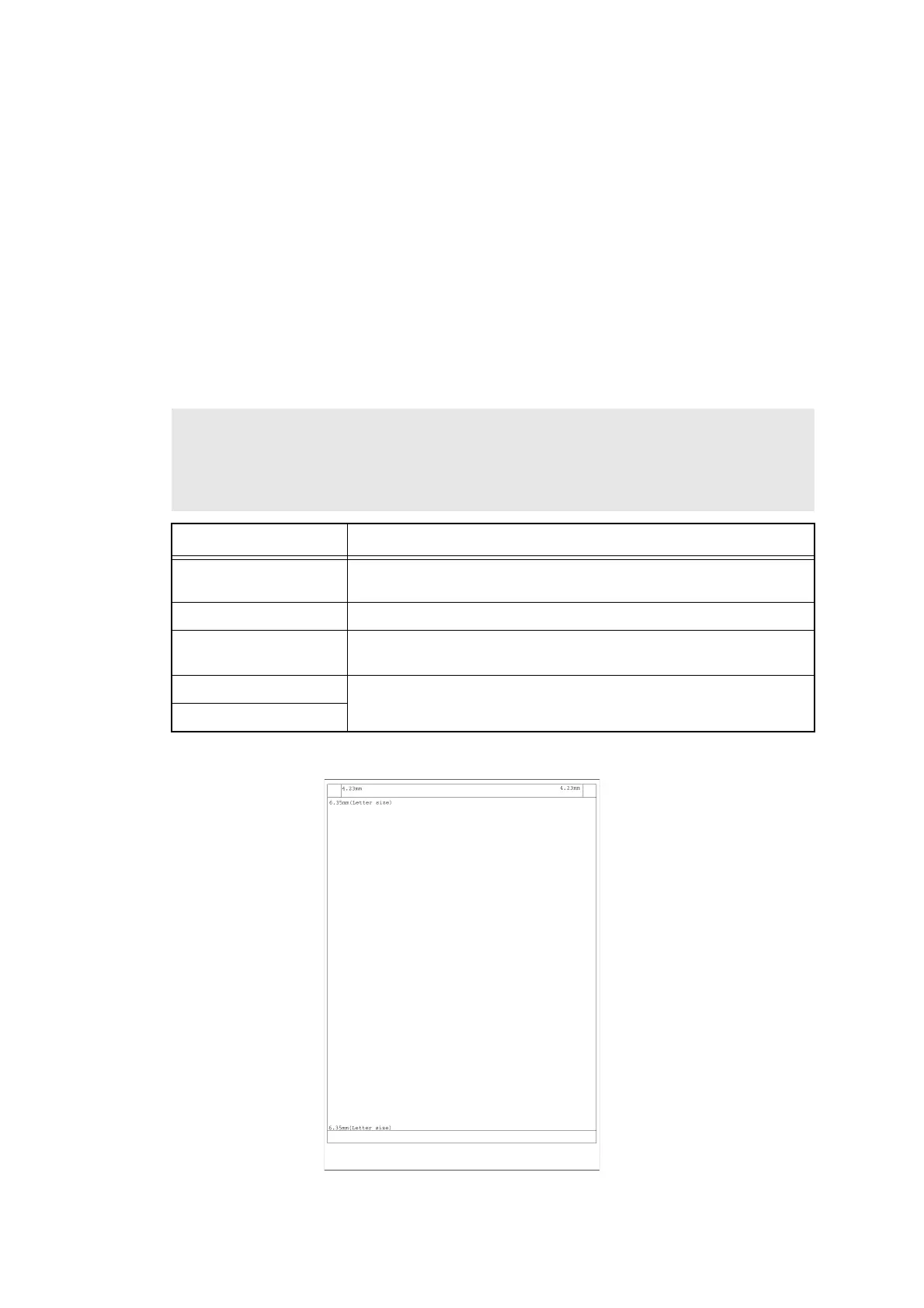

■ Frame pattern
Fig. 5-17
Note:
If printing fails, the following error indications are displayed on the LCD, and printing is
cancelled. To print again, refer to the measures in the table below and remove the cause of
the error. Then, press the Mono Start key. “PRINTING” is displayed on the LCD, and the
frame pattern is printed on a single sheet.
Error message Measure
Replace Toner Replace the empty toner cartridge and press the Mono Start key
to clear the error.
Cover is Open Close the front cover.
No Paper Load paper into the paper tray, close the paper tray, and press the
Mono Start key to clear the error.
Jam Tray1 Remove the jammed paper, close the paper tray and all the
covers, and press the Mono Start key to clear the error.
Jam Rear
To Next Page
