Brother MFC-L8850CDW Service Manual

7-9
Confidential

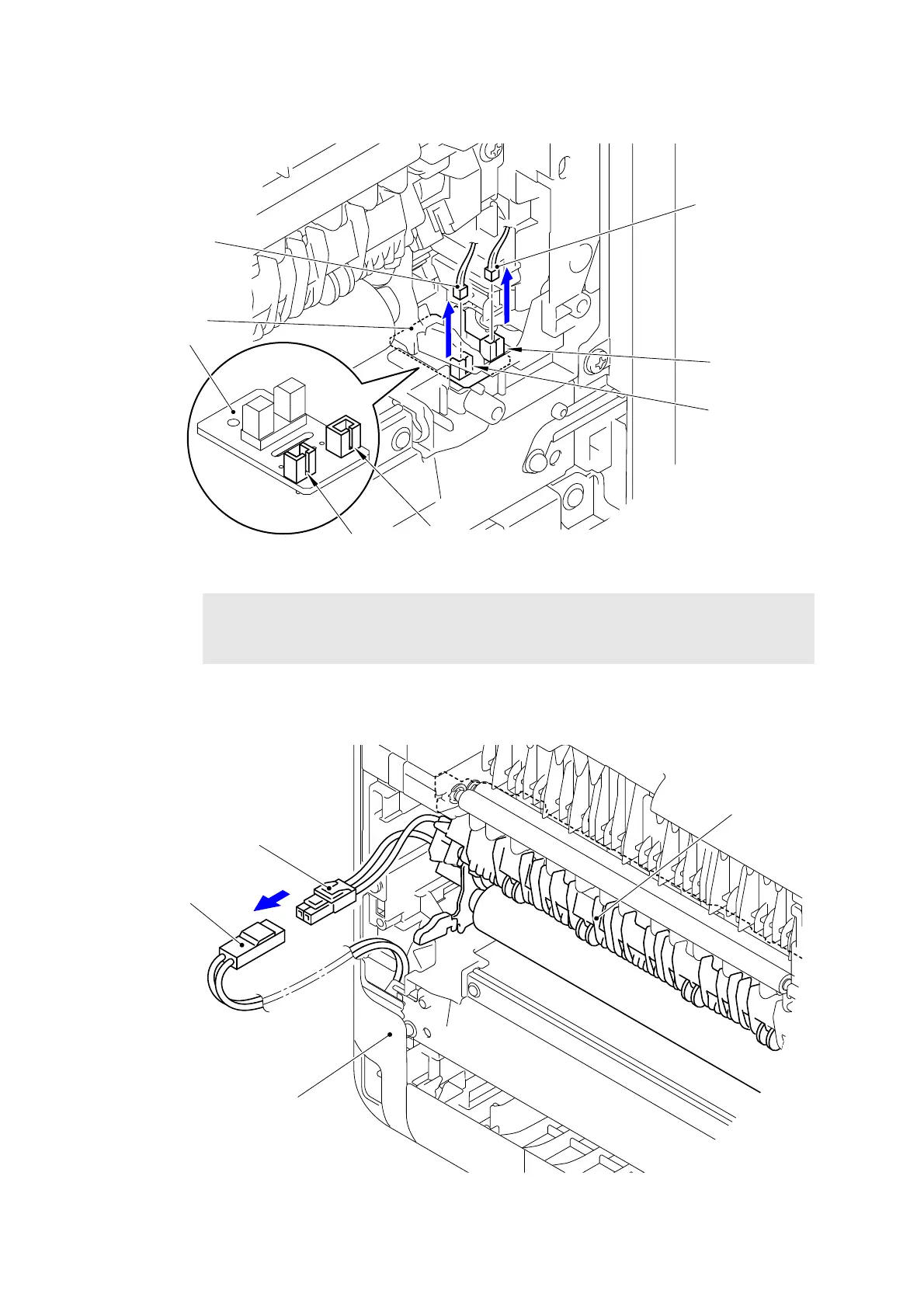

(16) Disconnect the two Connectors (CN1 and CN2) from the Eject sensor PCB ASSY.
Fig. 7-13
(17) Disconnect the Electrode terminal of the Main body from the Electrode terminal of the
Fuser unit.
Fig. 7-14
Assembling Note:
* Center thermistor has a black and blue connectors (230V models only).
The black connector may be connected to the blue insertion port and vice versa.
Connector
CN1
CN2
Eject sensor
Connector
CN1
CN2
<Back side>
PCB ASSY
*
(Center thermistor
harness
*
)
Fuser unit
Electrode terminal of the Fuser unit
Main body
Electrode terminal
of the Main body
<Back side>

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
