(5) Open the Front cover.

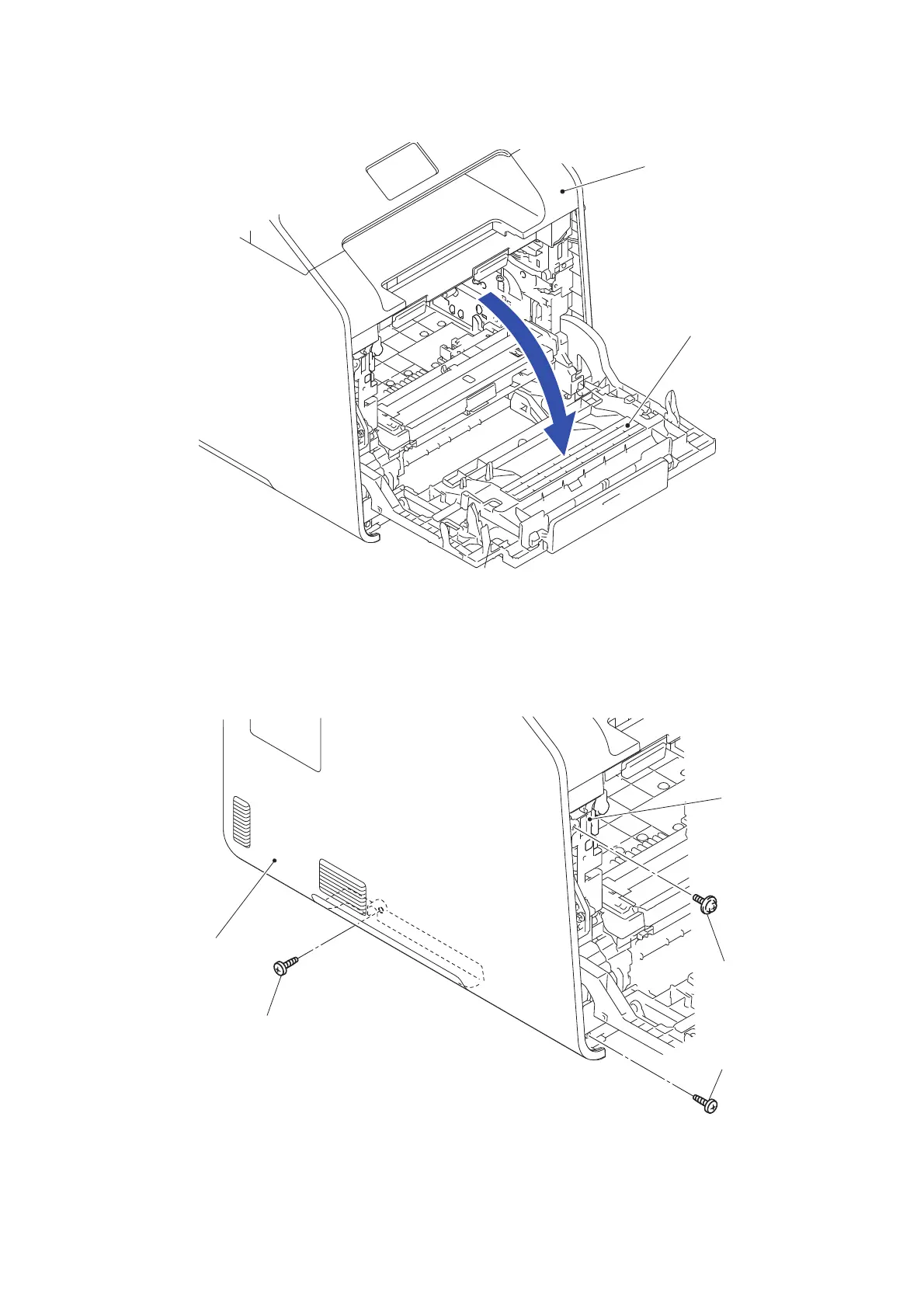

Fig. 7-22
(6) Remove the one Taptite B 3x6 screw and the one Taptite bind B M4x12 screw from the
front of the Side cover L.
(7) Remove the Taptite bind B M4x12 screw from the side of the Side cover L.
Fig. 7-23
Main body
Front cover
Taptite B 3x6
Taptite bind B M4x12
Main body
Taptite bind BM4x12
<Front side>
Side cover L
