FUEL SYSTEM
FUEL COMPONENT SERVICING
7

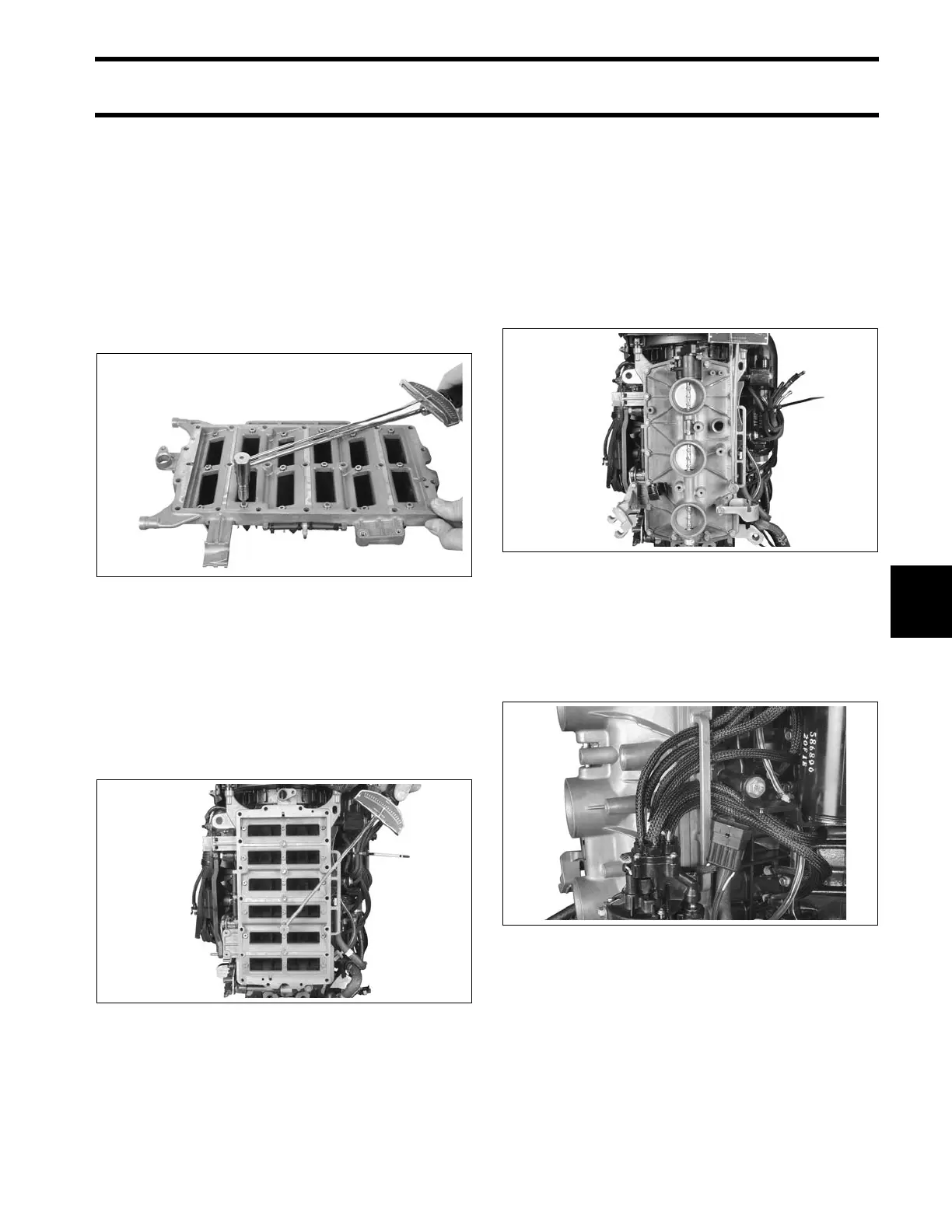

Assembly
Remove old adhesive from reed valve retaining
screws.
Install gasket on reed plate assembly. DO NOT
use sealer on the gasket.
Prime screw threads with Locquic Primer and let
dry. Apply Nut Lock to threads. Position reed valve
on reed plate and install screws. Tighten screws
to a torque of 30 to 42 in. lbs. (3.5 to 4.7 N·m).
Installation
Place reed plate assembly on cylinder/crankcase.
Apply Nut Lock to screws. Install all screws.
Tighten the center screws first and expand out-
ward. Tighten in stages to a final torque of 96 to
120 in. lbs. (11 to 13.5 N·m).
Install electrical harness base screws.
Place gasket on throttle body. Install throttle body,
with oil pump bracket, on reed plate and install
screws.
Tighten the center screws first and expand out-
ward. Tighten in stages to a final torque of 96 to
120 in. lbs. (11 to 13.5 N·m).
Tighten small oil pump bracket screw 24 to 36 in.
lbs. (3 to 4 N·m).
Install oil pump in bracket and secure with Oetiker
clamp. Route oil distribution hoses through reed
plate bracket and install in oil pump manifold.
Refer to OIL SUPPLY DIAGRAMS – V4 on p. 160
or OIL SUPPLY DIAGRAMS – V6 on p. 162.
