POWERHEAD

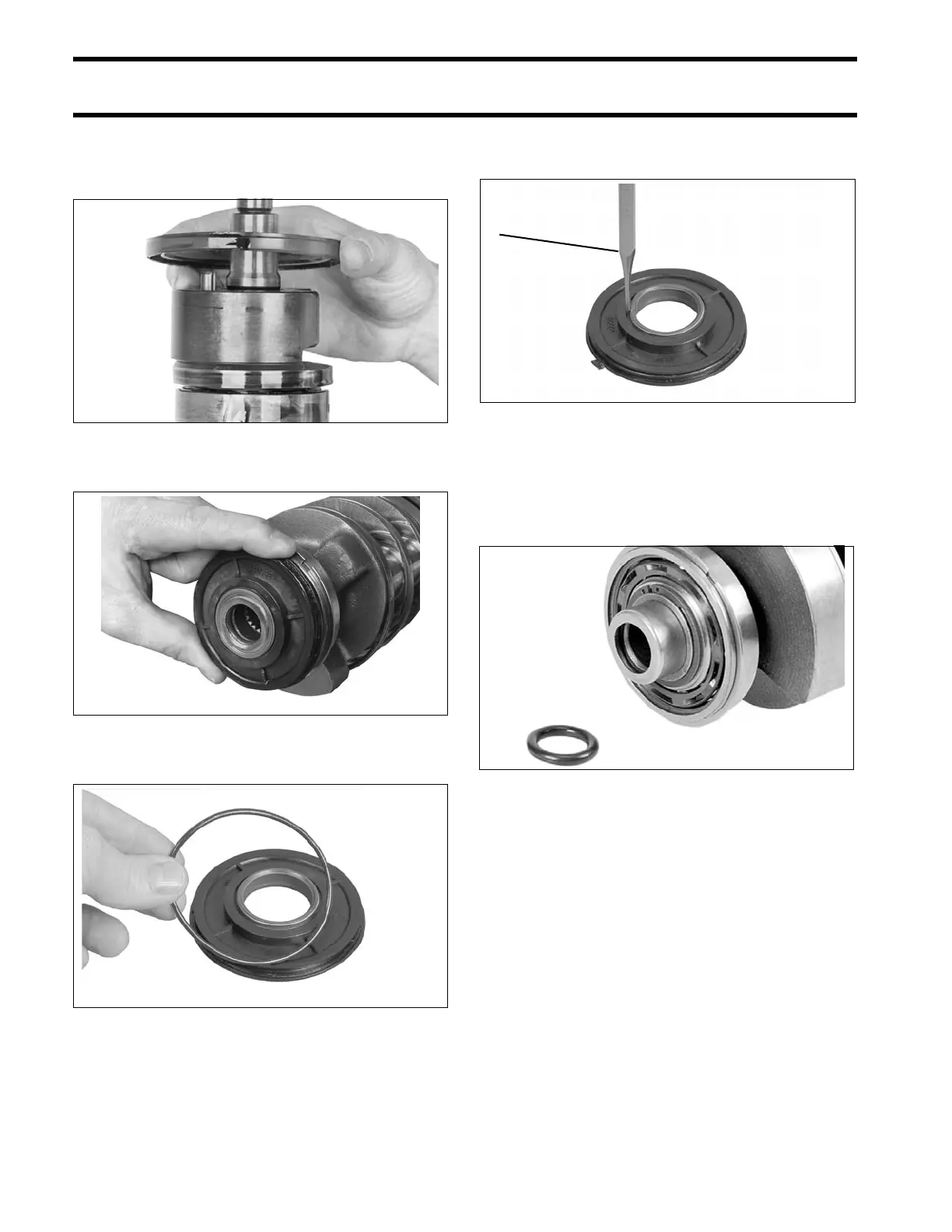

POWERHEAD DISASSEMBLY
Remove upper seal from crankshaft. Discard the
seal. A new upper seal must be installed on
assembly.
Remove the lower bearing seal housing.
Remove the housing O-ring. Discard O-ring.
Use a punch to remove the housing seal. Discard
seal.
Inspect housing and replace if necessary.
Remove the O-ring from crankshaft sleeve and
inspect it. Replace the O-ring if it is not in good
condition.
Inspect the crankshaft sleeve and replace if nec-
essary. To remove the sleeve, use Slide Hammer,
P/N 432128, and Large Puller Jaws, P/N 432129.
49068
005280
002044
1. Punch 002053
29019
