Design and Function
H148850_3_003 19
The following components are located on the back of the sample changer and are shipped
with the sample changer:

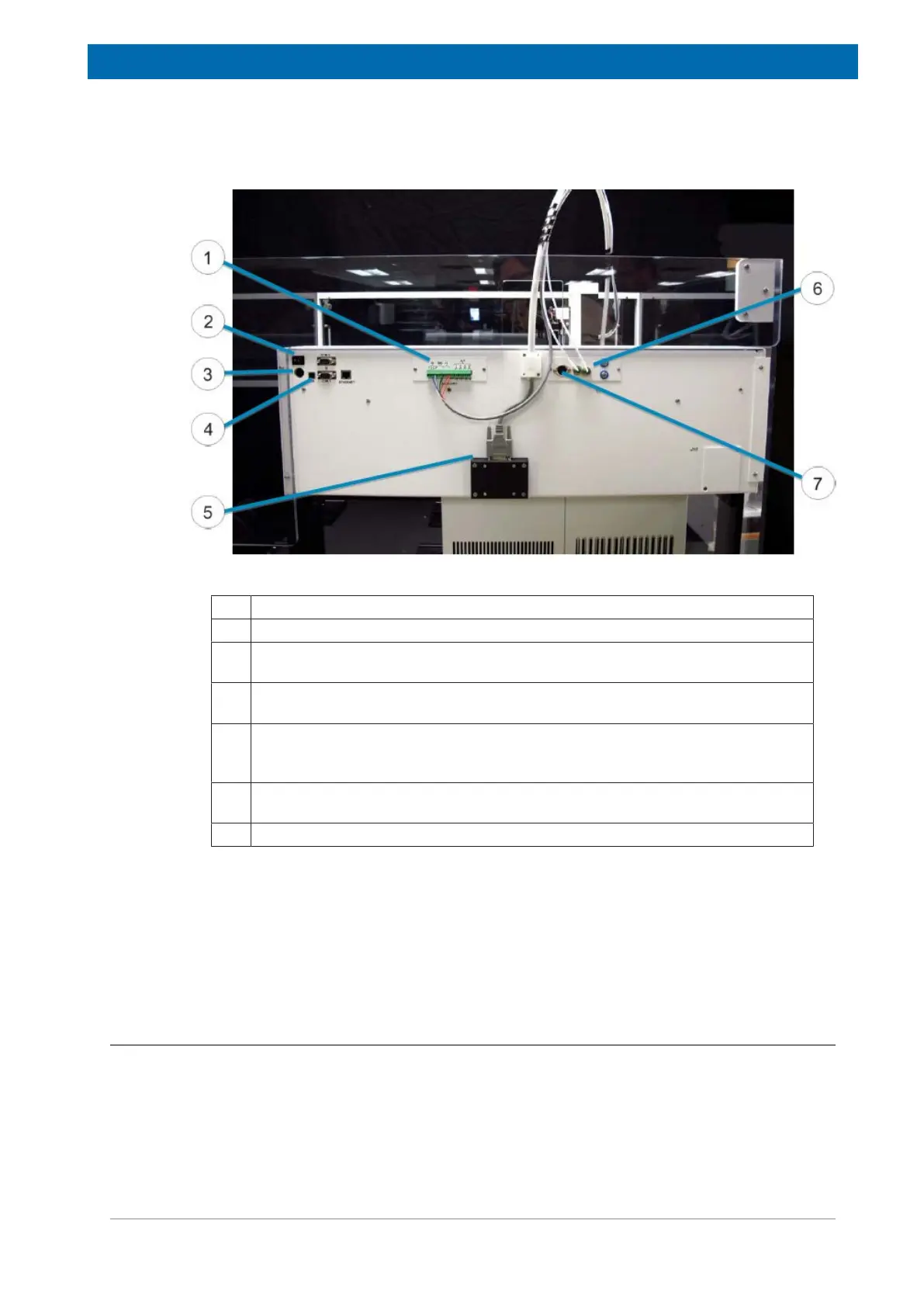

Figure4.3: Sample Automation XYZ Sample Changer—Back View of Sample Changer Head.
1 Auxiliary I/O Port: Provides control signals to the gripper.
2 Power Switch: This switch turns the power to the sample changer on and off.
3 Power Supply Connector: The power supply connects to the sample changer
at this connector.
4 USB Port: The USB port is used to interface the sample changer with the host
computer.
5 Z-Drive Connector: The Z-drive contains an integral motor and lead screw, and
is powered and controlled through a connector on the back of the sample
changer.
6 Gripper Tubing Fittings: An internal pump generates air flow to power the
pneumatic gripper head.
7 E-Stop Connector: Connector for the emergency stop button.
The following standard components are also shipped with the sample changer:
• Power Supply: A desktop power supply powers the sample changer.
• Communication Cable: The kit includes a USB cable.
• E-stop Button: The e-stop button can be mounted on the outside of the safety barrier to
make it easy to quickly stop sample changer movement.
4.2 Additional Equipment Required
In addition to the equipment provided, you will need:
• A host computer with an available USB or serial port.
• NMR or other analytical instrument.
• Sample Stage: Holds two racks and standards. Used with 10 mm and 26 mm systems.
To Next Page
