Installation
H148850_3_003 25
6.2 Installing the Temperature Units
Each temperature unit comes with a manual which explains how to mount it on the sample
changer and how to connect the cables.
6.3 Mounting the NMR Instrument
• Place the sample changer in its final operating position.
Once the NMR instrument is mounted, the sample changer will be too heavy to move
without a mechanical lift.
• Loosen the screws in the two mounting brackets and pull the clamp outward.

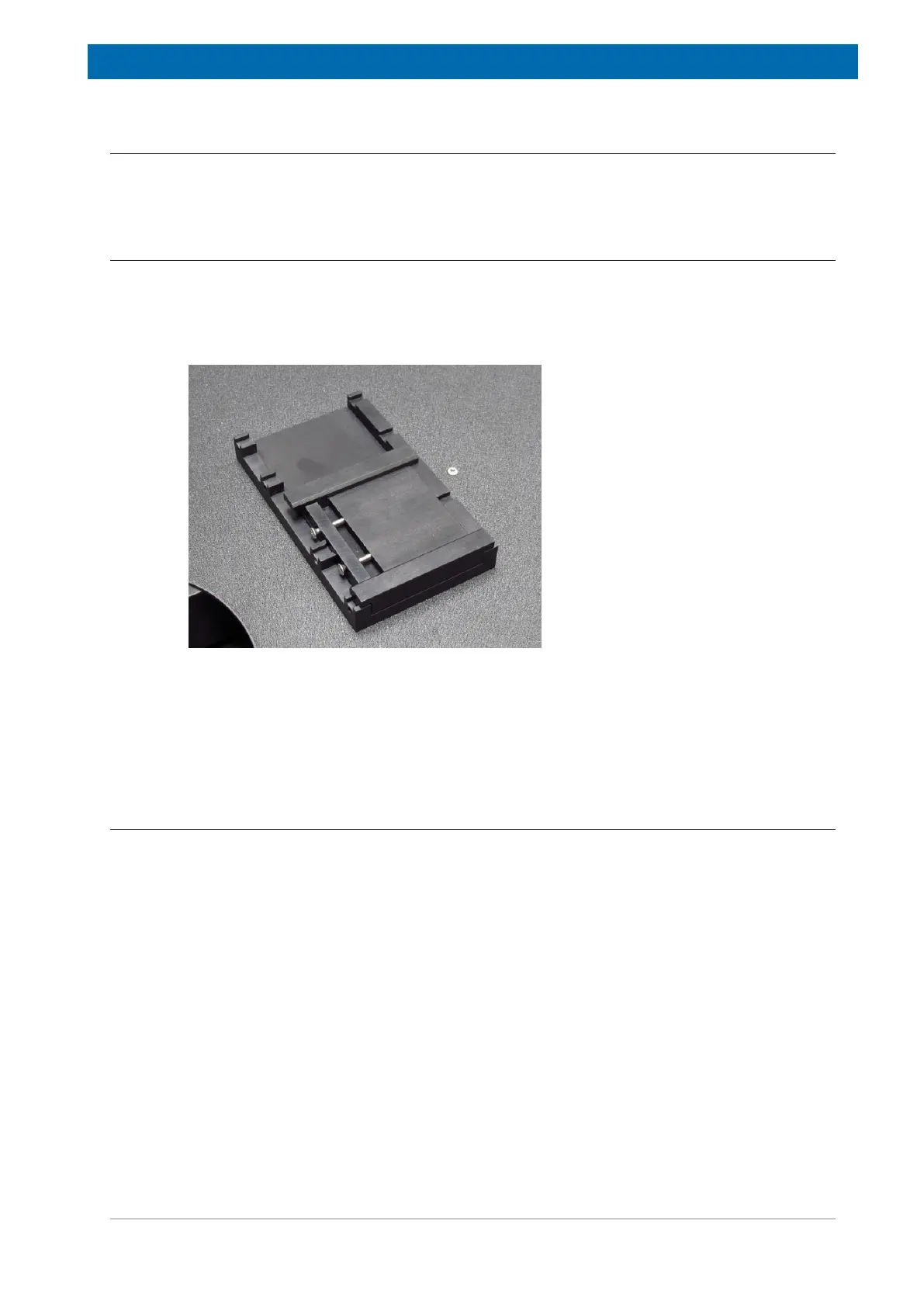

Figure6.1: Mounting Bracket
• With the help of an assistant, carefully lower the instrument so that the mounting bars on
the bottom of the instrument rest in the mounting brackets.
• Tighten the screws.
• See the instrument manual for information on connecting and using the instrument.
6.4 Connecting the E-Stop Button
The e-stop button makes it easy to quickly stop all movement without reaching behind the
instrument. The e-stop button can be mounted on the side of the instrument or on the outside
of the optional safety barrier.
