Bruker minispec - Opening the Safety Barrier; Figure 8.2: Safety Barrier Latch

Operation
46 H148850_3_003
8.5.1 Opening the Safety Barrier
• Turn off the sample changer and unplug the power cord.
• Use the key to turn the latch [2].
• Slide the handle toward the center [3].

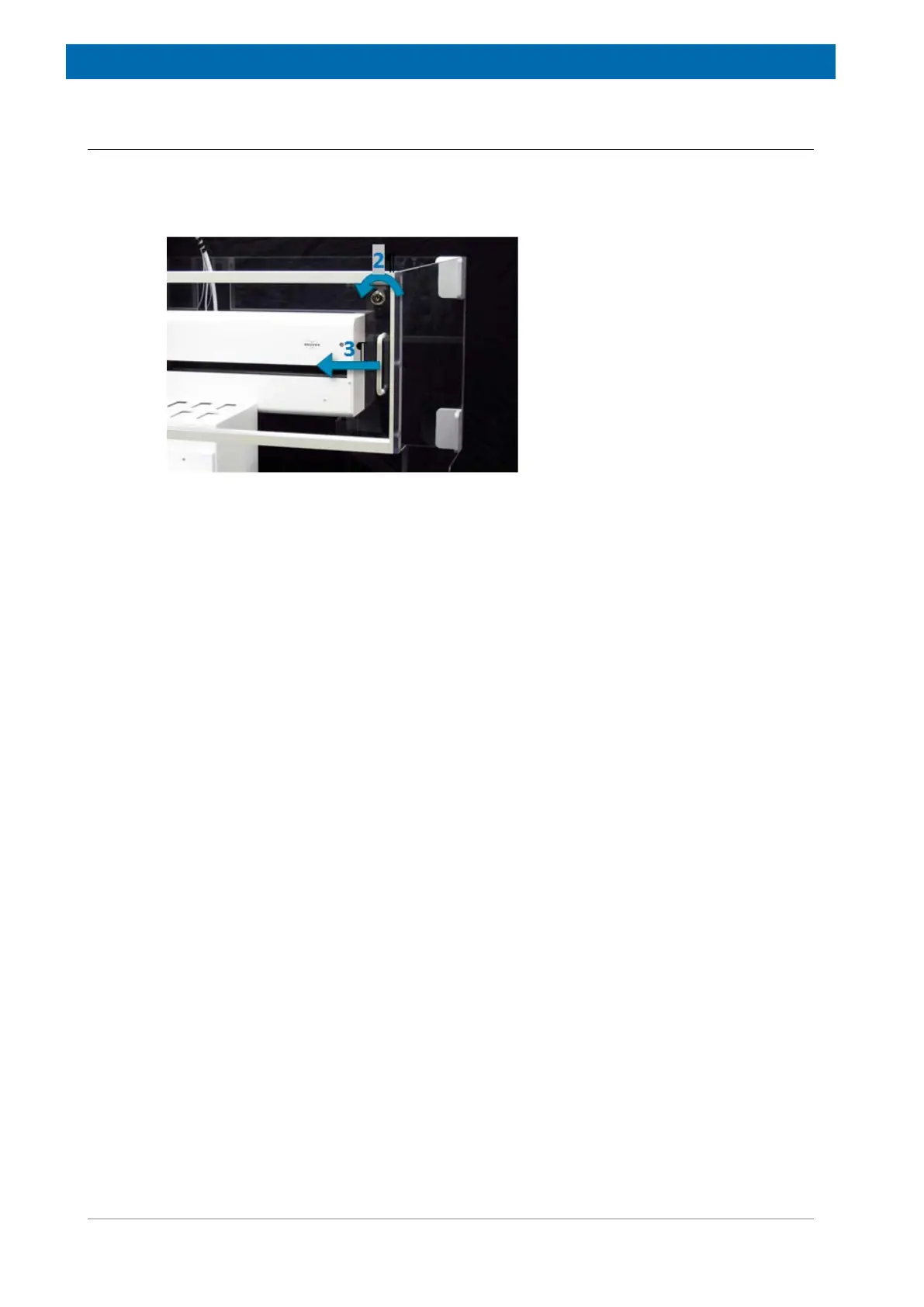

Figure8.2: Safety Barrier Latch
To close the safety barrier
• Slide the handle away from the center.
• Use the key to close the latch.
• The unit can now be plugged in and turned on.
