Safety Barrier Assembly Installation (Optional)

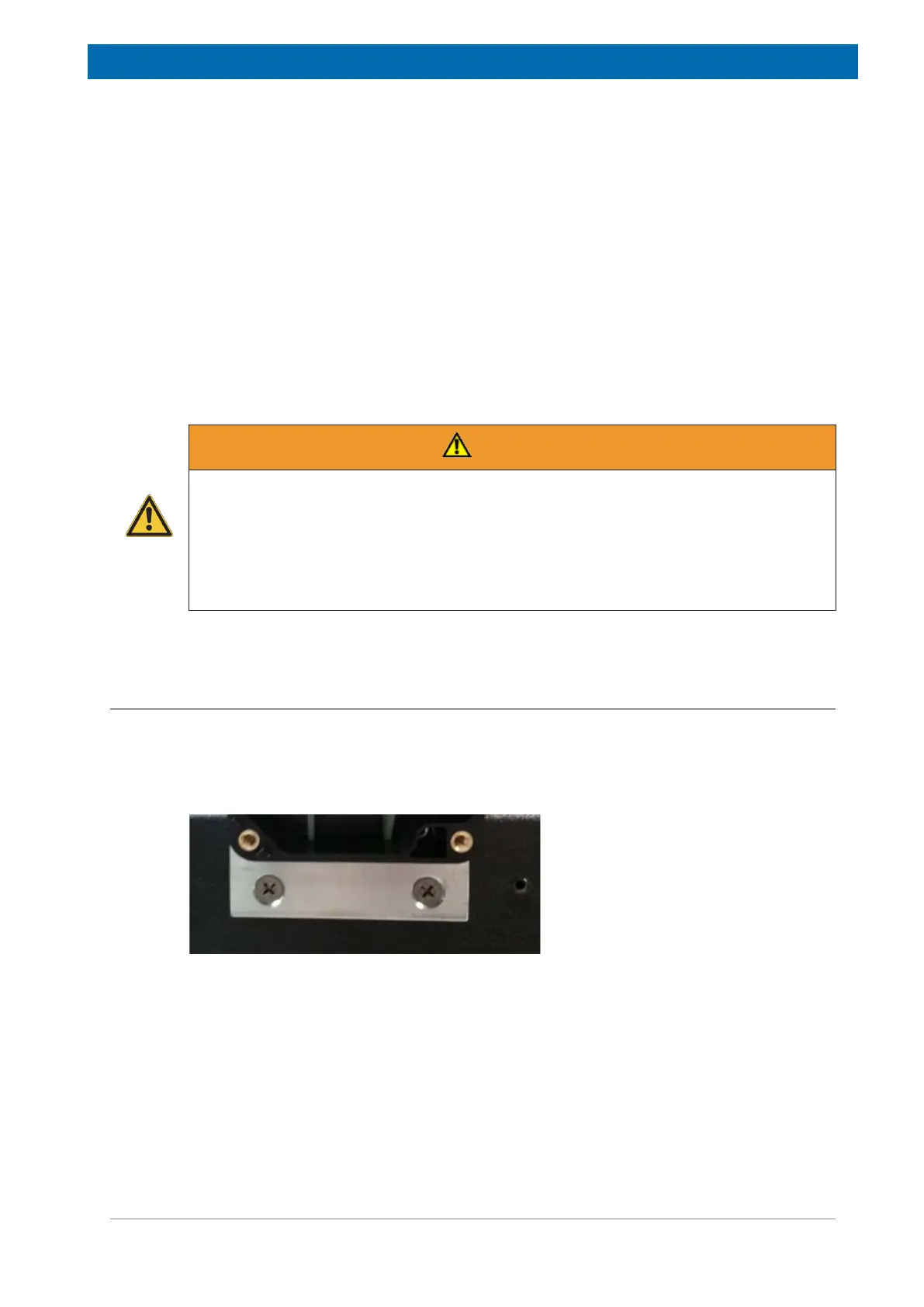

H148850_3_003 33
7 Safety Barrier Assembly
Installation (Optional)
This chapter describes how to install the optional ASX-7600 NMR safety barrier assembly.
To assemble the ASX-7600HR NMR safety barrier you will need the following tools:
• #1 Phillips screwdriver
• 9/64” Allen wrench
• 1/4” Wrench or nut driver
WARNING
Lifting Hazard
Lifting without assistance may cause injury.
u Two people are required to lift the device.
u Lifting should be done with a person situated on either side of the device.
u Never attempt to lift or move the device when the temperature units and NMR
instrument are installed.
7.1 Preparing the Sample Changer
The following steps must be carried out before assembling the safety barrier:
Step 1: Turn off power to the instrument and unplug the power cord.
Step 2: Remove the E-stop and mounting bracket by removing the two screws that hold the
bracket to the autosampler base.
To Next Page
