• Slide the Z-drive onto the y-arm.

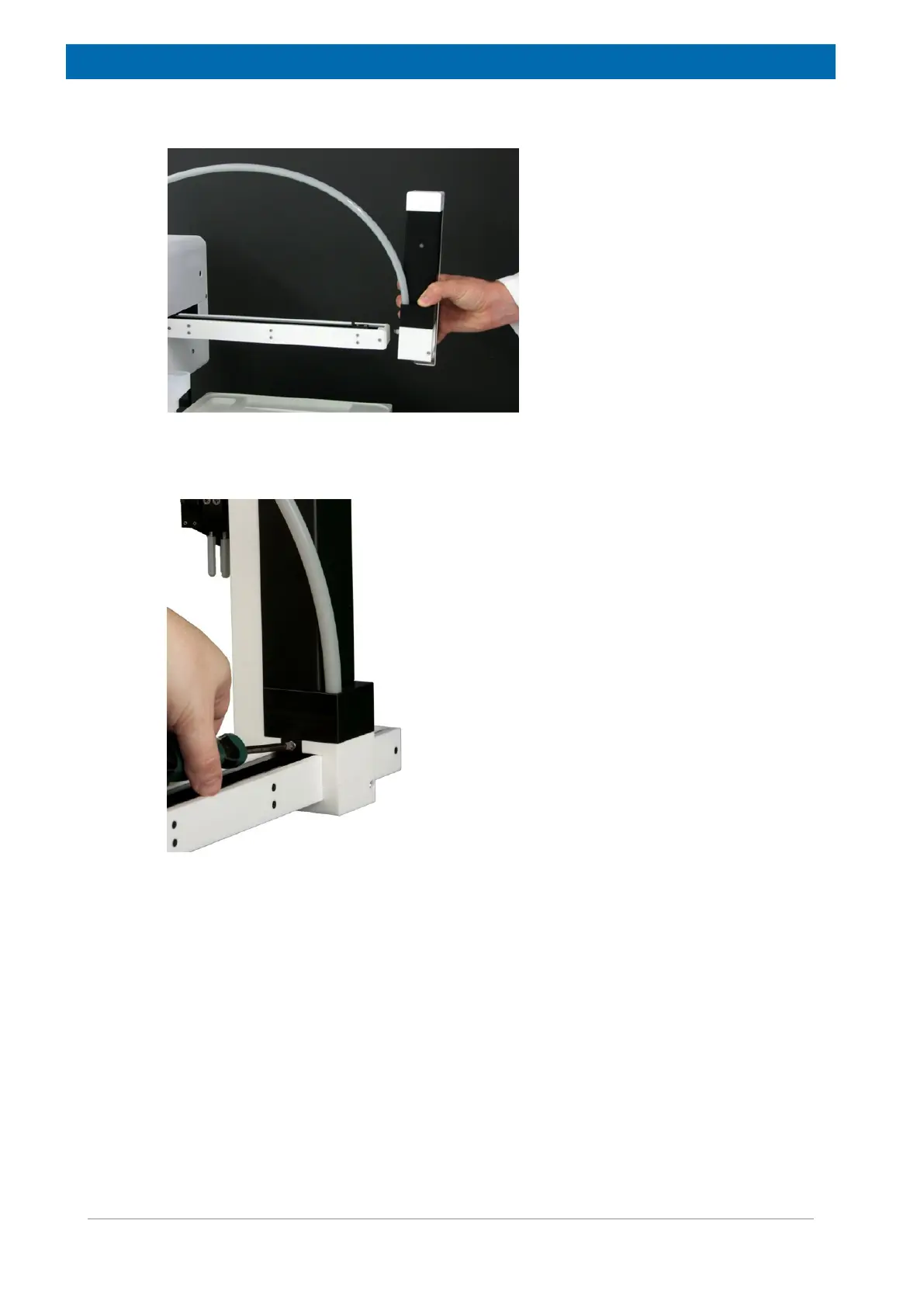

Figure10.2: Sliding the Z-Drive onto the Y-Arm.
• Secure the screw.
Figure10.3: Attaching the Z-Drive to the Carriage.
