Bruker minispec - Figure 10.4: Attaching the Z-Drive Strain Relief Block; Figure 10.5: Connecting the Z-Drive Cable

Maintenance
H148850_3_003 59
• Screw the strain-relief block to the sample changer.

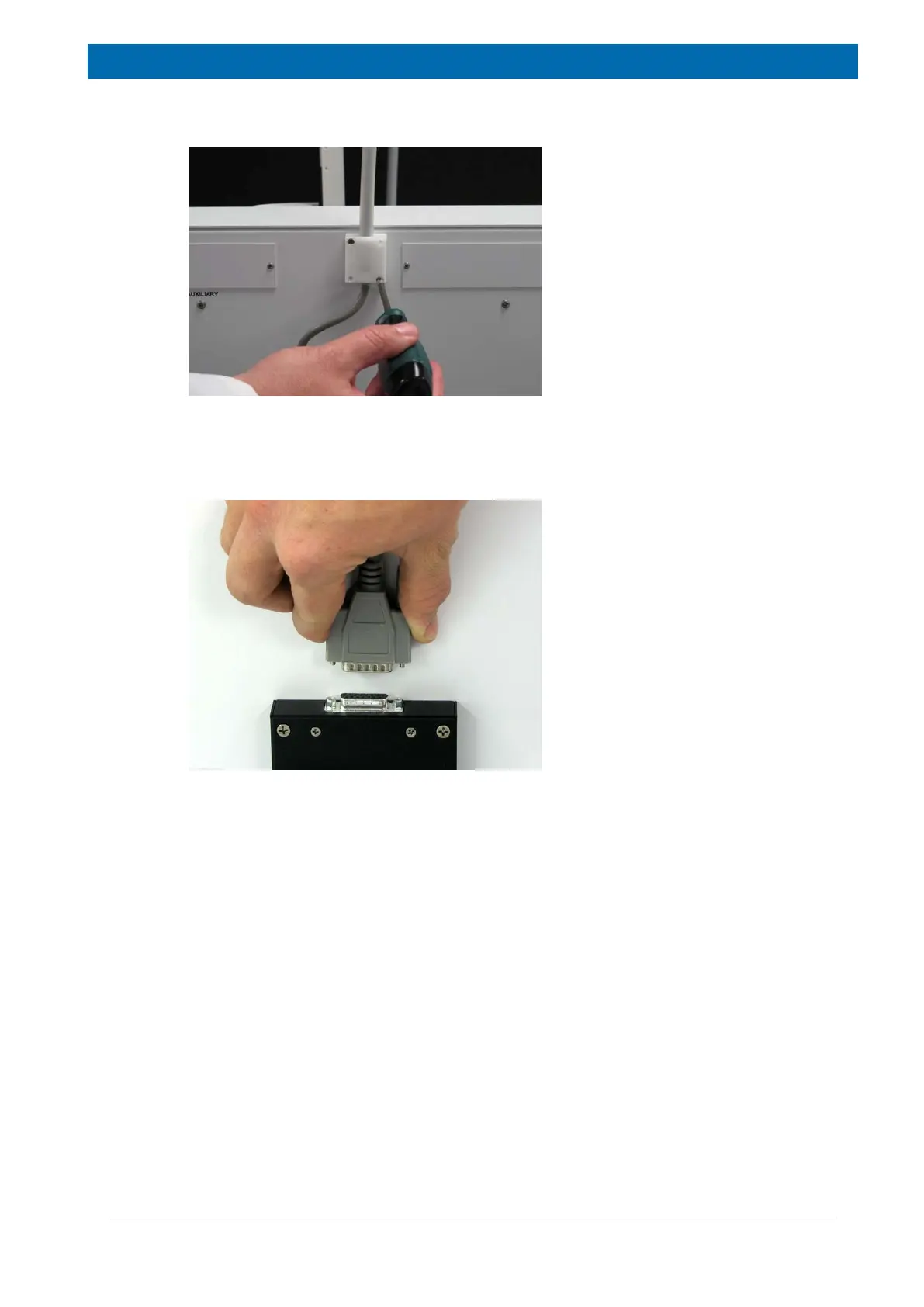

Figure10.4: Attaching the Z-Drive Strain Relief Block
• Plug the cable into the 15-pin connection port on the rear of the sample changer, and
tighten the screws.
Figure10.5: Connecting the Z-Drive Cable
