Installation
26 H148850_3_003
6.4.1 Without the Safety Barrier
• Decide whether to mount the button on the left or right side of the instrument.
• Use the two included screws to attach the bracket to the side of the base.

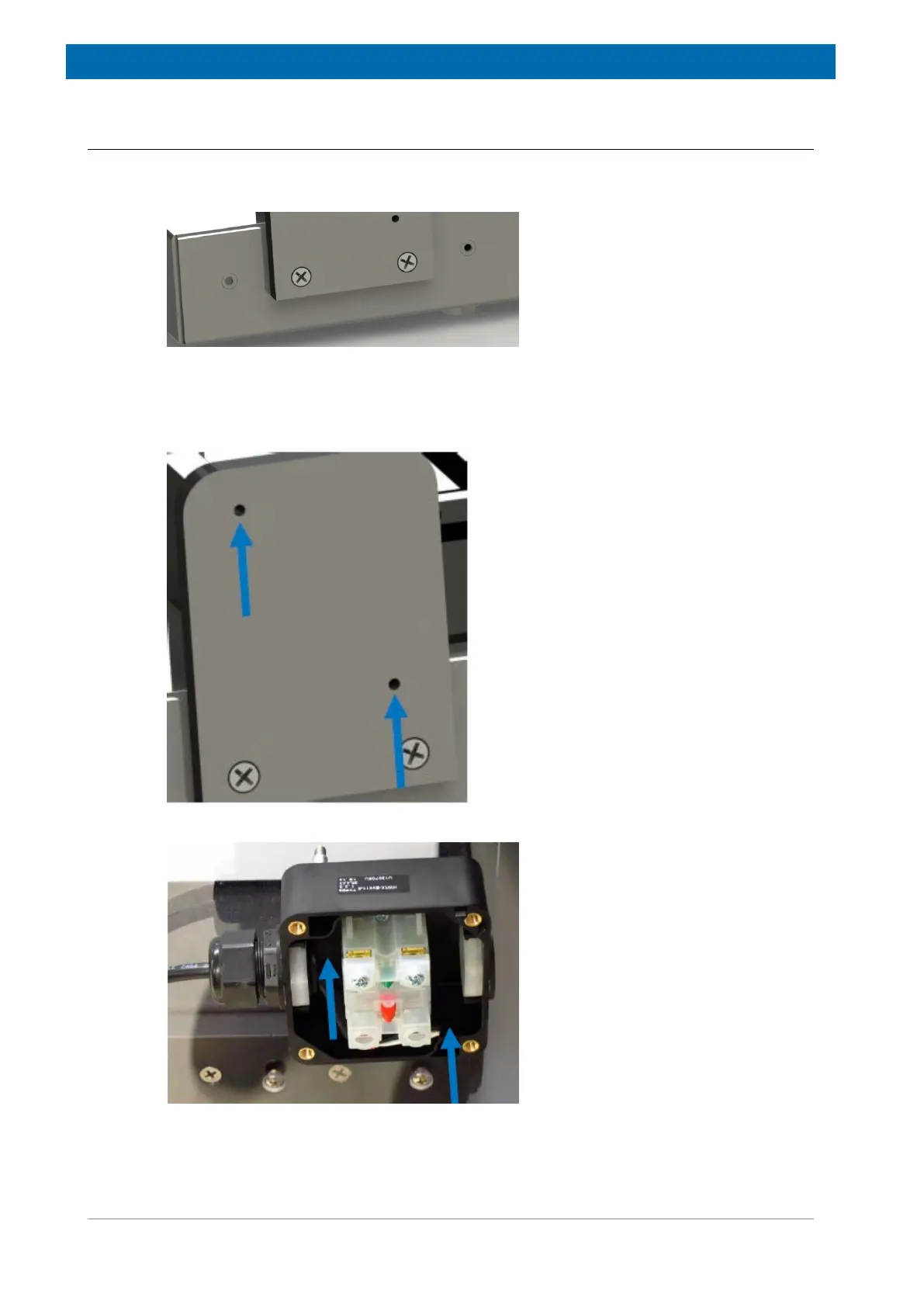

Figure6.2: E-Stop Shown on Left Side of the Base
• Open the button enclosure.
• Insert the two mounting screws through the back of the button and through the holes in
the bracket.
Figure6.3: Location of Holes in the Bracket
Figure6.4: Location of Mounting Screws
