VÅNTEC-1 Detector User Manual
Alignment
M88-E01072
8 - 5
4.
Revie
w
the data display
ed in T
oolbox
(see
Figure 8.4).
Alignment is complete when
FWHM matches the specifications
in T
abl
e
8.2.

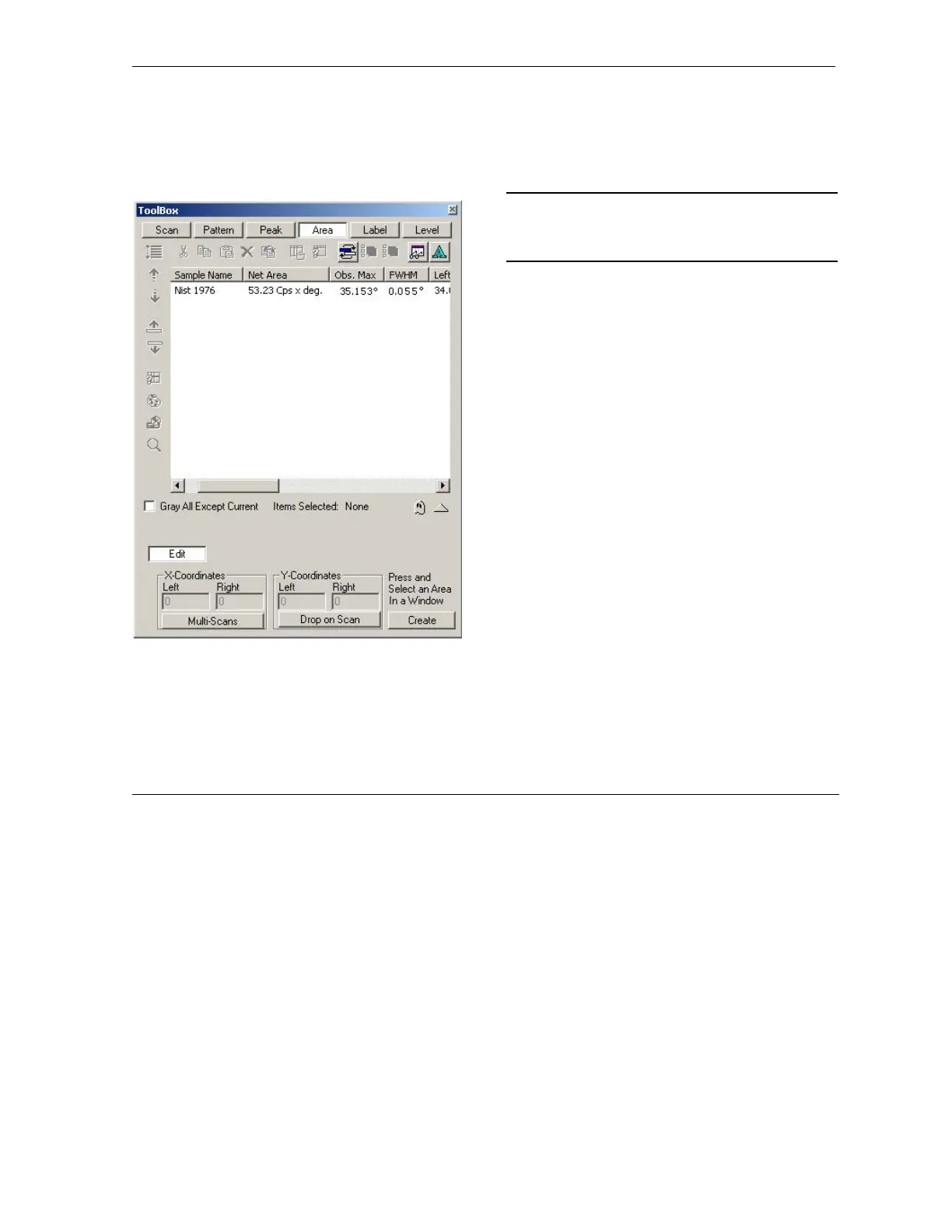

Figure 8.4 - EV
A toolbox
5.
After completing the a
lignment of the moun
t,
repeat the calibration desc
ribe
d in Section
7.
NO
TE
: The primar
y
installation an
d IQ OQ PQ
(par
t number M88-Exx0
68) ma
y require addi-
tional testing instrument v
er
ification.
100
102
Table of Contents
Default Chapter
5
Table of Contents
5
1 Safety Issues
9
Qualified Personnel
10
Correct Usage
10
X-Ray Equipment
10
Hazardous Materials
12
Proper Lifting
12
2 Introduction
13
3 System Description
15
The Detector
16
Detector Cables and Connectors
16
Environmental Ratings
19
The Detector Controller
19
Identifying Integrated and External FDC Configurations
19
The External Fast Diffraction Controller (FDC)
24
Detector Optics
26
Beam Stop
28
Air Scatter Screen
29
Radial Soller Slit
30
Counterbalance
32
4 Hardware Installation for the D8 ADVANCE
36
Shipping and Unpacking
36
Baseline Data
36
Hardware Installation (for Detector Controllers with an External FDC)
37
Mount the Rails
38
Install the Controllers
39
Connect the Cable Wiring
40
Connect the Power Supply
42
Hardware Installation (for Detector Controllers with an Integrated FDC)
42
Mount the Rails
42
Connections and Cable Wiring
43
Install the Network Card
45
Installation of the Detector Controller Using Second-Generation Indexer Boards (AIB2G)
46
Requirements
46
Connection and Cable Wiring
47
Hardware Installation
48
Software Configuration
50
Automated Installation for AIB2G
50
Manual Installation for Theta-Theta Configuration
51
Manual Installation for Theta-2Theta Configuration
53
Optic Components
55
Mount the Detector Head to the 2-Theta Axis
55
Mount and Align the Beam Stop
58
Mount and Align the Air Scatter Screen
60
Mount and Align the Radial Soller Slit
65
5 Hardware Installation for the D4 ENDEAVOR
68
Shipping and Unpacking
68
Baseline Data
68
Hardware Installation
69
Mount the Rails and Detector
69
Install the Primary Beam Stop
72
6 Software Configuration
77
Recommendations
77
Configuration of the Second Network Adapter "LAN 2" in the PC
78
Detector Software Configuration
80
Software Configuration
81
Network Configuration
83
Computer Port Configuration
85
For Detector Controllers with External FDC
85
For Detector Controllers with Integrated FDC
85
Set up Communication Parameters (both FDC Types)
86
Factory Default Settings
87
7 Calibration
89
Positional Calibration
89
PSD Calibration
91
Create Files
91
Collect Data
93
Analyze Data
94
8 Alignment
97
Alignment of the VÅNTEC-1 Detector and Mount
97
Evaluation and Data Interpretation
100
9 Basic Operation
103
VÅNTEC-1 Power-Up Procedure
103
VÅNTEC-1 Power-Down Procedure
104
Emergency Power-Down Procedure
105
Disconnecting the Power Plug
106
Lock out
106
Performing a Measurement
107
Select the Detector Type
107
Select the Scan Parameters
108
Suppression of Kb
109
Secondary Optics Settings
110
Execute an Immediate Measurement
110
Calculate the Optimum Secondary Slit Openings
110
10 Preventive Maintenance and Troubleshooting
113
Cleaning the Diffraction System and Measuring Equipment
114
Replacing Fuses
115
Troubleshooting
116
Manual Configuration of the Controller
118
Appendix A. Configuration Tables
119
Appendix B. Spare Parts List
123
Appendix C. Updating the Detector Controller Firmware
129
Setting up the HTTP Connection
129
Performing the Flash Disk Installation
132
Updating the FPGA Firmware
134
Appendix D. EC Declaration of Conformity
137
Index
139
4
