Hardware Installation for the D8 ADVANCE VÅNTEC-1 Detector User Manual
4 - 20 M88-E01072
5. Check the settings for “2Theta”. The param-
eters for “Sources for AxisOUT” have to
look like Figure 4.19.
NOTE: Do not worry about the fact that the set-
tings for “2Theta” show no settings for “Register”
and “Bit”.

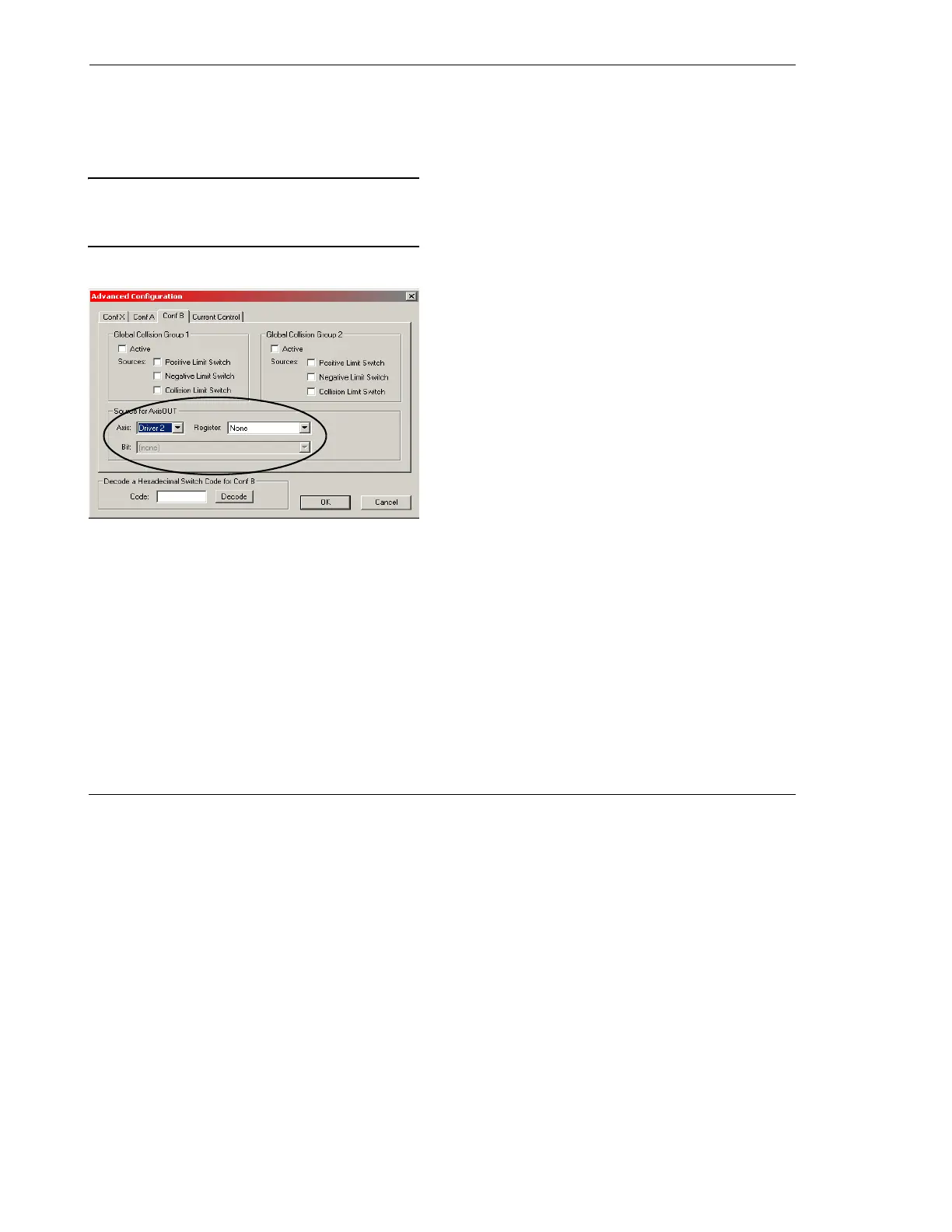

Figure 4.19 - Motorized Drives section – 2Theta – Advanced
Configuration
6. Save and download the configuration.
