T419S Indicator Service Manual 121

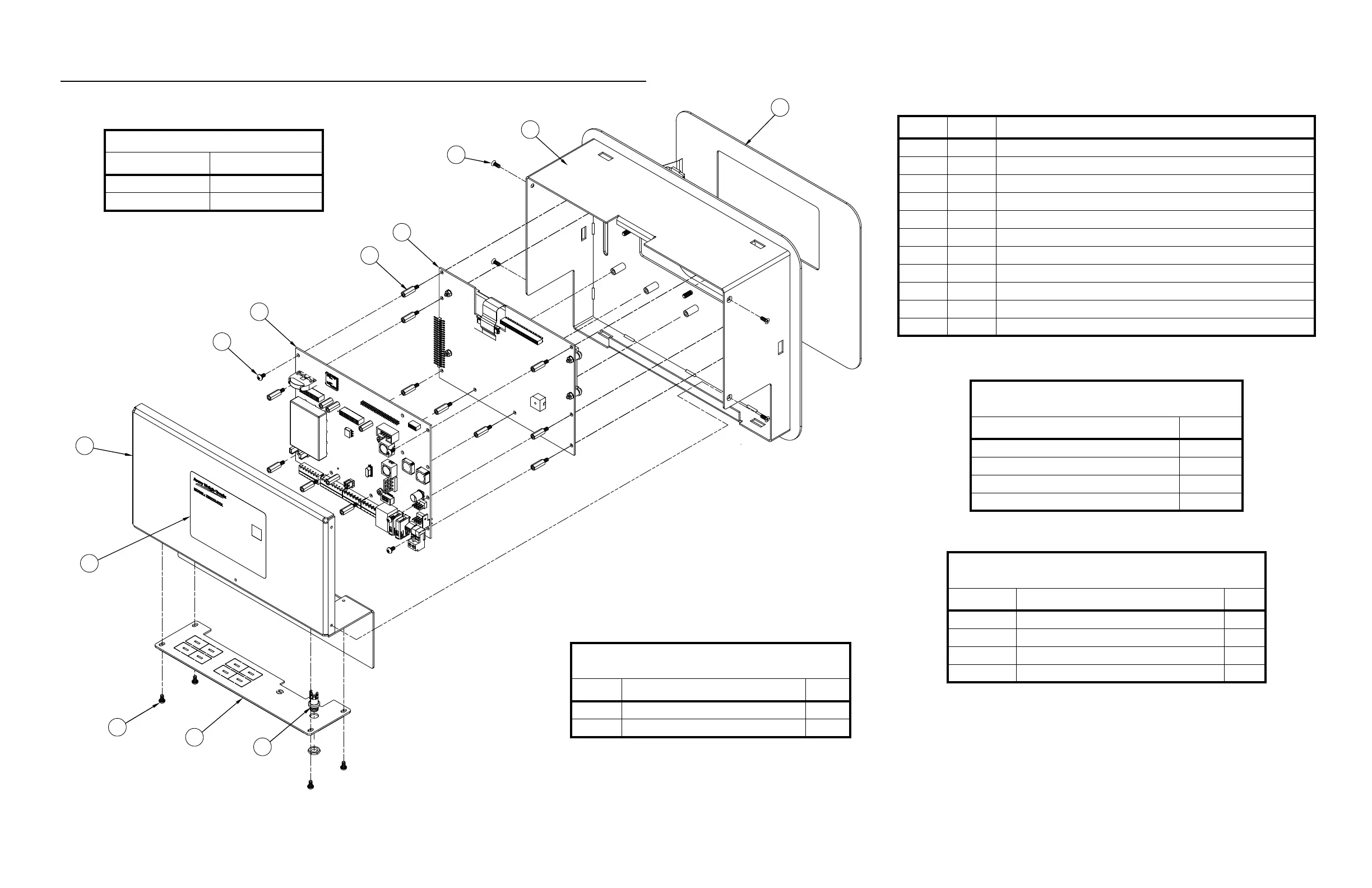

13.3 Panel mount exploded drawing

Panel Mount kits

Item No. Qty. Description

1 1 OVERLAY,KEYPAD

2 1 BACKER PLATE/COVER WELDMENT

3 1 PCB ASSY DSPL/KYPD INTFC LG

4 1 PCB ASSY, MAIN

5 1 COVER, REAR-PANEL MOUNT

6 1 PLATE, COVER PCB-PANEL MOUNT

7 1 CABLE, ASSY, POWER ALLOY

8 8 SCREW, MACH PH M3x0.5 6MML SST

9 1 LABEL, BLANK

10 16 STANDOFF, HEX M3 x 0.5mm x 14mm M/F SST

11 4 SCREW, FLAT HEAD, M3x8MM

AWT05-509169

KIT, PANEL MOUNT BRACKET/BLOCKS

Description QTY.

BLOCK, TENSION 6

GASKET,MODEL T419S PANEL MOUNT 1

PLATE, BASE TORQUE, PM MODEL T419S 1

SCREW, M6X1 45MM LG SST P/PH 6

AWT05-508959

KIT, COVER, REAR PANEL MOUNT T419S

Item No. Description QTY.

5 COVER, REAR-PANEL MOUNT 1

9 DECAL, T419S REAR PLATE, PNL MNT 1

6 PLATE, COVER, PCB, PANEL MOUNT 1

8 SCREW, MACH PH M3X0.5 6MML SST 4

Fastener Torque Values

Fasteners Torque lb-in (N-m)

Items 8, 10, 11 (M3) 3.5 (0.40)

Item 12 (M4) 10 (1.13)

AWT05-509309

KIT, ENCL & OVERLAY, T419S PANEL MOUNT

Item No. Description QTY.

2 BACKER PLATE/COVER WELDMENT 1

1 OVERLAY KEYPAD MODEL T419S 1
