2.1 Front Panel Keys
2.1 Front Panel Keys

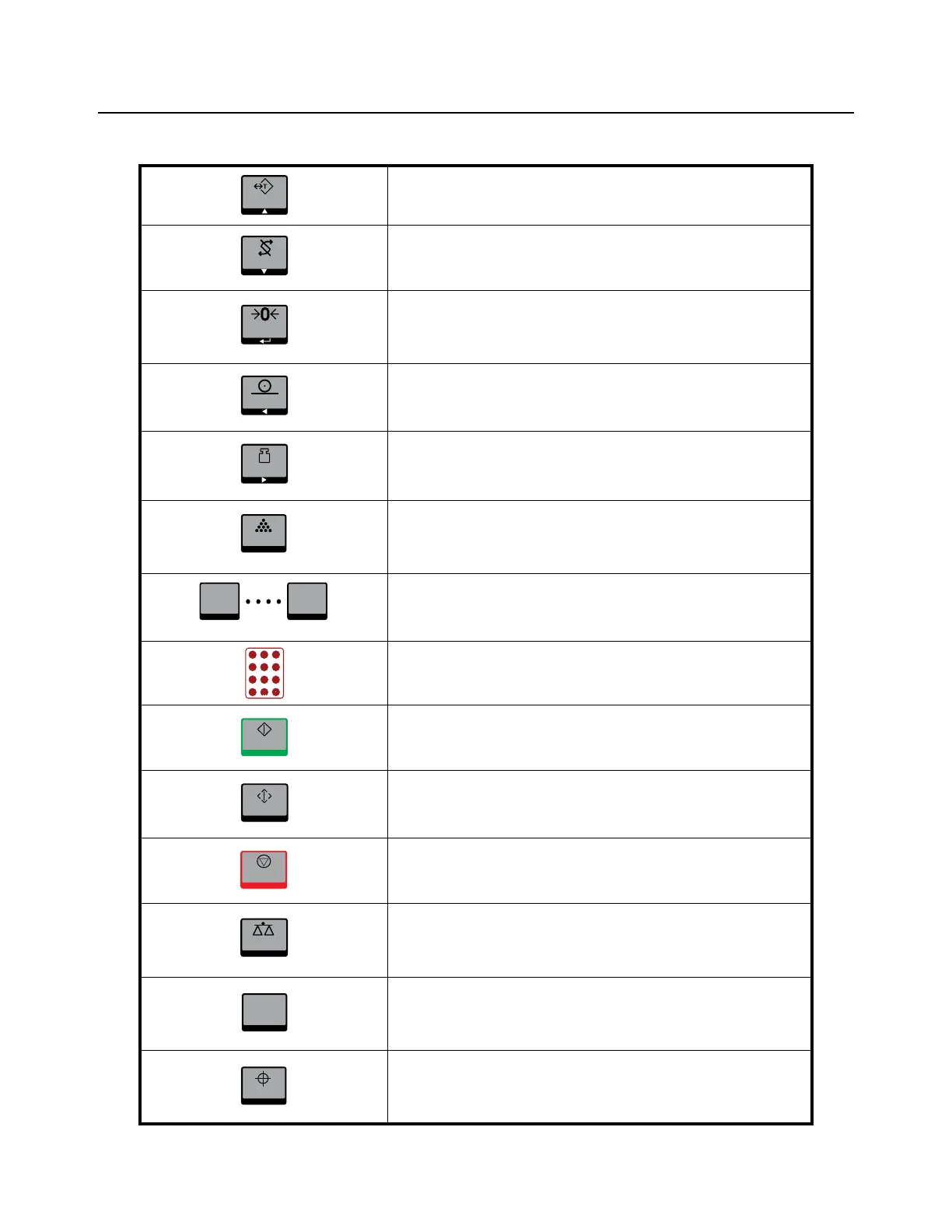

The key functions for the T419S are listed below.
Press the TARE key to perform a pushbutton tare function.
Acts as an up arrow key for menu navigation.
Press the SELECT key to toggle between the active display values.
Acts as a down arrow key for menu navigation.
Press the ZERO key to zero the display.
Acts as an ENTER key to accept a displayed value or function.
Press the PRINT key to send information to a peripheral device through a
configured communications port.
Acts as a left arrow key for menu navigation.
Press the UNITS key to scroll through the available units of measure while
in normal operating mode.
Acts as a right arrow key for menu navigation.
The SAMPLE key can be used to perform custom application functions.
Use the F1 through F5 keys as defined by the label above each one on
the display. The functions change according to program need.
Use the alphanumeric keypad for entering text or numbers.
Press the START key to start a process defined by the active program.
The SETUP key can be used to perform custom application functions. It
can also be used to view the password entry screen for menu access.
Press the STOP key to stop a process defined by the active program.
If enabled by the program, press the SCALE key to switch between active
scales. Also acts as an ESCAPE key when in an entry function or in the
menus.
The ID key can be used to perform custom application functions.
The TARGET key can be used to perform custom application functions.
