76 T419S Indicator Service Manual
8 Option cards
8.5 DeviceNet
TM
option card
Figure 8.5 shows the DeviceNet option card. This provides DeviceNet connections.
See Options on page 57 for information on configuring the indicator and this card.

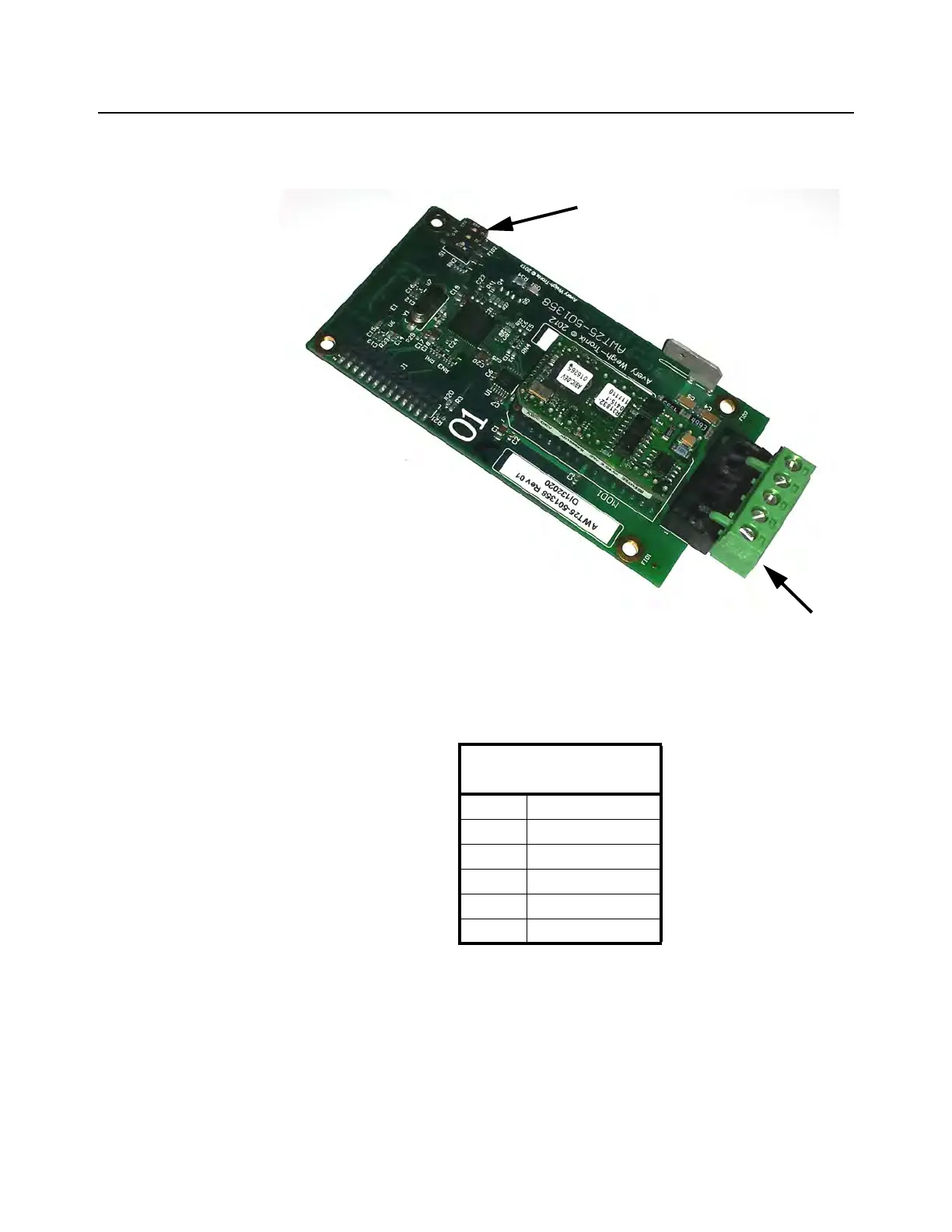

Figure 8.6 DeviceNet option card
TB1 Pinout
*An external power supply will
be used to supply V+ power.
Typically this supply will be
previously installed.
DeviceNet Pluggable
Connector TB1
Pin No. Signal
1 V- (Bus power GND)
2 CAN_LOW
3 Shield
4CAN_HI
5 V+ (+24VDC)*
See Switch S1 settings on
page 72
Pin 1
