ENGLISH
INSTALLATION

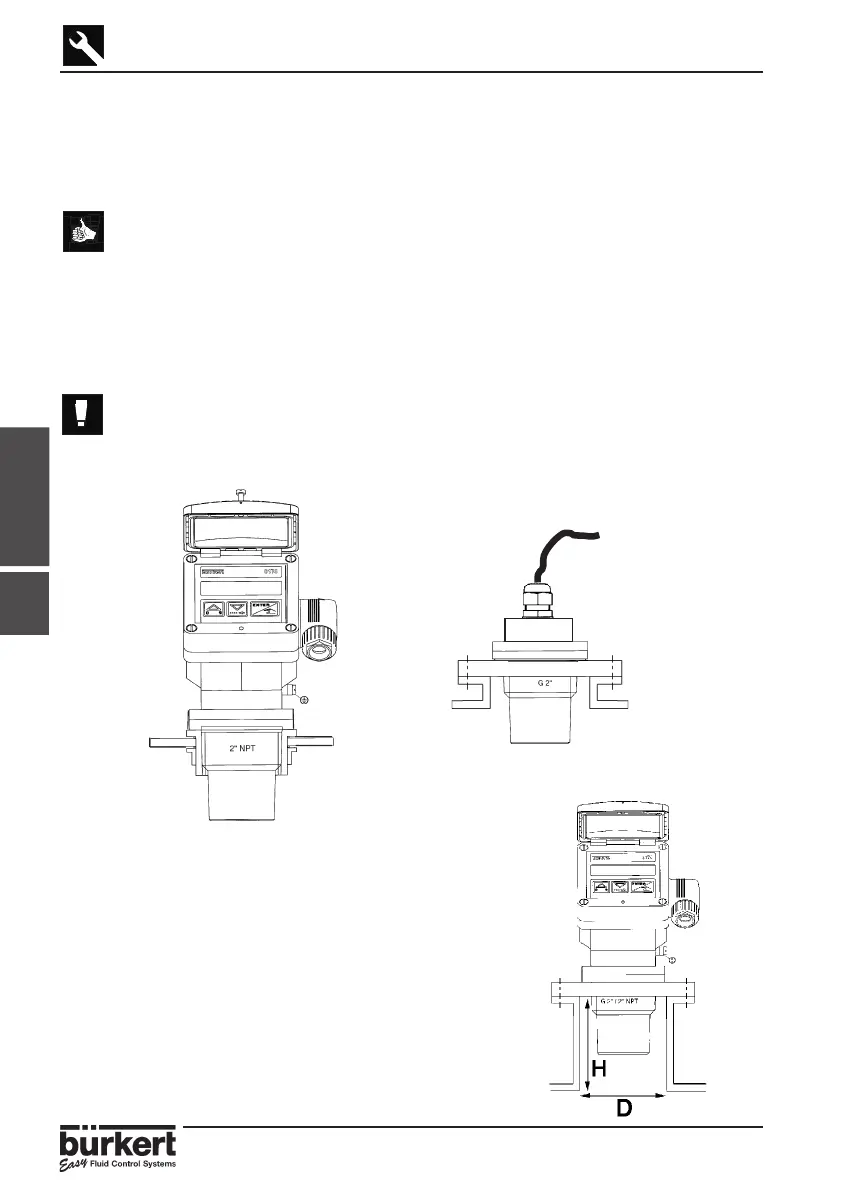

3.2 INSTALLATION
The ultrasonic transmitter or sensor may be installed through the tank top via a
standard G 2“ (NPT) fitting or equivalent tapped flange according to the type of level
transmitter.
Steps for successful installation:
● Before installation of the transmitter or sensor ensure that the fitting has
been tested for leaks and the threads are not damaged or worn. If a
damaged fitting is evident a new fitting should be installed.
● When installing the transmitter or sensor ensure that a proper seal is
obtained between the fitting and transmitter via the use of an appropriate
sealant or gasket.
● When securing the transmitter or sensor to the fitting, only
tighten by hand!
● Be careful not to overtighten the transmitter in the fitting.
Shaft mounting
If the transmitter or sensor 8175 is installed on a shaft, it
must not be higher than 400 mm for a diameter of 100 mm,
or 250 mm for a diameter of 80 mm.
3.2
