Burkert 8175 - 4.5.1 OFFSET COMPENSATION; 4.5.2 SPAN COMPENSATION

48
8175
ENGLISH
TEST MENU
0......9
ENTER
ENTER

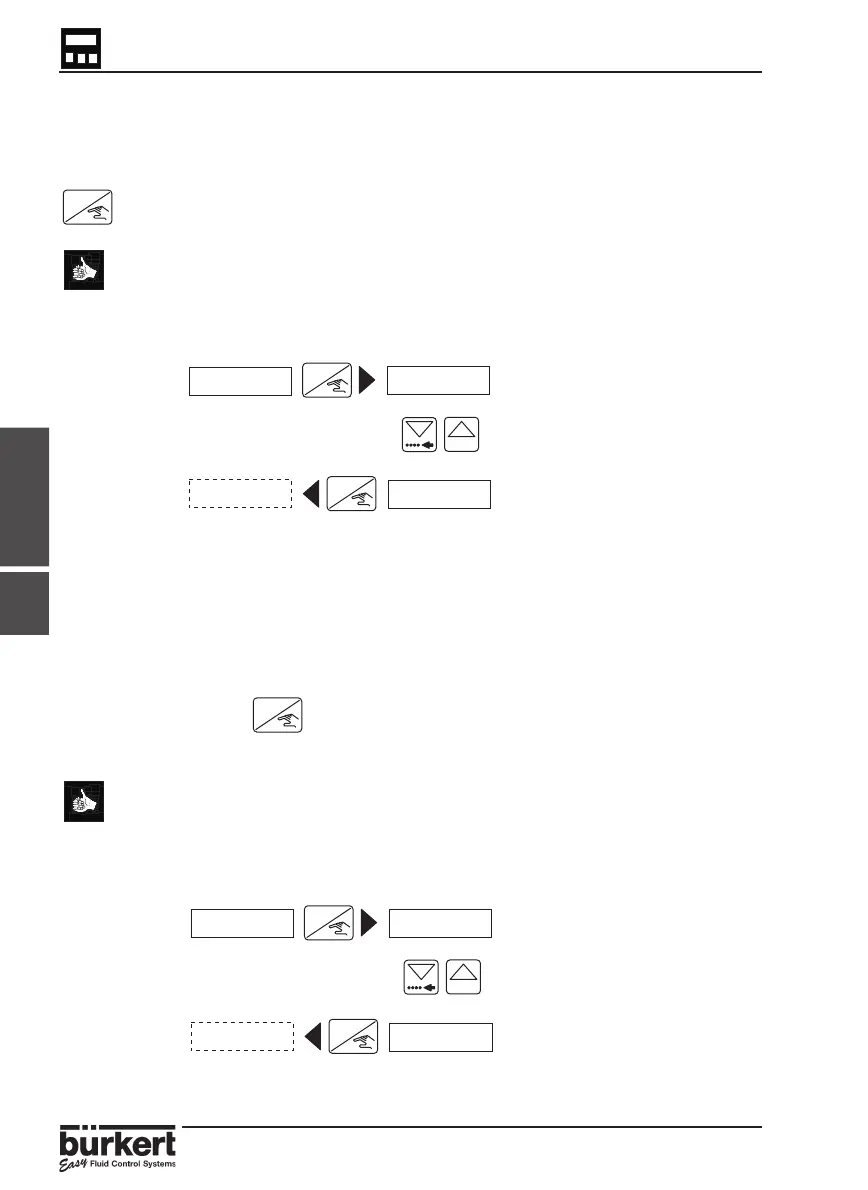

4.5.1 OFFSET COMPENSATION
Within this option the user has the possibility of correcting the basic setting of 4 mA
generated by the transmitter. The transmitter generates a value of 4mA by pressing
when "OFFSET" is displayed within the main test menu.
Measure the generated current with an ammeter. If the displayed value is
incorrect it can be corrected by entering the measured value on the ammeter.
4.5.2 SPAN COMPENSATION
Span compensation provides the option of changing the basic setting of 20 mA. The
procedure is identical to that of the offset compensation above. The transmitter
generates 20mA if the key is pressed when "SPAN " is displayed within the main
test menu.
Measure the generated current with an ammeter. If the displayed value is
incorrect it can be corrected by entering the measured value on the ammeter.
Enter the measured value
Enter the measured value
SP = 19.96
T° ADJUST
SPAN SP = 20.00
ENTER
ENTER
0......9
ENTER
ENTER
OF = 04.02
SPAN
OFFSET
OF = 04.00
4.5.1
