29
8175
ENGLISH
CALIBRATION MENU
4.4.3 FILTER FUNCTION
The filter function provides a damping effect to prevent fluctuations within the output
current and display. There are 10 levels of filtering available from 0 to 9 with 0 and 3
having no damping effect.
Echo Filtering:
The type of filter chosen will also affect the availability of the echo filtering
function, as if filter 0,1 or 2 is chosen the option will not be available.
● If no echo filtering is chosen, it is advised to select filter 0 during the
Teach-In calibration and after select the desired filter for the
application.
● If echo filtering is necessary, set the transmitter to filter 3 during
calibration in order to access this menu and after select the desired filter
for the application.
Depending on the filter chosen there will be a maximum speed change for
the recalculation of the level. This can be seen in the diagram below and
the maximum speed change times are displayed in the following table.
Choose the filter with a maximum speed change superior to that of your
process.

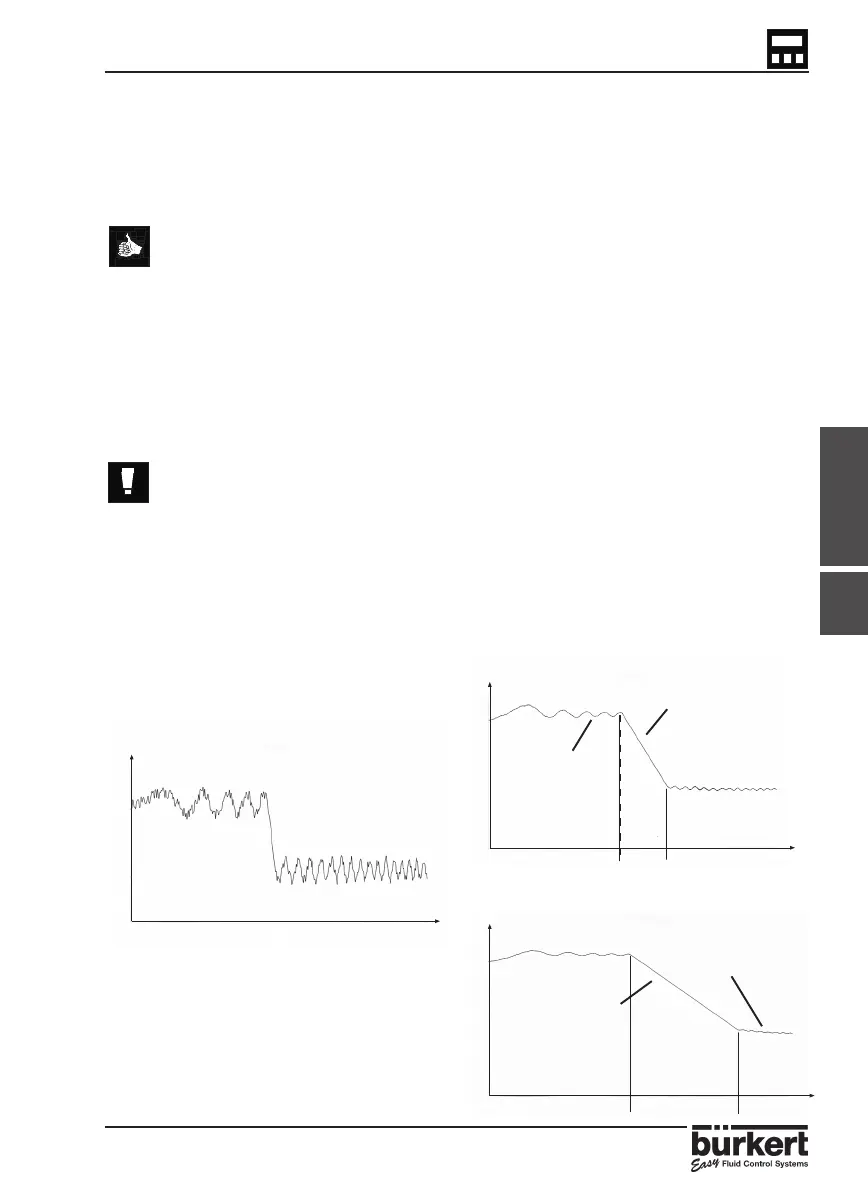

The diagrams below display the relationship between the actual signal and the level of
filtering.
Filters 6 and 2
Max. Speed
Filters 0 and 3 change
Damping
Filter 9
Damping
Max. Speed change
4.4.3
