To access the CALIBRATION MENU simutaneously press for 5 seconds.
● The ‘Enter‘ key can be locked to avoid accidental or unauthorised
access - section 3.3.
● Reference can additionally be made to the menu guide - section 4.2.
`

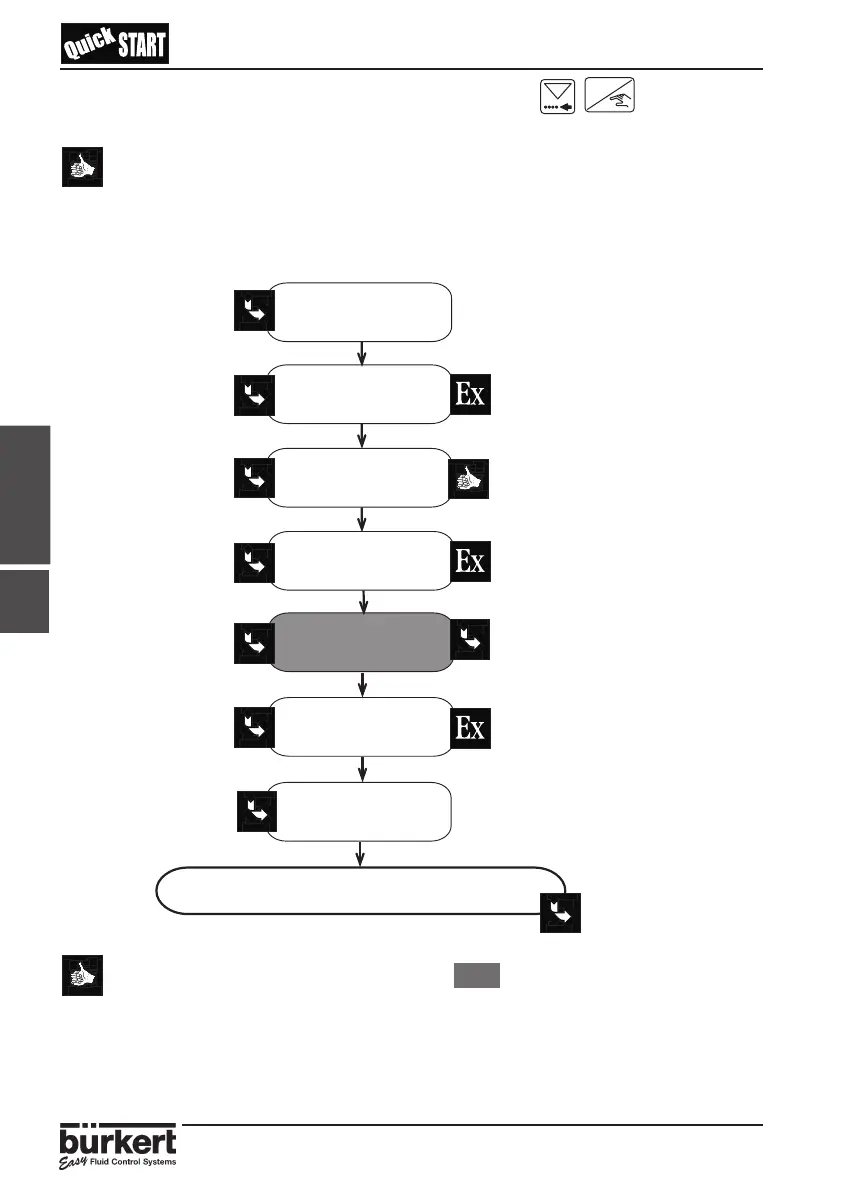

2.2.2 PROGRAMMING - LEVEL
The actions which are highlighted in grey must be fully completed for
accurate measurement.
Select level and the units
required with 2 decimal points.
Choose filters 0-2 if no echo
filtering of obstructing obstacles
is required and filters 3-9 if echo
filtering is required.
331.4 m/s within the air with a
deviation of 0.59m/s/°C.
To determine new reference
points.
4mA -> 0.00 m
20mA -> 8.50 m
ENTER
Choose the
desired language
Select the desired
units
Select the desired
filter
Enter the
Sound velocity
Perform a Teach-In
procedure
Enter the current
output range
Configure relays
1 & 2 ( if available )
See section 4.4.1
See section 4.4.2
See section 4.4.3
See section 4.4.4
See section 4.4.6
See section 4.4.7
See section 4.4.8
Measurement or Simulation (optional)
See section 2.3
